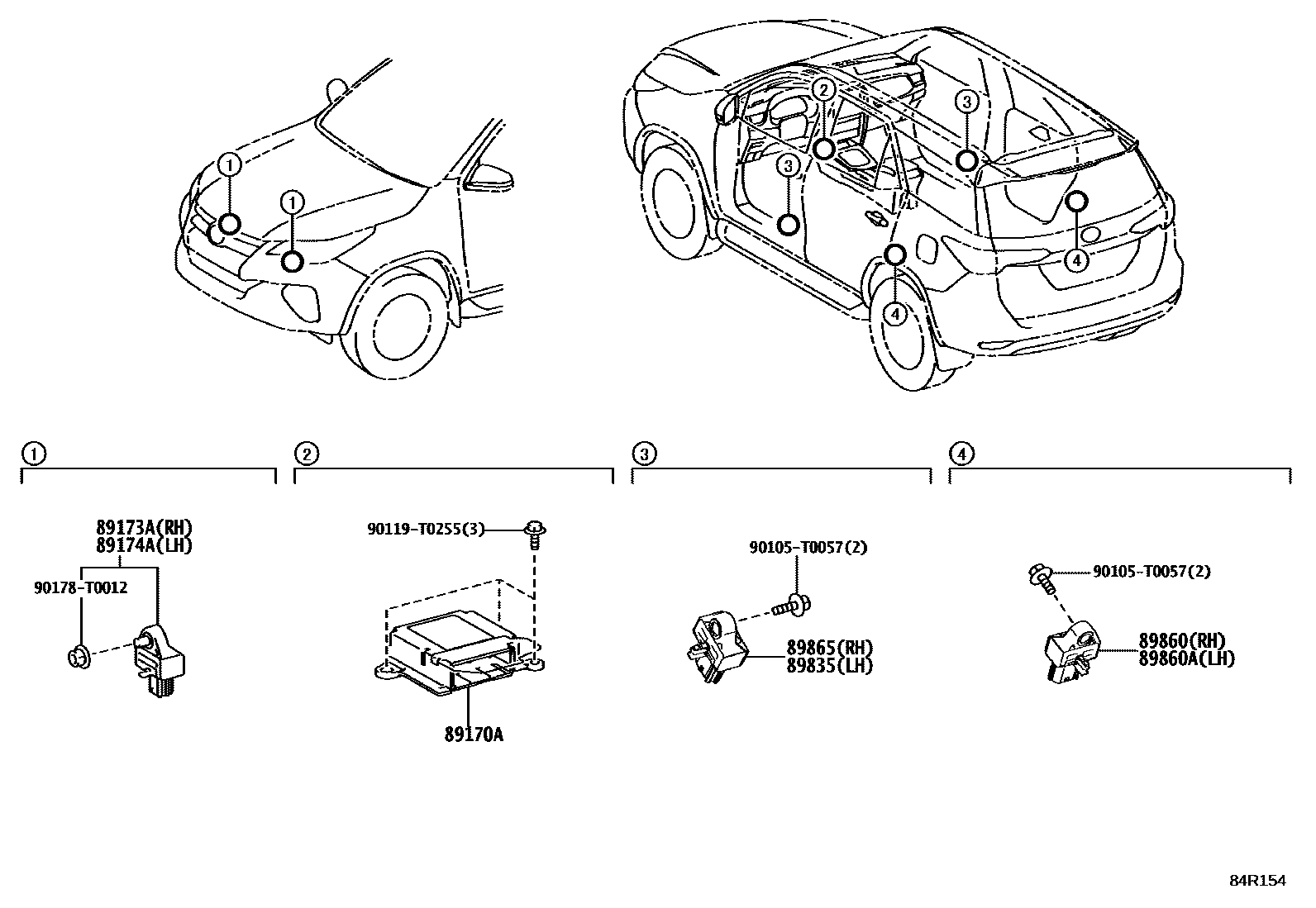

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0KF30iTGN156..L202308-202407

main89170-0KF40iGUN156,TGN156..6FC202308-202407

main89170-0K630iTGN156..S202308-202401

AZERBAIJAN SPEC

89173ASENSOR, AIRBAG, FRONT RH

main89173-09B20iGUN156,TGN156202308-202407

TYPE A:REFER ILLUST.

89174ASENSOR, AIRBAG, FRONT LH

main89173-09B20iGUN156,TGN156202308-202407

TYPE A:REFER ILLUST.

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-0K040iGUN156,TGN156..6FC202308-202407

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0K070iGUN156,TGN156..6FC202308-202407

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0K070iGUN156,TGN156..6FC202308-202407

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-0K040iGUN156,TGN156..6FC202308-202407

90105T0057

main90105-T0057

90119T0255

main90119-T0255

90178T0012

main90178-T0012

10 parts on this diagram · 1 diagram in section
