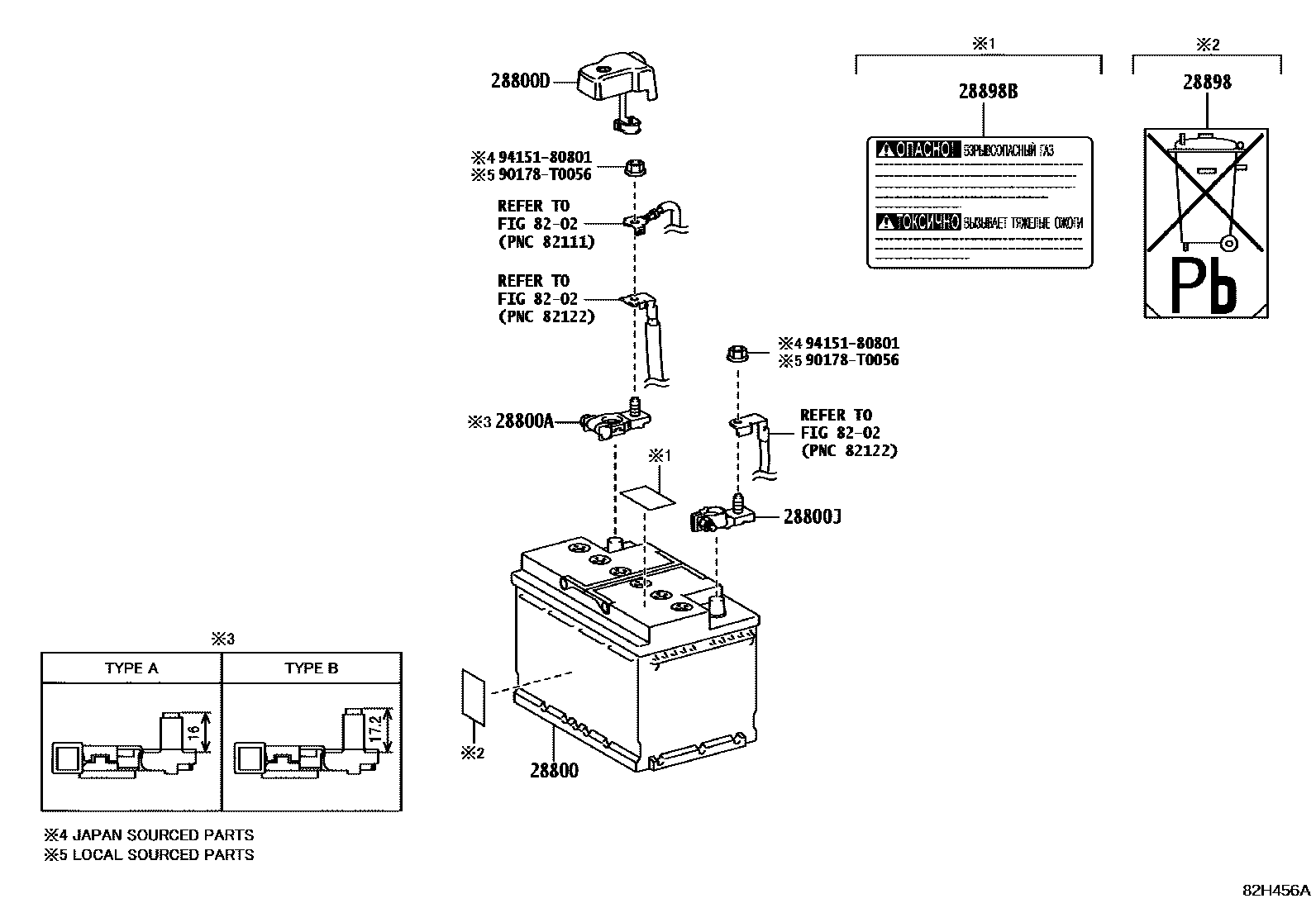

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0L504i2TRFE..TGN156202308-202407

LN3,FURUKAWA

main28800-0L511i1GDFTV..GUN156202308-202407

LN4

main28800-0L571i2TRFE..TGN156202308-202402

LN3,YUASA

main28800-0L572i2TRFE..TGN156202403-202407

LN3,YUASA

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1GDFTV,2TRFE..GUN156,TGN156202308-202407

TYPE A:REFER ILLUST.

main90982-05061i1GDFTV,2TRFE..GUN156,TGN156202308-202407

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i1GDFTV,2TRFE..GUN156,TGN156202308-202407

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GDFTV,2TRFE..GUN156,TGN156202308-202407

28898PLATE, BATTERY

main28898-0L010i1GDFTV,2TRFE..GUN156,TGN156202308-202407

28898BPLATE, BATTERY

main28897-31040i1GDFTV,2TRFE..GUN156,TGN156202308-202407

8202WIRING & CLAMP

→ Go to FIG 82-02

90178T0056

main90178-T0056

9415180801

main94151-80801

9 parts on this diagram · 1 diagram in section
