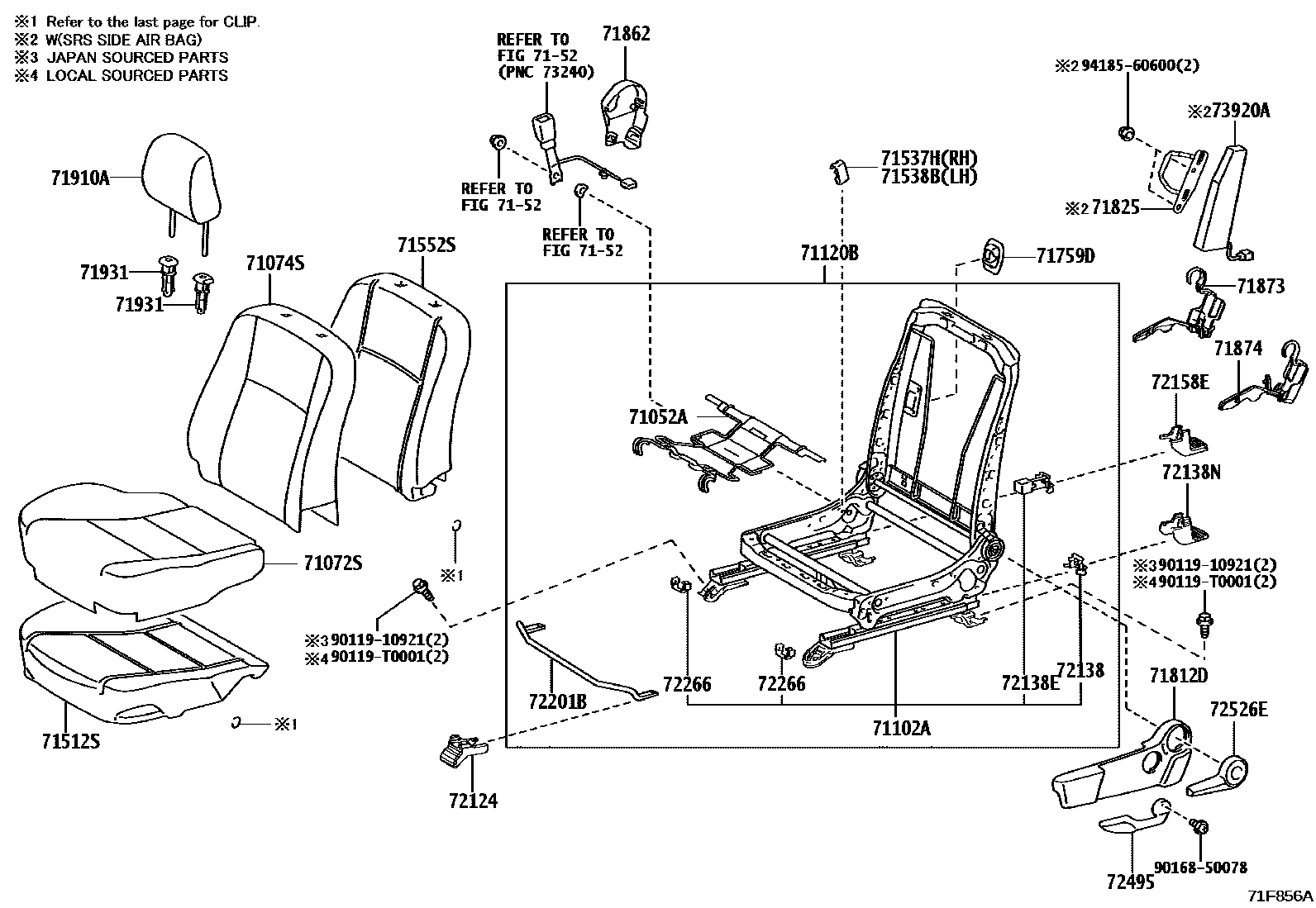

SEAT & SEAT TRACK

0001 1FRONT SEAT(LH MANUAL 6WAY) 0002 1FRONT SEAT(LH POWER 8WAY) 0003 1FRONT SEAT(RH MANUAL 4WAY) 0004 1FRONT SEAT(RH POWER 8WAY) 0005 1REAR NO.1 SEAT(LH) 0006 1REAR NO.1 SEAT(RH) 0007 1REAR NO.2 SEAT(LH) 0008 1REAR NO.2 SEAT(RH) 0009 1SEAT COVER EDGE WIRE & CLIP

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-0K230supersedes 71051-06070iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI)

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-F0C70-C1supersedes 71072-F0C60-C1iTGN156..L202308-202407

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#

main71072-F0C70-E1supersedes 71072-F0C60-E1iTGN156..L202308-202407

SEAT HEATER-WITH(DRIVER & PASSENGER),CAHMOIS,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0KZ50-C1supersedes 71074-0KZ40-C1iTGN156..L202308-202407

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#

main71074-0KZ50-E1supersedes 71074-0KZ40-E1iTGN156..L202308-202407

SEAT HEATER-WITH(DRIVER & PASSENGER),CAHMOIS,TRIM4#

71102ASEAT SUB-ASSY, FRONT LH

main71102-0K030iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI)

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

main71120-0K030iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI)

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0KB10supersedes 71512-0K341iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI)

7152

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-0D400iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI)

main71537-0K150-C0iGUN156..H202308-202407

BLACK,TRIM2#,4#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-0K200-C0iGUN156..H202308-202407

BLACK,TRIM2#,4#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0KJ00iTGN156..L202308-202407

main71552-0KJ10iGUN156,TGN156..6FC202308-202407

71759DHOOK, FRONT SEATBACK, NO.2

main71759-0K070-C0×2iGUN156,TGN156202308-202407

BLACK,TRIM2#,4#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0D650-C1iTGN156..L202308-202407

BLACK,TRIM2#,4#

71825BRACKET, FRONT SEAT SIDE, NO.1 LH

main71162-0K010iGUN156,TGN156..6FC202308-202407

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0D450-C0supersedes 71862-0K250-C0iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-0K210supersedes 71873-06520iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI)

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0K200supersedes 71874-06490iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI)

71910AHEADREST ASSY, FRONT SEAT

main71910-0KN50-C1×2supersedes 71910-0KN70-C2iGUN156..H202308-202407

BLACK/GRAY,TRIM2#

main71910-0KN50-E1×2supersedes 71910-0KN70-E1iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI),CAHMOIS,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-0D140-C1×2iGUN156,TGN156202308-202407

W(LOCK),BLACK,TRIM2#,4#

main71931-0D150-C1×2iGUN156,TGN156202308-202407

W/O(LOCK),BLACK,TRIM2#,4#

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-0K020-C0iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

72138COVER, SEAT TRACK, OUTER LH

main72125-0D120iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI)

72138ECOVER, SEAT TRACK, INNER LH

main72125-06090iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI)

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-0K130-C0iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-0K110-C0iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

72201BHANDLE SUB-ASSY, SEAT TRACK LH

main72211-0K200iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI)

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-06060×2supersedes 72265-0K010iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI)

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-0D100-C0iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

72526EHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0D360-C0iGUN156..H202308-202407

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0K210iGUN156,TGN156..6FC202308-202407

9011910921

main90119-10921

90119T0001

main90119-T0001

9016850078

main90168-50078

9418560600

main94185-60600

32 parts on this diagram · 9 diagrams in section
