LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
69503CYLINDER SET, LOCK
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
69503AKEY, BLANK
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),SMART KEY,INSIDE CUT
69503BKEY, CUT
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),SMART KEY,INSIDE CUT
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89745CBATTERY, TRANSMITTER
CR2032
CR2032,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
89751ACOVER, TRANSMITTER HOUSING
89752ACASE, TRANSMITTER HOUSING
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

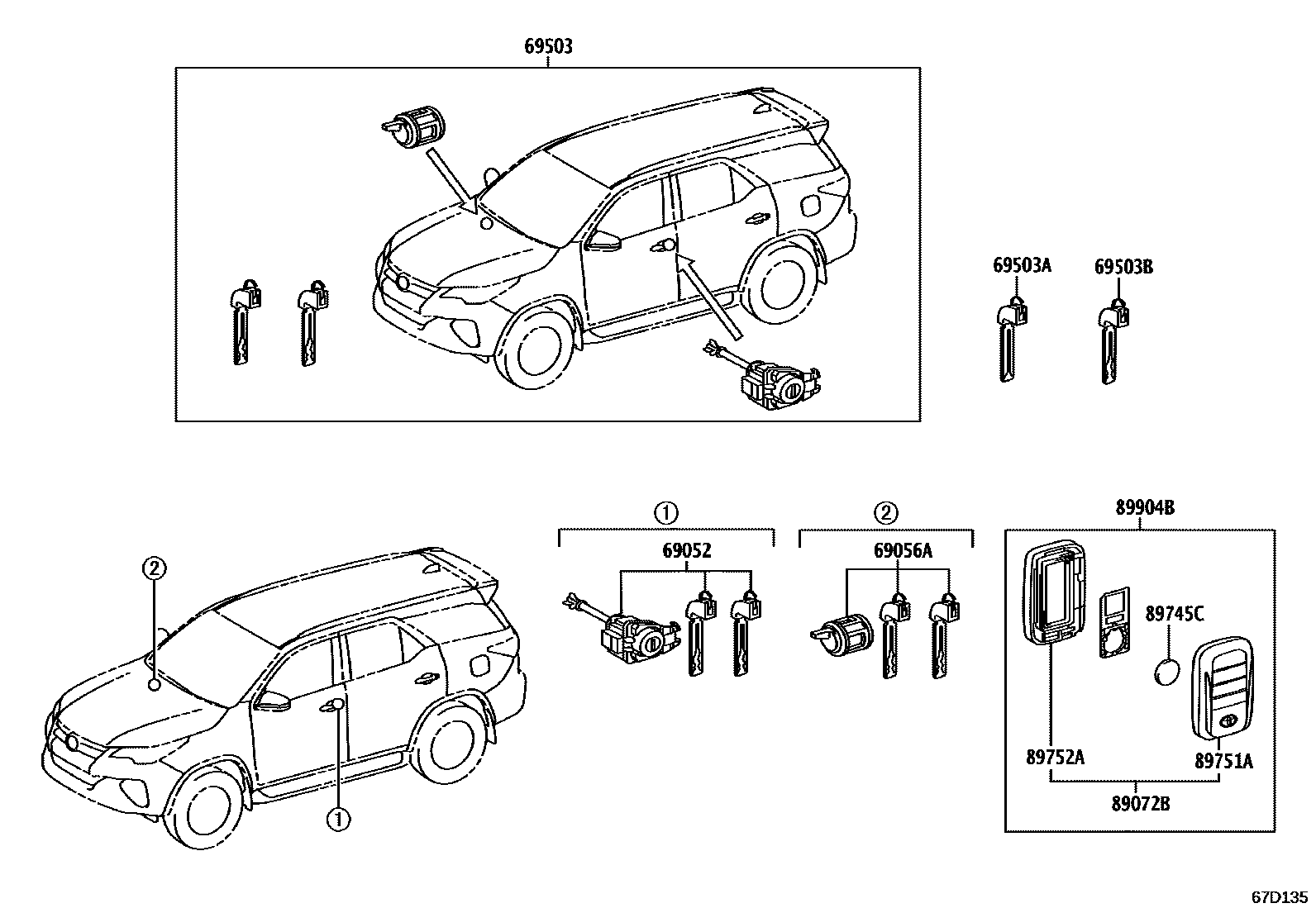

10 parts on this diagram · 2 diagrams in section
