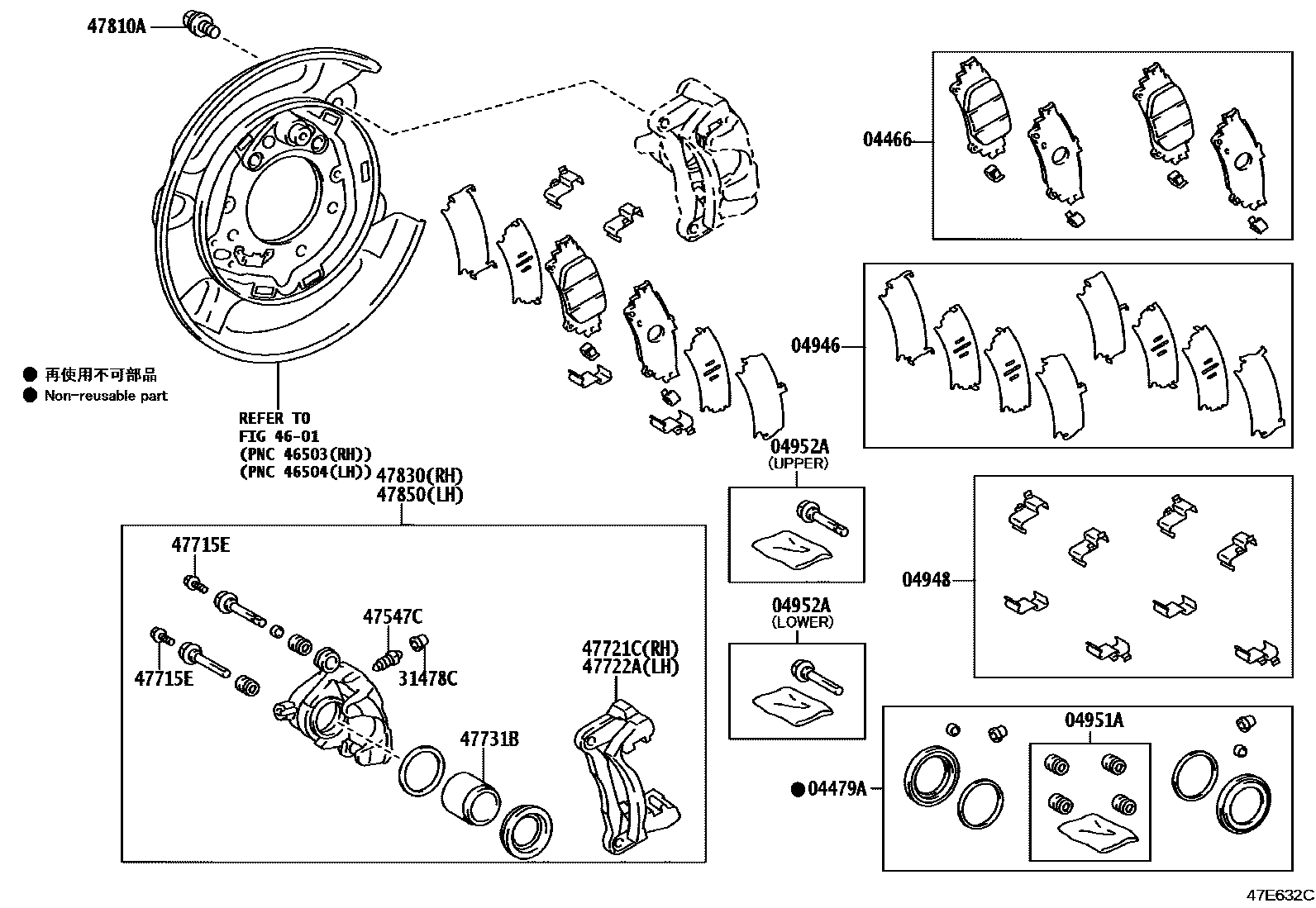

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0K010iGUN156,TGN156202308-202407

MARK AK NS542

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0K020iGUN156,TGN156202308-202407

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0K010iGUN156,TGN156202308-202407

04948FITTING KIT, DISC BRAKE, REAR

main04948-0D010iGUN156,TGN156202308-202407

04951ABUSH KIT, DISC BRAKE, REAR

main04951-0K040iGUN156,TGN156202308-202407

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-0K080×2iGUN156,TGN156202308-202407

LOWER SIDE

main04952-0K090×2iGUN156,TGN156202308-202407

UPPER SIDE

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0D040×2iGUN156,TGN156202308-202407

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030×2iGUN156,TGN156202308-202407

47715EBOLT(FOR REAR DISC BRAKE CYLINDER SLIDE)

main90016-AA603×4iGUN156,TGN156202308-202407

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0K010iGUN156,TGN156202308-202407

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0K010iGUN156,TGN156202308-202407

47731BPISTON, REAR DISC BRAKE

main47831-0K010×2iGUN156,TGN156202308-202407

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-T0495×4iGUN156,TGN156202308-202407

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0K050iGUN156,TGN156202308-202407

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0K050iGUN156,TGN156202308-202407

16 parts on this diagram · 1 diagram in section
