Toyota FORTUNER (SUV) — POWER STEERING TUBE

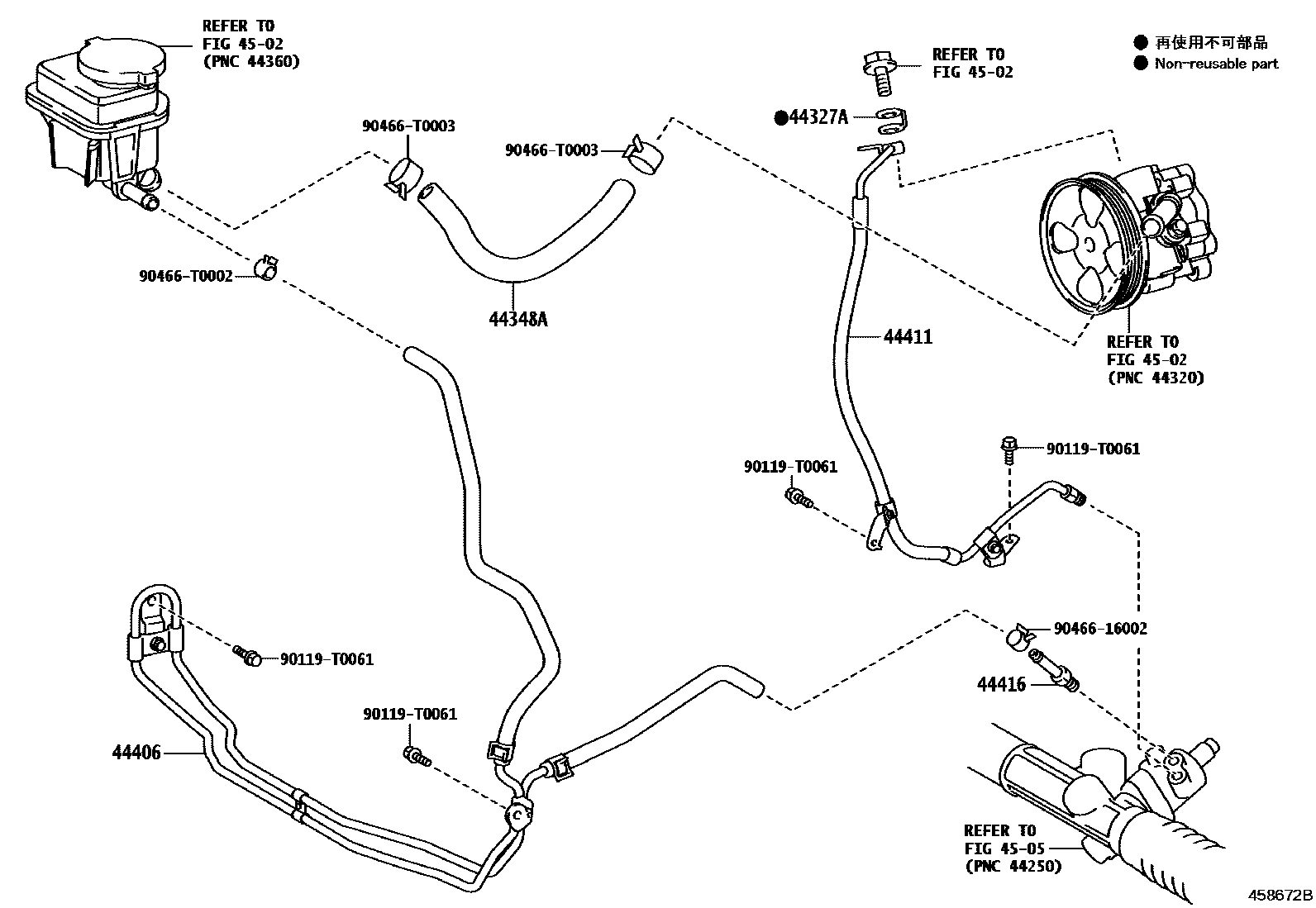

Parts diagram

44327AGASKET, PRESSURE PORT, NO.1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

44406TUBE SUB-ASSY, RETURN

44411HOSE, PRESSURE FEED

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

90119T0061

9046616002

90466T0002

90466T0003

11 parts on this diagram · 2 diagrams in section

POWER STEERING TUBE for Toyota FORTUNER (SUV)

This section contains 13 genuine Toyota parts for the POWER STEERING TUBE system of the Toyota FORTUNER (SUV). Key components include: GASKET, PRESSURE PORT, NO.1, HOSE, OIL RESERVOIR TO PUMP, NO.1, TUBE SUB-ASSY, RETURN, CLAMP(FOR RETURN TUBE), BOLT, UNION(FOR PRESSURE FEED TUBE).
