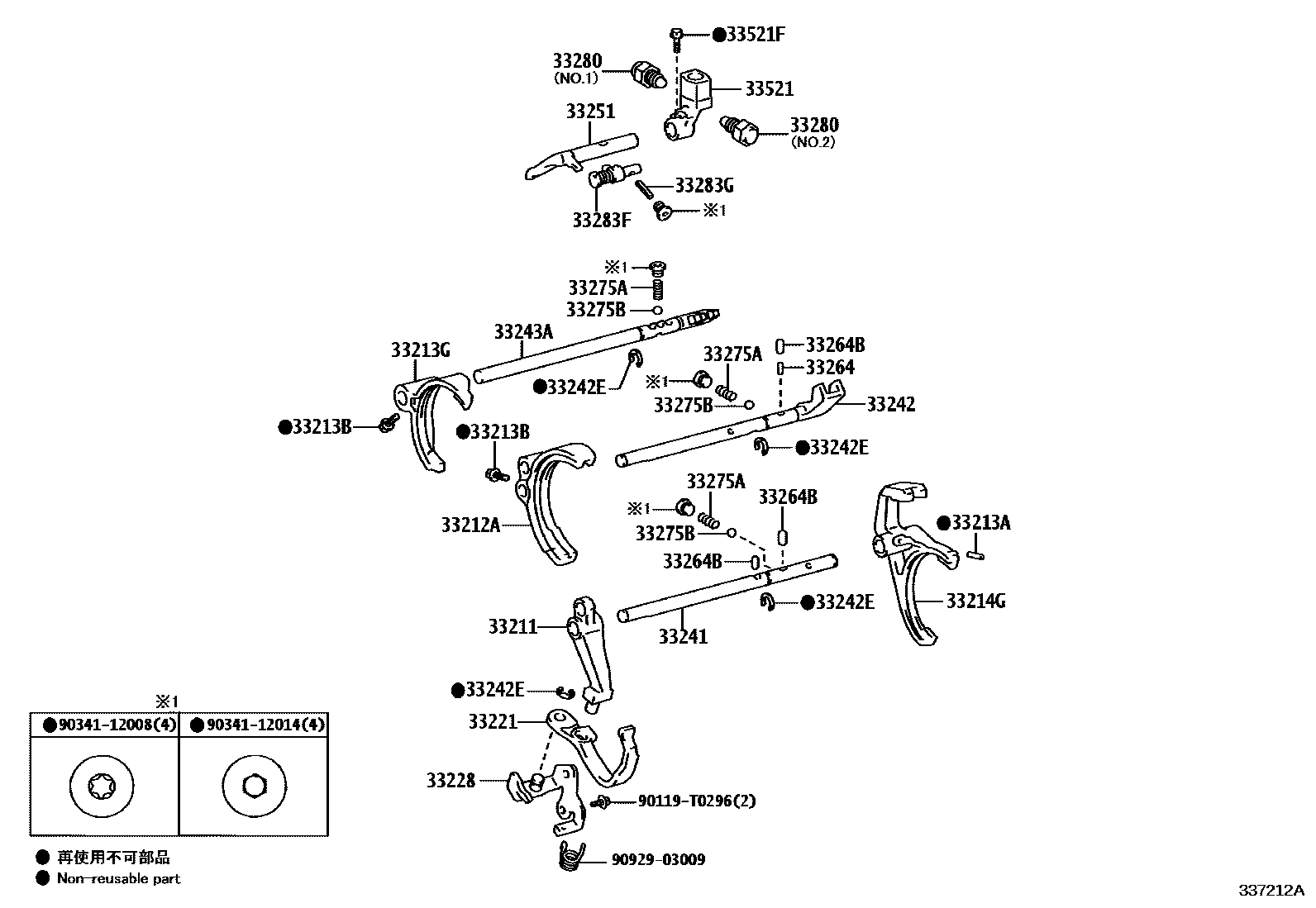

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
TYPE B:REFER 33-01
33212AFORK, GEAR SHIFT, NO.1
TYPE B:REFER 33-01
TYPE B:REFER 33-01
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
TYPE B:REFER 33-01
33213BBOLT(FOR SHIFT FORK SET)
TYPE B:REFER 33-01
33213GFORK, GEAR SHIFT, NO.2
TYPE B:REFER 33-01
33214GFORK, GEAR SHIFT, NO.3
TYPE B:REFER 33-01
33221ARM, REVERSE SHIFT
TYPE B:REFER 33-01
33228BRACKET, REVERSE SHIFT ARM
TYPE B:REFER 33-01
33241SHAFT, REVERSE SHIFT FORK
TYPE B:REFER 33-01
TYPE B:REFER 33-01
33242SHAFT, GEAR SHIFT FORK, NO.1
TYPE B:REFER 33-01
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
TYPE B:REFER 33-01
33243ASHAFT, GEAR SHIFT FORK, NO.2
TYPE B:REFER 33-01
33251LEVER, SHIFT & SELECT
TYPE B:REFER 33-01
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8,TYPE B:REFER 33-01
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=13.7,OD=6,TYPE B:REFER 33-01
L=13.6,OD=9.5,TYPE B:REFER 33-01
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=35.09,TYPE B:SEE 33-01,(J)
L=35.09,TYPE B:SEE 33-01,(L)
33275BBALL, SHAFT DETENT
TYPE B:SEE 33-01,(J)
TYPE B:SEE 33-01,(L)
33280PIN ASSY, REVERSE RESTRICT
T/P B:SEE 33-01,NO.1
T/P B:SEE 33-01,NO.2
33283FPIN, REVERSE RESTRICT
TYPE B:REFER 33-01
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
TYPE B:REFER 33-01
33521HOUSING, SHIFT LEVER
TYPE B:REFER 33-01
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
TYPE B:SEE 33-01,(J)
TYPE B:SEE 33-01,(L)
90119T0296
main90119-T0296
9034112008
main90341-12008
9034112014
main90341-12014
9092903009
main90929-03009
26 parts on this diagram · 1 diagram in section
