TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

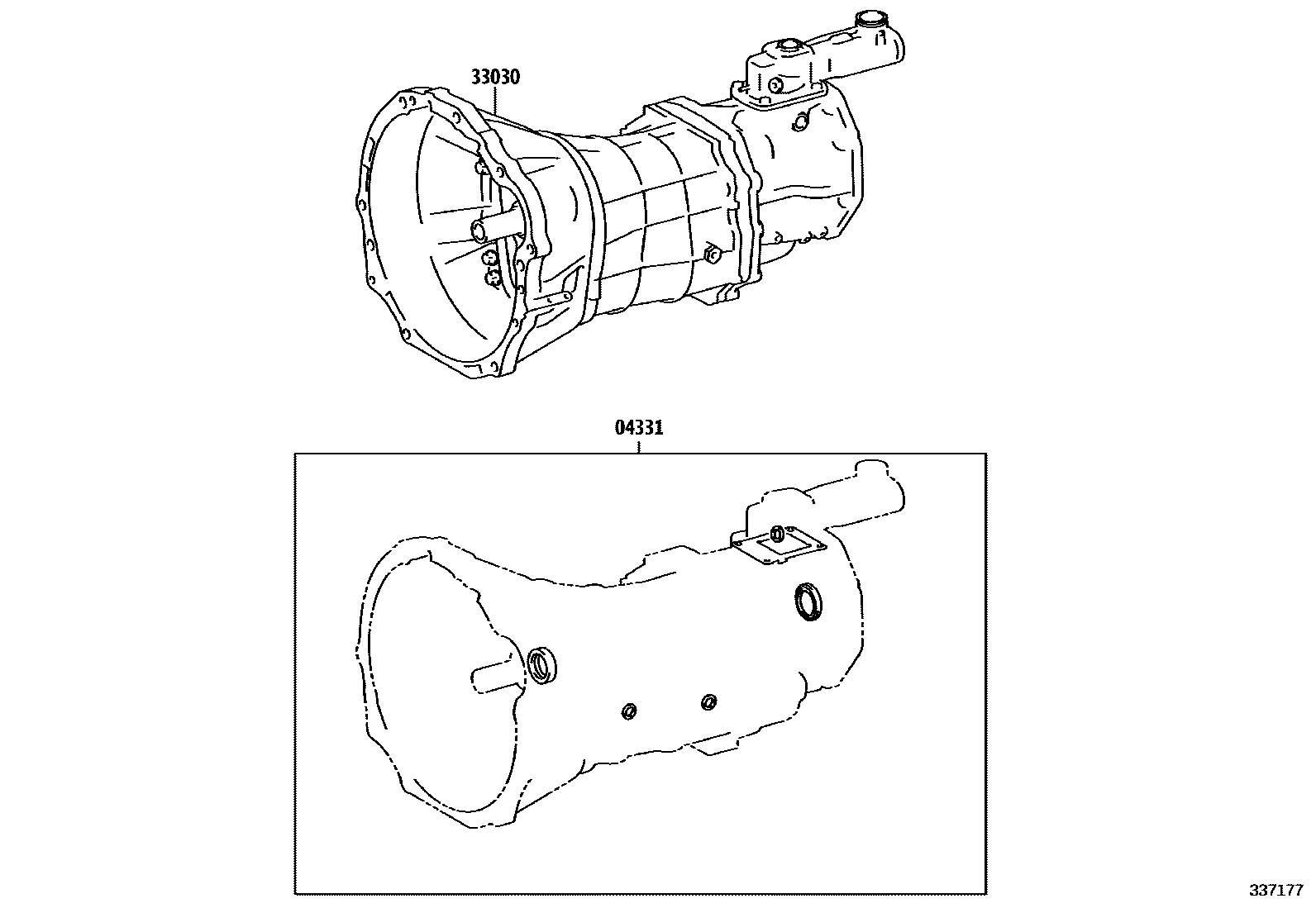

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-0K492i202308-202407

TYPE B:REFER ILLUST.

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-0KC93i202308-202407

R151F,TYPE B:REFER ILLUST.

2 parts on this diagram · 1 diagram in section
