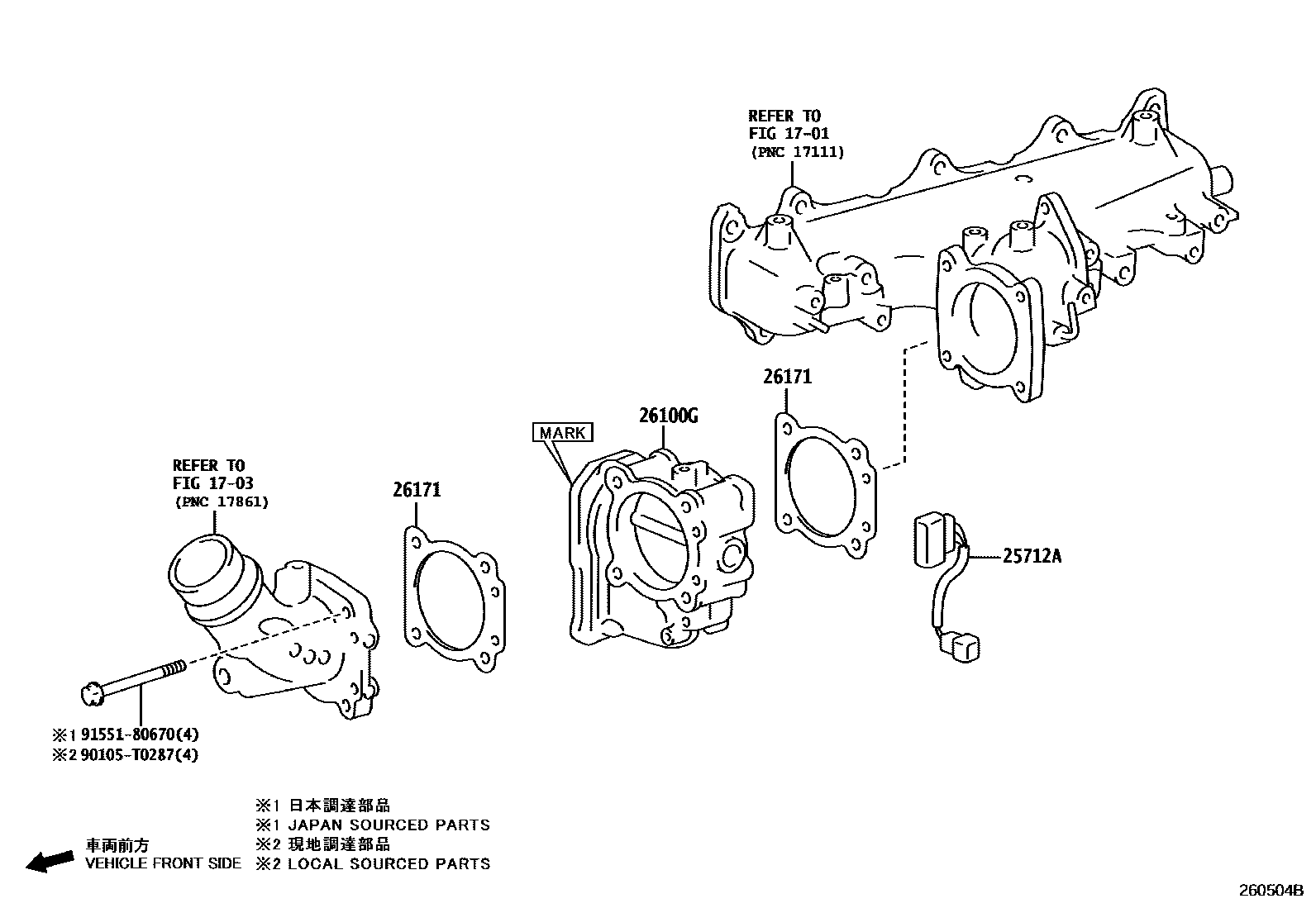

VENTURI

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

25712AWIRE, EMISSION CONTROL VALVE

main25712-0E010i1GDFTV..GUN156202308-202407

THA SOURCED PARTS

main25712-0E020i1GDFTV..GUN156202308-202407

IND SOURCED PARTS

26100GBODY ASSY, DIESEL THROTTLE

main26100-0E040i1GDFTV..GUN156202308-202407

MARK=26100-0E040

main26100-0E050i1GDFTV..GUN156202308-202407

MARK=26100-0E050

main26100-0E060i1GDFTV..GUN156202308-202407

MARK=26100-0E060

26171GASKET, VENTURI

main26171-0E030×2i1GDFTV..GUN156202308-202407

THA SOURCED PARTS

main26171-0E040×2i1GDFTV..GUN156202308-202407

IND SOURCED PARTS

90105T0287

main90105-T0287

9155180670

main91551-80670

7 parts on this diagram · 1 diagram in section
