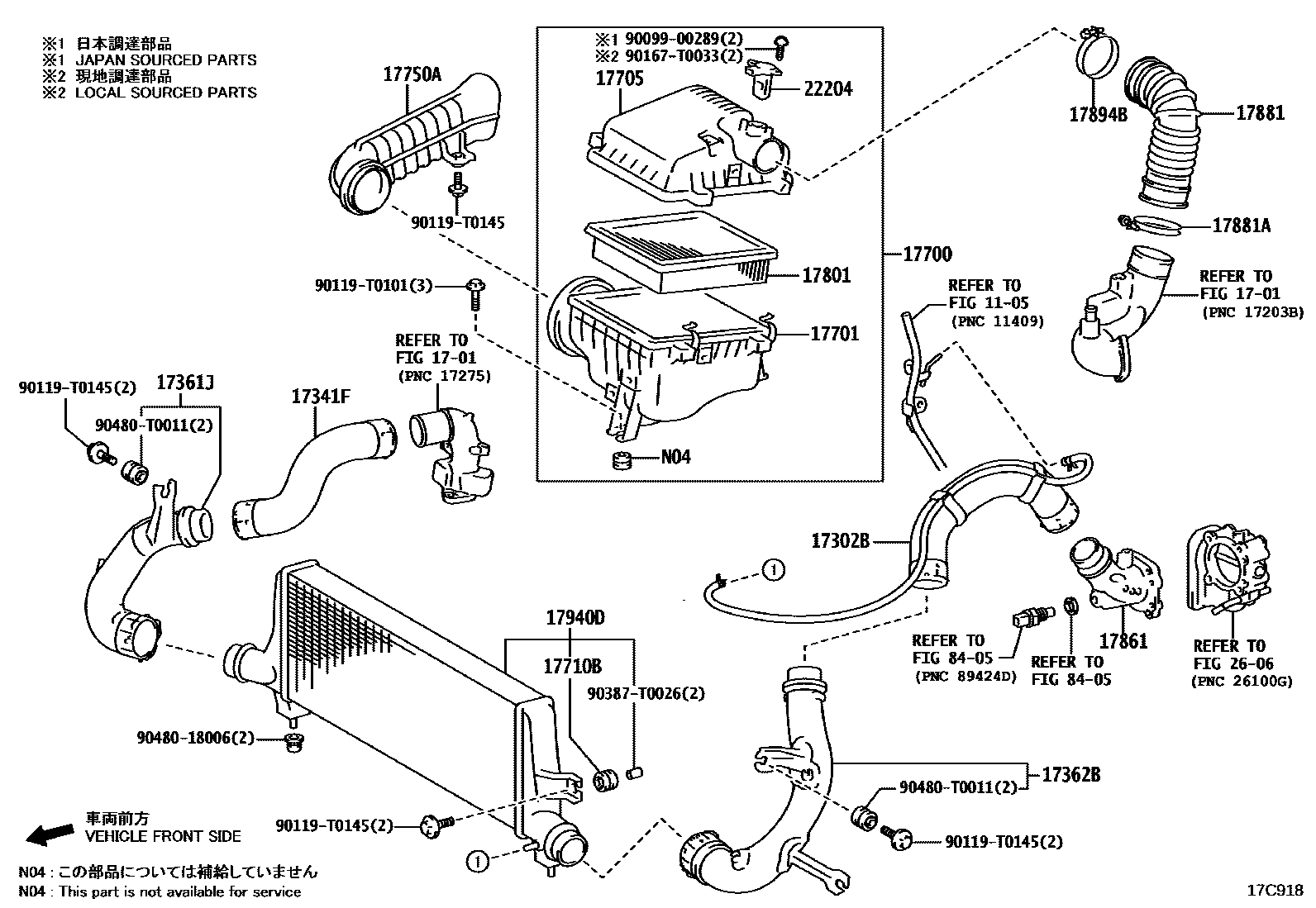

AIR CLEANER
1105CYLINDER BLOCK
1701MANIFOLD
17302BHOSE SUB-ASSY, AIR
17341FHOSE, AIR, NO.1
17361JTUBE, AIR, NO.1
17362BTUBE, AIR, NO.2
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17750AINLET ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17861CONNECTOR, INTAKE AIR
#,THA SOURCED PARTS
IND SOURCED PARTS
17881HOSE, AIR CLEANER, NO.1
THA SOURCED PARTS
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
17940DINTERCOOLER ASSY
22204METER SUB-ASSY, INTAKE AIR FLOW
2606VENTURI
8405ELECTRONIC CONTROLED DIESEL (ECD)
9009900289
main90099-00289
90119T0101
main90119-T0101
90119T0145
main90119-T0145
90167T0033
main90167-T0033
90387T0026
main90387-T0026
9048018006
main90480-18006
90480T0011
main90480-T0011
27 parts on this diagram · 2 diagrams in section
