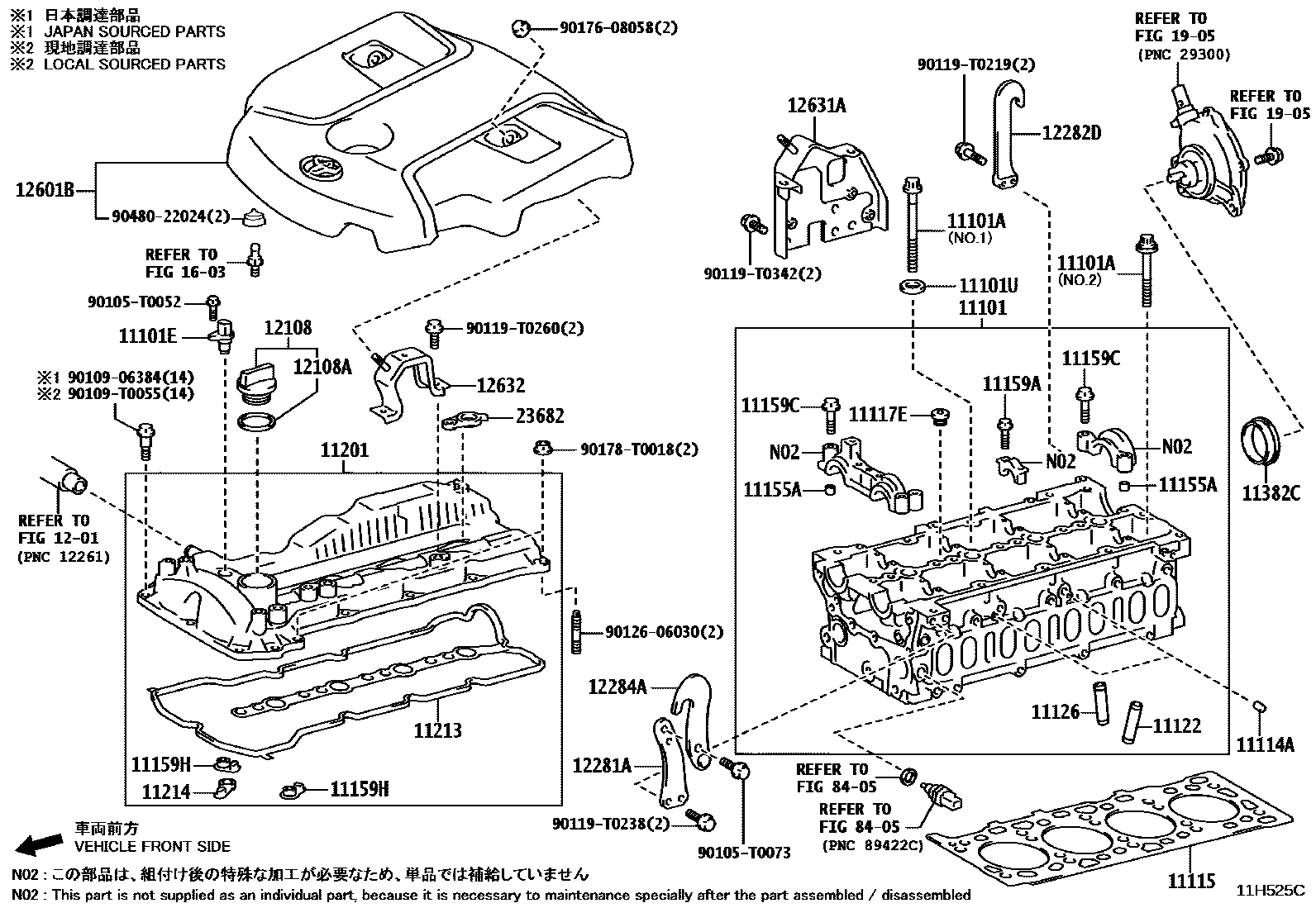

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER 13-02
sub11101-0C101
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE B:REFER 13-02
TYPE B:REFER 13-02
(L)
IND SOURCED PARTS
11101ABOLT(FOR CYLINDER HEAD SET)
(L),NO.1
(L),NO.2
11101ESENSOR, CAM POSITION
11101USPACER(FOR CYLINDER HEAD SET BOLT)
(L)
11114APIN, STRAIGHT
L=8,OD=5,(L)
11115GASKET, CYLINDER HEAD
(L)
MARK A,(L)
MARK B,(L)
MARK C,(L)
MARK D,(L)
MARK E,(L)
MARK A,(J)
MARK B,(J)
MARK C,(J)
MARK D,(J)
MARK E,(J)
(J)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
(L)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
STD
STD,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
STD,EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
STD
O/S 0.05
O/S 0.05,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
STD
STD,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
STD,EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
STD
O/S 0.05
O/S 0.05,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(J)
(J)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(L)
(L)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1,*651
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),NO.1,*651
(L)
NO.1,*657
NO.2,*651
NO.2,*657
NO.3,*651
NO.3,*657
11201COVER SUB-ASSY, CYLINDER HEAD
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IDN SOURCED PARTS
(L)
11213GASKET, CYLINDER HEAD COVER
IDN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
(L)
JAPAN SOURCED PARTS
11214GASKET, CYLINDER HEAD COVER, NO.2
(L)
11382CRETAINER, CAMSHAFT OIL SEAL
(L)
1201
12108CAP SUB-ASSY, OIL FILLER
(L)
(J)
12108AGASKET(FOR OIL FILLER CAP)
(L)
(J)
12281AHANGER, ENGINE, NO.1
IDN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
THA SOURCED PARTS
12282DHANGER, ENGINE, NO.2
IDN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
(L)
12284AHANGER, ENGINE, NO.1 UPPER
(L)
12601BCOVER SUB-ASSY, ENGINE, NO.1
12631ABRACKET, ENGINE COVER
THA SOURCED PARTS
12632BRACKET, ENGINE COVER, NO.2
1603
1905
23682GASKET, NOZZLE HOLDER
(L)
8405
90105T0052
main90105-T0052
90105T0073
main90105-T0073
9010906384
main90109-06384
90109T0055
main90109-T0055
90119T0219
main90119-T0219
90119T0238
main90119-T0238
90119T0260
main90119-T0260
90119T0342
main90119-T0342
9012606030
main90126-06030
9017608058
main90176-08058
90178T0018
main90178-T0018
9048022024
main90480-22024
42 parts on this diagram · 2 diagrams in section
