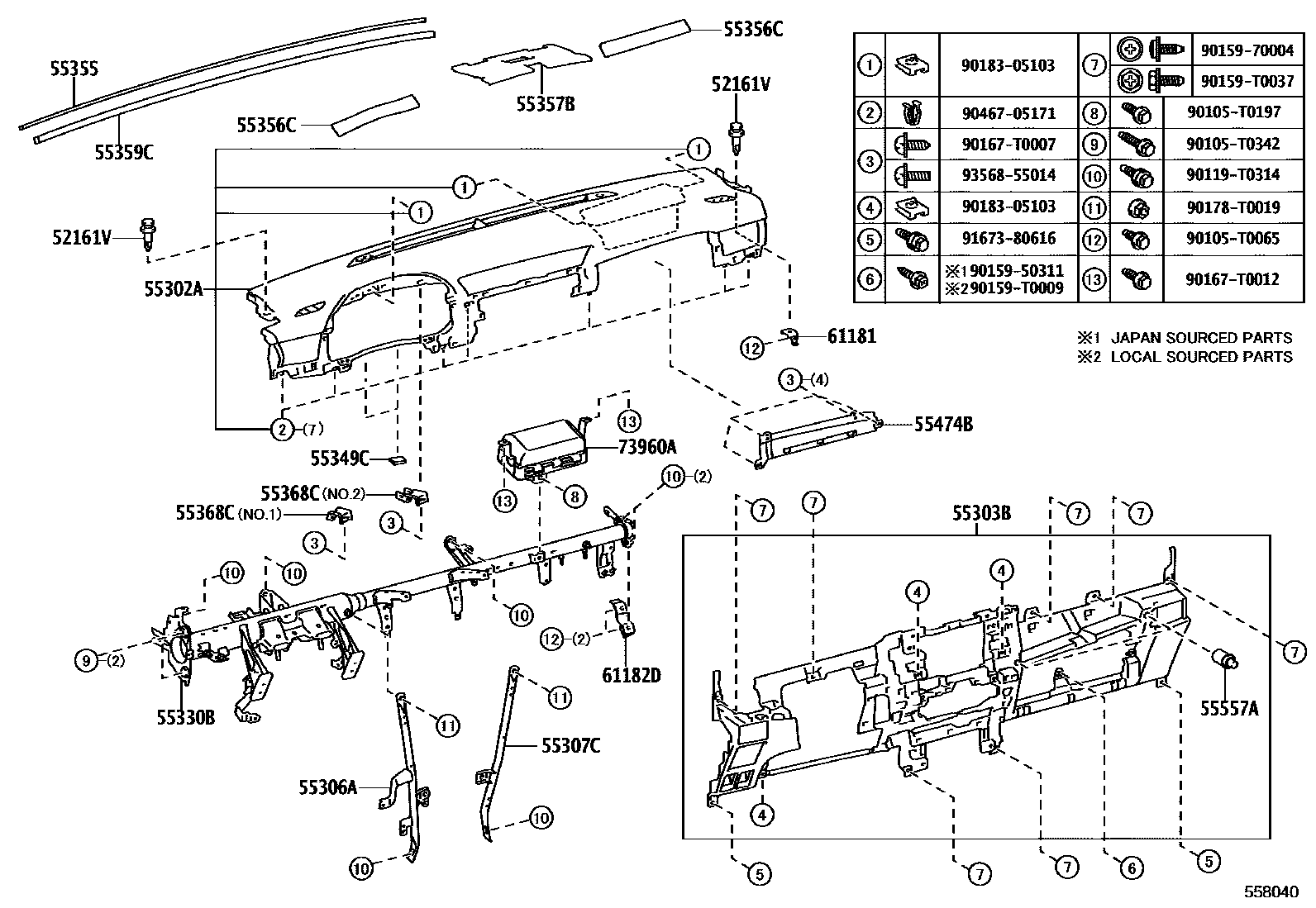

INSTRUMENT PANEL & GLOVE COMPARTMENT
52161VPIECE, INSTRUMENT PANEL
(L)
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
BLACK,TRIM2#,4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
BLACK,TRIM2#,4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349CCUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55359CCOSHION, INSTRUMENT PANEL, NO.5
55368CBRACKET, METER MOUNTING
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL
BLACK,TRIM2#,4#
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
61181BRACKET, INSTRUMENT PANEL SIDE
61182DBRACKET, INSTRUMENT PANEL SIDE
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
90105T0065
main90105-T0065
90105T0197
main90105-T0197
90105T0342
main90105-T0342
90119T0314
main90119-T0314
9015950311
main90159-50311
9015970004
main90159-70004
90159T0009
main90159-T0009
90159T0037
main90159-T0037
90167T0007
main90167-T0007
90167T0012
main90167-T0012
90178T0019
main90178-T0019
9018305103
main90183-05103
9046705171
main90467-05171
9167380616
main91673-80616
9356855014
main93568-55014
32 parts on this diagram · 4 diagrams in section
