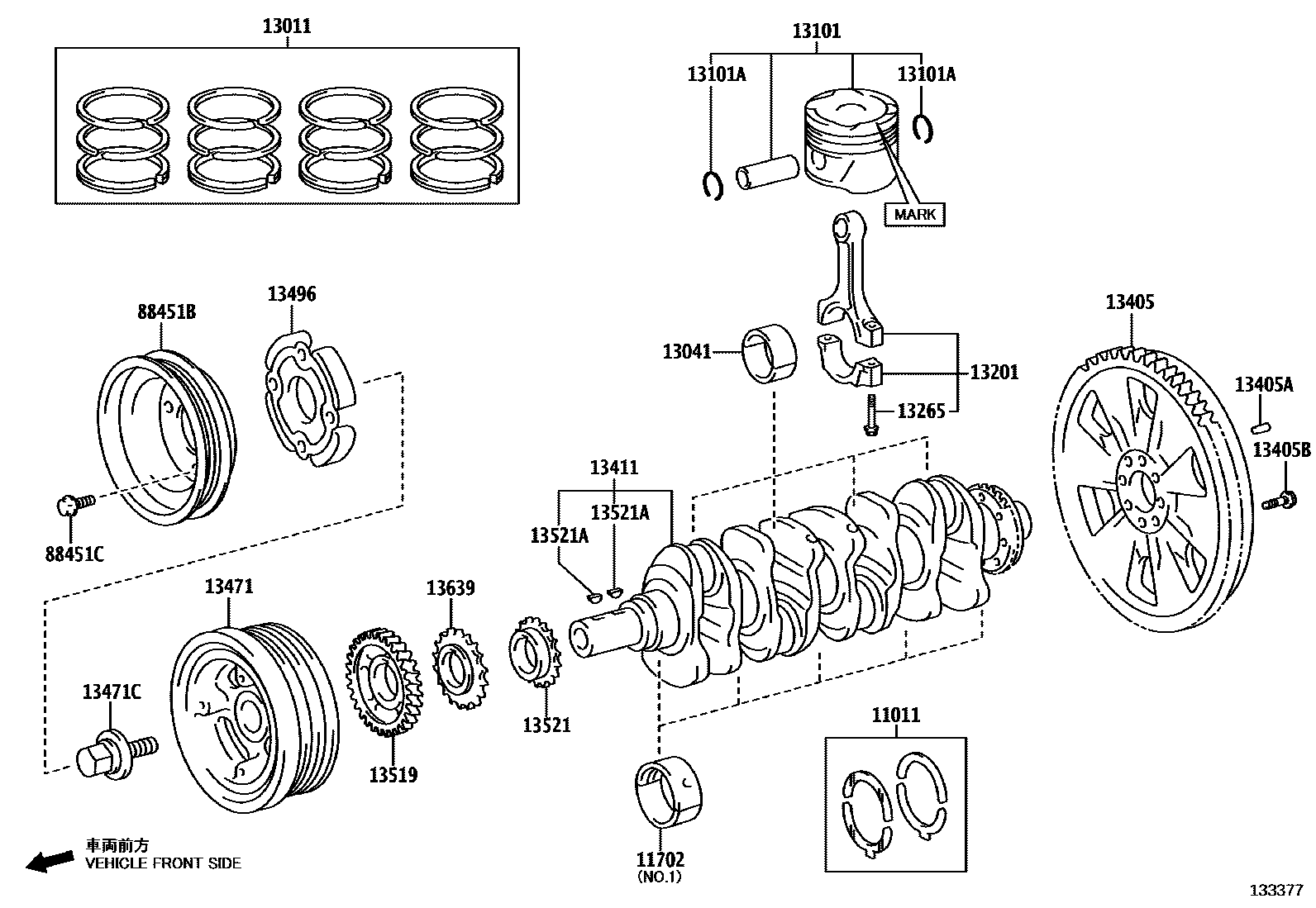

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD,(L)
11702BEARING SET, CRANKSHAFT
MARK 2,NO.1,*652
MARK 3,NO.1,*652
MARK 4,NO.1,*652
MARK 5,NO.1,*652
MARK 6,NO.1,*652
MARK 2,NO.1,*650
MARK 3,NO.1,*650
MARK 4,NO.1,*650
MARK 5,NO.1,*650
MARK 6,NO.1,*650
13011RING SET, PISTON
STD,(L)
STD,MARK=1H,*652
STD,MARK=1H,*650
STD,(J)
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 4,(L),REFER R/M
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 4,(L),REFER R/M
MARK 5,(L),REFER R/M
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 5,(L),REFER R/M
MARK 6,(L),REFER R/M
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 6,(L),REFER R/M
MARK 2,THA SOURCED PARTS
MARK 3,THA SOURCED PARTS
MARK 4,THA SOURCED PARTS
MARK 5,THA SOURCED PARTS
MARK 6,THA SOURCED PARTS
MARK 2,IND SOURCED PARTS
MARK 3,IND SOURCED PARTS
MARK 4,IND SOURCED PARTS
MARK 5,IND SOURCED PARTS
MARK 6,IND SOURCED PARTS
MARK 4,(J),REFER R/M
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 4,(J),REFER R/M
MARK 5,(J),REFER R/M
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 5,(J),REFER R/M
MARK 6,(J),REFER R/M
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 6,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,IDN SOURCED PARTS
STD,MARK 1,MARK=1GD71
STD,MARK 2,MARK=1GD71
STD,MARK 1,MARK=1GD81
STD,MARK 2,MARK=1GD81
O/S 0.50
O/S 0.50,EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
IDN SOURCED PARTS
THA SOURCED PARTS
MARK A,THA SOURCED PARTS
MARK B,THA SOURCED PARTS
MARK C,THA SOURCED PARTS
MARK A,IND SOURCED PARTS
MARK B,IND SOURCED PARTS
MARK C,IND SOURCED PARTS
MARK A,JAPAN SOURCED PARTS
MARK B,JAPAN SOURCED PARTS
MARK C,JAPAN SOURCED PARTS
13265BOLT, CONNECTING ROD
IDN SOURCED PARTS
THA SOURCED PARTS
13405FLYWHEEL SUB-ASSY
IDN SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8,(J)
L=23,OD=8,(L)
L=15,OD=5,(L)
13405BBOLT, FLYWHEEL SETTING
(L)
(J)
(L)
13411CRANKSHAFT
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
THA SOURCED PARTS
IND SOURCED PARTS
13471PULLEY, CRANKSHAFT
IDN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
(L)
(L)
13496COVER, CRANKSHAFT PULLY
THA SOURCED PARTS
13519GEAR, OIL PUMP DRIVE
THA SOURCED PARTS
IND SOURCED PARTS
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
IDN SOURCED PARTS
THA SOURCED PARTS
JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
(L)
13639SPROCKET, BALANCESHAFT TIMING
(L)
(J)
88451BPULLEY, CRANKSHAFT(FOR VISCOUS HEATER)
88451CBOLT, FLANGE W/WASHER
21 parts on this diagram · 2 diagrams in section
