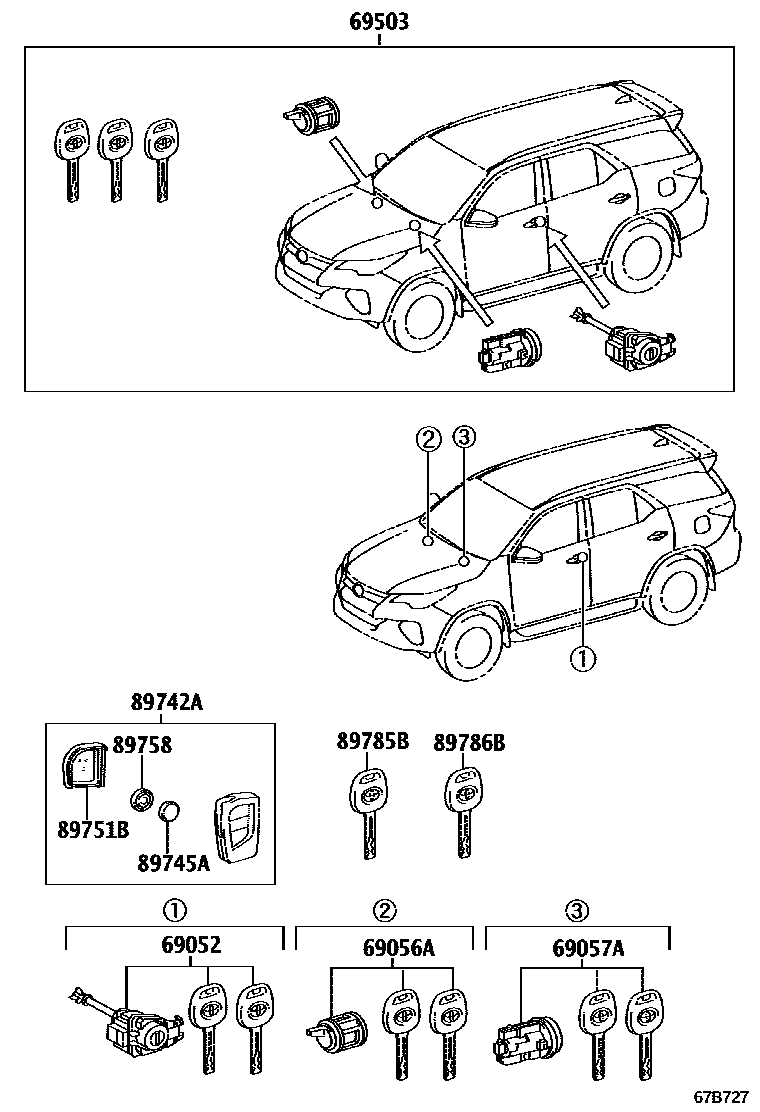

LOCK CYLINDER SET

0001 1WITH(WIRELESS DOOR LOCK) 0002 1WITH(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0K060iGUN156,TGN156..L,S202108-202207

main69052-0K070iGUN156..H202108-202207

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0K050iGUN156,TGN156..L,S202108-202207

main69056-0K060iGUN156..H202108-202207

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0K220iGUN156,TGN156..L,S202108-202207

69503CYLINDER SET, LOCK

main69005-0KC70iGUN156..H202108-202207

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

main69005-0KJ20iGUN156,TGN156..L,S202108-202207

89742ATRANSMITTER, DOOR CONTROL

main89742-0K050iGUN156,TGN156..L,S202108-202207

89745ABATTERY, TRANSMITTER

main89745-0D040iGUN156,TGN156..L,S202108-202207

CR1620

89751BCOVER, TRANSMITTER HOUSING

main89751-0K161iGUN156,TGN156..L,S202108-202207

89758PACKING, DOOR CONTROL TRANSMITTER

main89758-02010iGUN156,TGN156..L,S202108-202207

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-0H110iGUN156,TGN156..L,S202108-202207

BLANK KEY

main89785-0K080iGUN156,TGN156..L,S202108-202207

CUT KEY

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-0K070iGUN156,TGN156..L,S202108-202207

BLANK KEY,BLANK KEY

main89786-0K150iGUN156,TGN156..L,S202108-202207

CUT KEY

10 parts on this diagram · 2 diagrams in section
