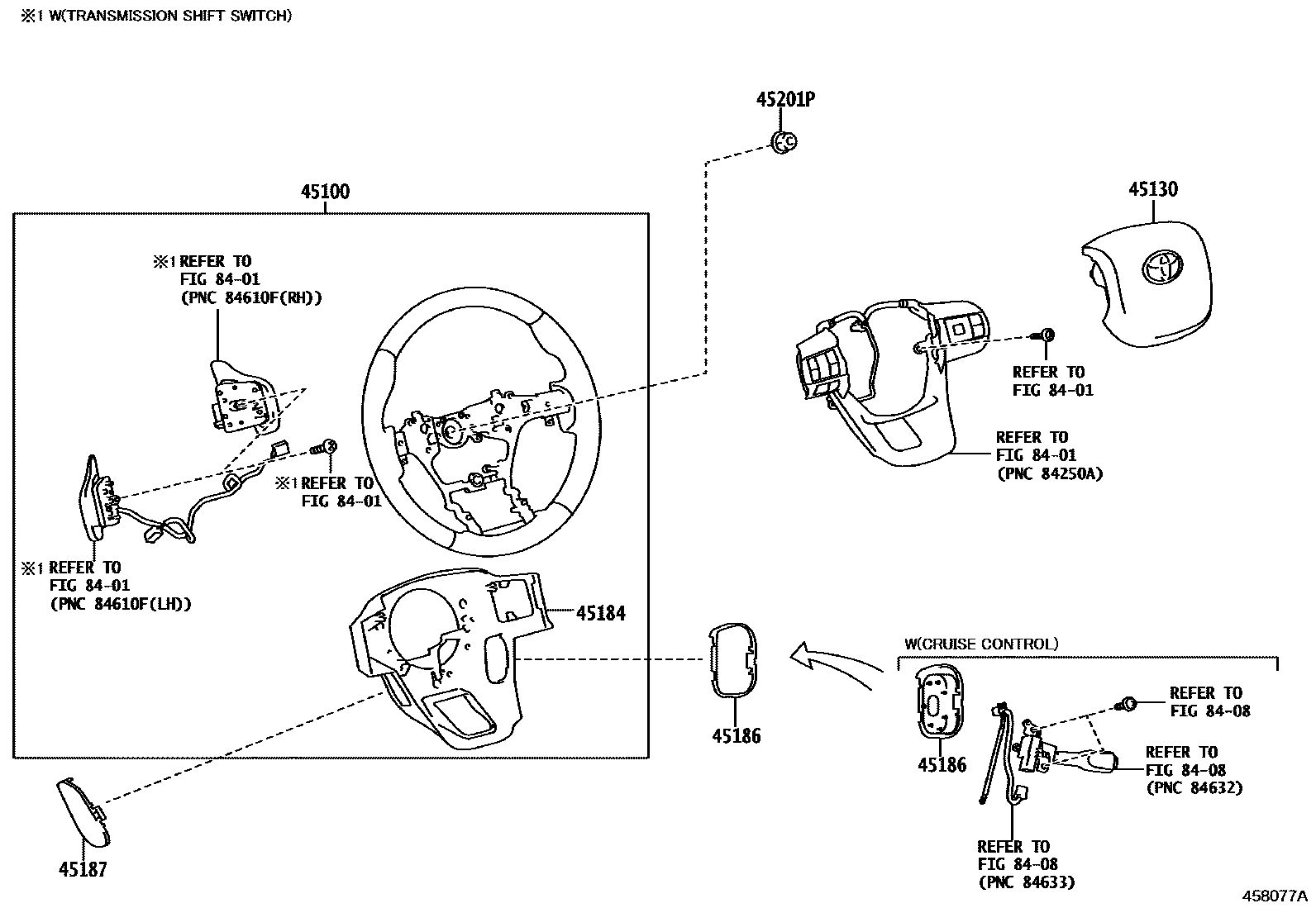

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0K250-C0i202108-202207

3-SPOKE,URETHANE,BLACK,TRIM2#,4#

main45100-0K821-C5i202108-202207

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#

main45100-0KP90-C0i202108-202207

3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#

main45100-0KP90-C0i202108-202207

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER),BLACK,TRIM2#,4#

45130BUTTON ASSY, HORN

main45130-0K270-C0i202108-202207

BLACK,TRIM2#,4#

main45130-0K270-C0i202108-202207

MLM BASIC PACKAGE,BLACK,TRIM2#,4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-0K010-C0i202108-202207

BLACK,TRIM2#,4#

main45184-0K130-C0i202108-202207

BLACK,TRIM2#,4#

main45184-0K200-C0i202108-202207

BLACK,TRIM2#,4#

main45184-0K200-C0i202108-202207

STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER),BLACK,TRIM2#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-0K120-C0i202108-202207

BLACK,TRIM2#,4#

main45186-0K130-C0i202108-202207

BLACK,TRIM2#,4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-0K050-C0i202108-202207

BLACK,TRIM2#,4#

45201PNUT, STEERING WHEEL SET

main90179-12071i202108-202207

8401

8408

8 parts on this diagram · 1 diagram in section
