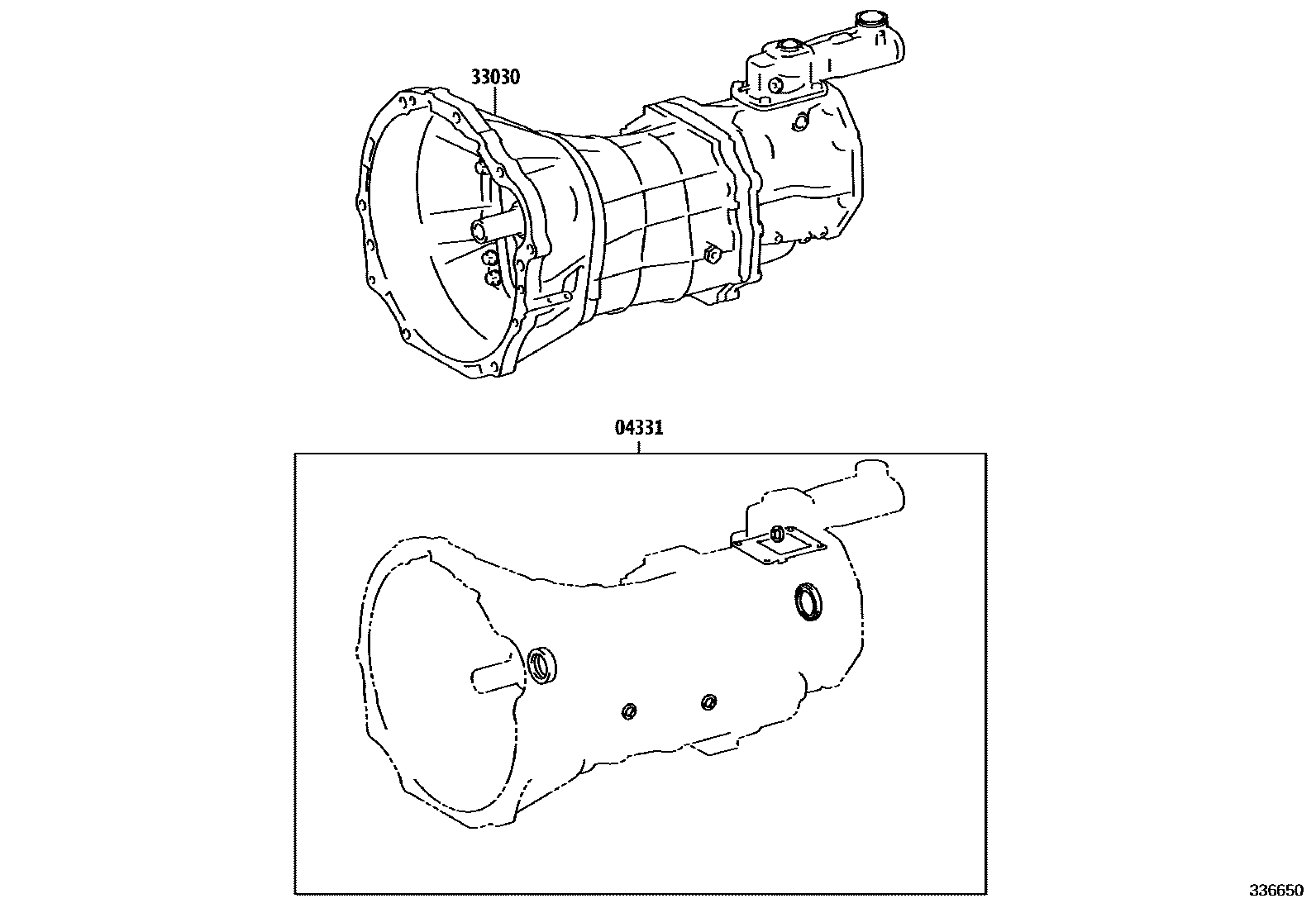

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1R151F 0002 1R151F

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-0K492iTGN156..L202108-202207

TYPE B:REFER ILLUST.

main04331-0K590iTGN156..L202108-202207

TYPE A:REFER ILLUST.

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-0KB91iTGN156..L202108-202207

R151F,TYPE A:REFER ILLUST.

main33030-0KC90iTGN156..L202108-202110

R151F,TYPE B:REFER ILLUST.

main33030-0KC92iTGN156..L202110-202207

R151F,TYPE B:REFER ILLUST.

2 parts on this diagram · 2 diagrams in section
