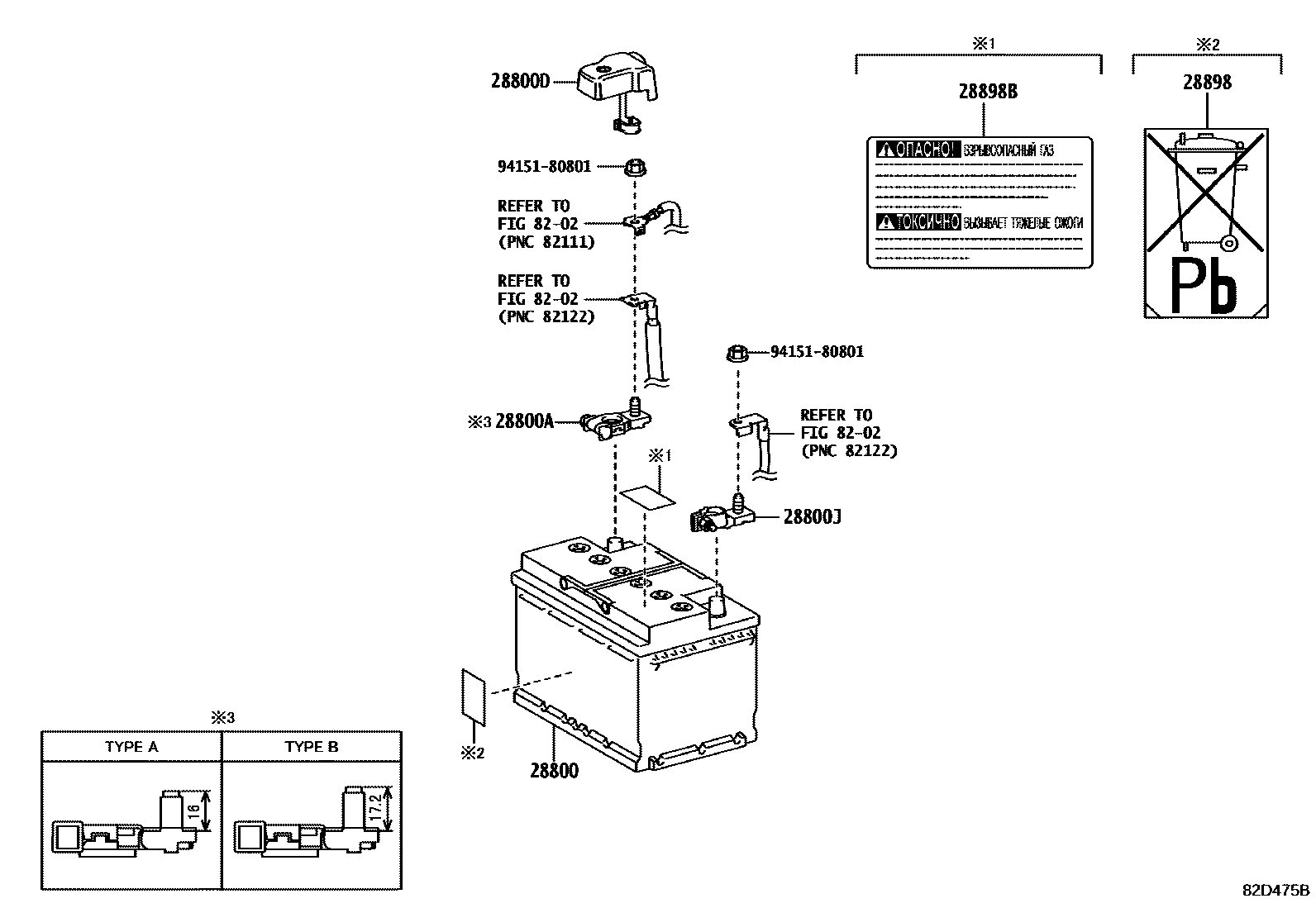

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0L502i2TRFE..TGN156202006-202007

LN3,FURUKAWA

main28800-0L503i2TRFE..TGN156202007-202108

LN3,FURUKAWA

main28800-0L510i1GDFTV..GUN156202006-202108

LN4,GS

main28800-0L570i2TRFE..TGN156202006-202108

LN3,YUASA

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1GDFTV,2TRFE..GUN156,TGN156202006-202108

TYPE A:REFER ILLUST.

main90982-05061i1GDFTV,2TRFE..GUN156,TGN156202006-202108

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i1GDFTV,2TRFE..GUN156,TGN156202006-202108

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GDFTV,2TRFE..GUN156,TGN156202006-202108

28898PLATE, BATTERY

main28898-0L010i1GDFTV,2TRFE..GUN156,TGN156202006-202108

28898BPLATE, BATTERY

main28897-31040i1GDFTV,2TRFE..GUN156,TGN156202006-202108

8202WIRING & CLAMP

→ Go to FIG 82-02

9415180801

main94151-80801

8 parts on this diagram · 1 diagram in section
