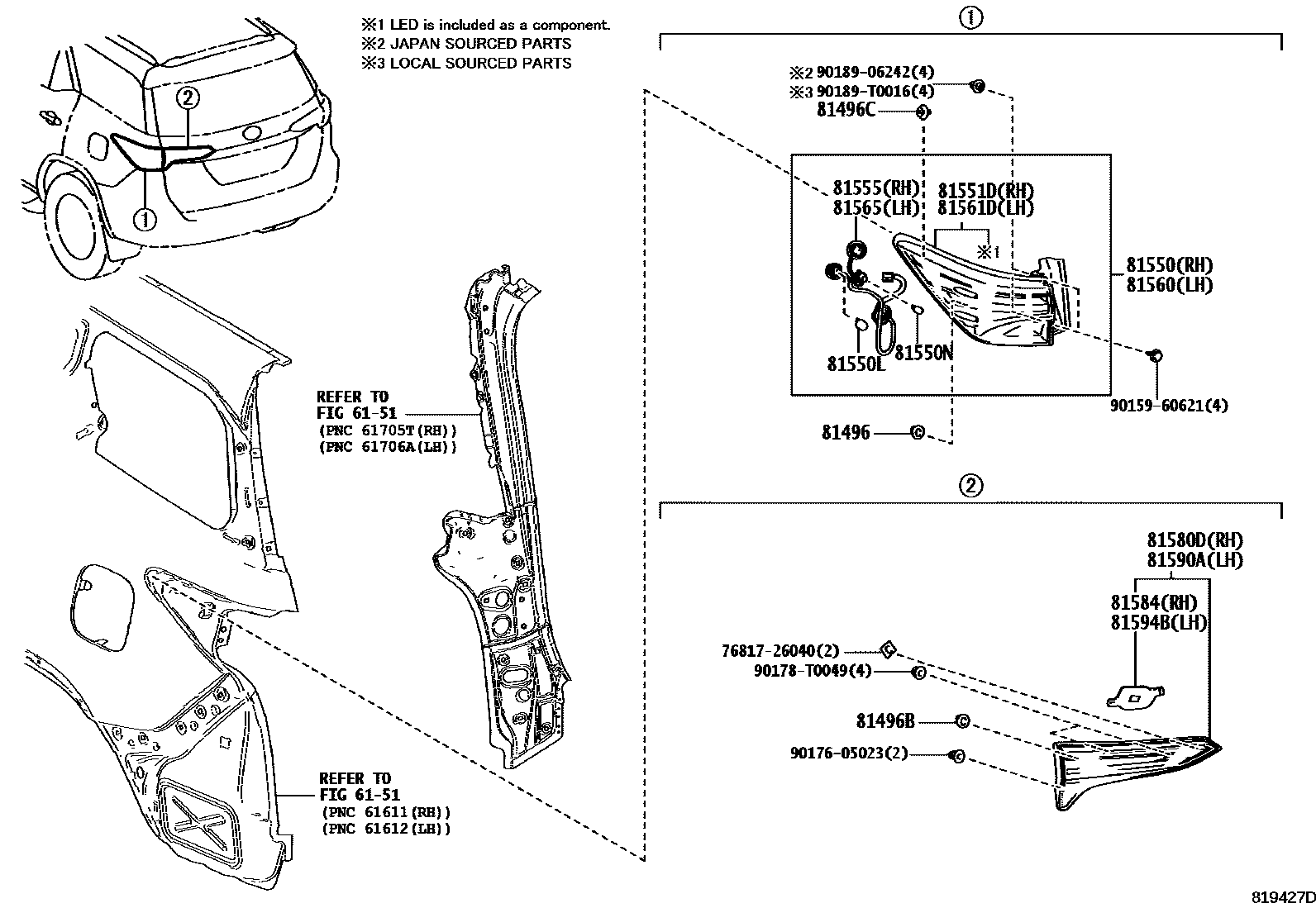

REAR COMBINATION LAMP

0001 1REAR TURN SIGNAL LAMP = BULB 0002 1REAR TURN SIGNAL LAMP = LED T

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040iGUN156,TGN156202006-202108

81496BGUIDE, REAR LAMP

main81496-0D040iGUN156,TGN156202006-202108

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iGUN156,TGN156202006-202108

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K352iGUN156,TGN156..L,S202006-202108

main81550-0K510iGUN156..H202006-202108

sub81550-0K511

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iGUN156,TGN156..L,S202006-202108

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iGUN156,TGN156202006-202108

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0K352iGUN156,TGN156..L,S202006-202108

main81551-0K510iGUN156..H202006-202108

sub81551-0K511

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K350iGUN156,TGN156..L,S202006-202108

main81555-0K510iGUN156..H202006-202108

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K352iGUN156,TGN156..L,S202006-202108

main81560-0K510iGUN156..H202006-202108

sub81560-0K511

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0K352iGUN156,TGN156..L,S202006-202108

main81561-0K510iGUN156..H202006-202108

sub81561-0K511

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K350iGUN156,TGN156..L,S202006-202108

main81555-0K510iGUN156..H202006-202108

81580DLAMP ASSY, REAR, RH

main81580-0K082iGUN156,TGN156..L,S202006-202108

main81580-0K180iGUN156..H202006-202108

sub81580-0K181

81584PACKING, REAR LAMP RH

main81582-0K180iGUN156..H202006-202108

81590ALAMP ASSY, REAR, LH

main81590-0K082iGUN156,TGN156..L,S202006-202108

main81590-0K180iGUN156..H202006-202108

sub81590-0K181

81594BPACKING, REAR LAMP LH

main81582-0K180iGUN156..H202006-202108

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9015960621

main90159-60621

9017605023

main90176-05023

90178T0049

main90178-T0049

9018906242

main90189-06242

90189T0016

main90189-T0016

22 parts on this diagram · 2 diagrams in section
