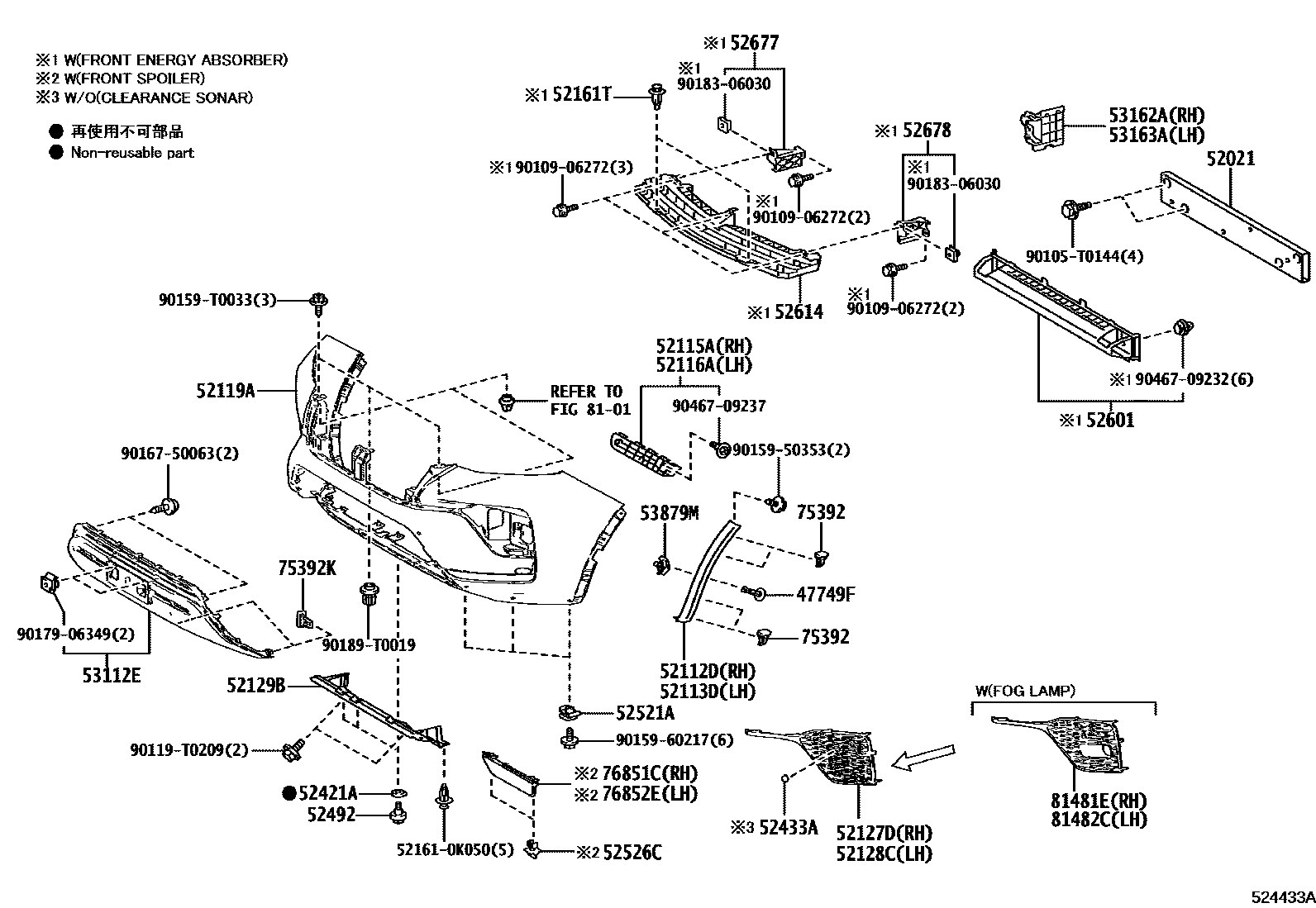

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52112DEXTENSION, FRONT BUMPER, RH
NO PAINT REQ.
52113DEXTENSION, FRONT BUMPER, LH
NO PAINT REQ.
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
52127DCOVER, FRONT BUMPER HOLE, RH
52128CCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
52161TPIECE, FRONT BUMPER
52421APAD, FRONT BUMPER
52433APLUG, FRONT BUMPER COVER HOLE
52492BOLT, BUMPER PAD, NO.2
52521ACLIP(FOR FRONT BUMPER RETAINER)
52526CRETAINER, FRONT BUMPER, LOWER
52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52614ABSORBER, FRONT BUMPER ENERGY, NO.2
52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
BLUISH SILVER ME,040 ,070 ,1G3 ,218 ,3U5 ,4W9 ,8X8
SILVER ME.,1D6
53162ADEFLECTOR, FRONT BUMPER STONE, RH
53163ADEFLECTOR, FRONT BUMPER STONE, LH
53879MRETAINER, FRONT FENDER LINER
75392RETAINER, OUTSIDE MOULDING
THAILAND PRODUCT
75392KRETAINER, OUTSIDE MOULDING, NO.2
76851CFRONT SPOILER
76852ESPOILER, FRONT, LH
8101HEADLAMP
81481ECOVER, FOG LAMP, RH
FRONT FOG LAMP-WITH(LED)
81482CCOVER, FOG LAMP, LH
FRONT FOG LAMP-WITH(LED)
521610K050CUSHION, REAR BUMPER GUARD, NO.1
main52161-0K050
90105T0144
main90105-T0144
9010906272
main90109-06272
90119T0209
main90119-T0209
9015950353
main90159-50353
9015960217
main90159-60217
90159T0033
main90159-T0033
9016750063
main90167-50063
9017906349
main90179-06349
9018306030
main90183-06030
90189T0019
main90189-T0019
9046709232
main90467-09232
9046709237
main90467-09237
44 parts on this diagram · 1 diagram in section
