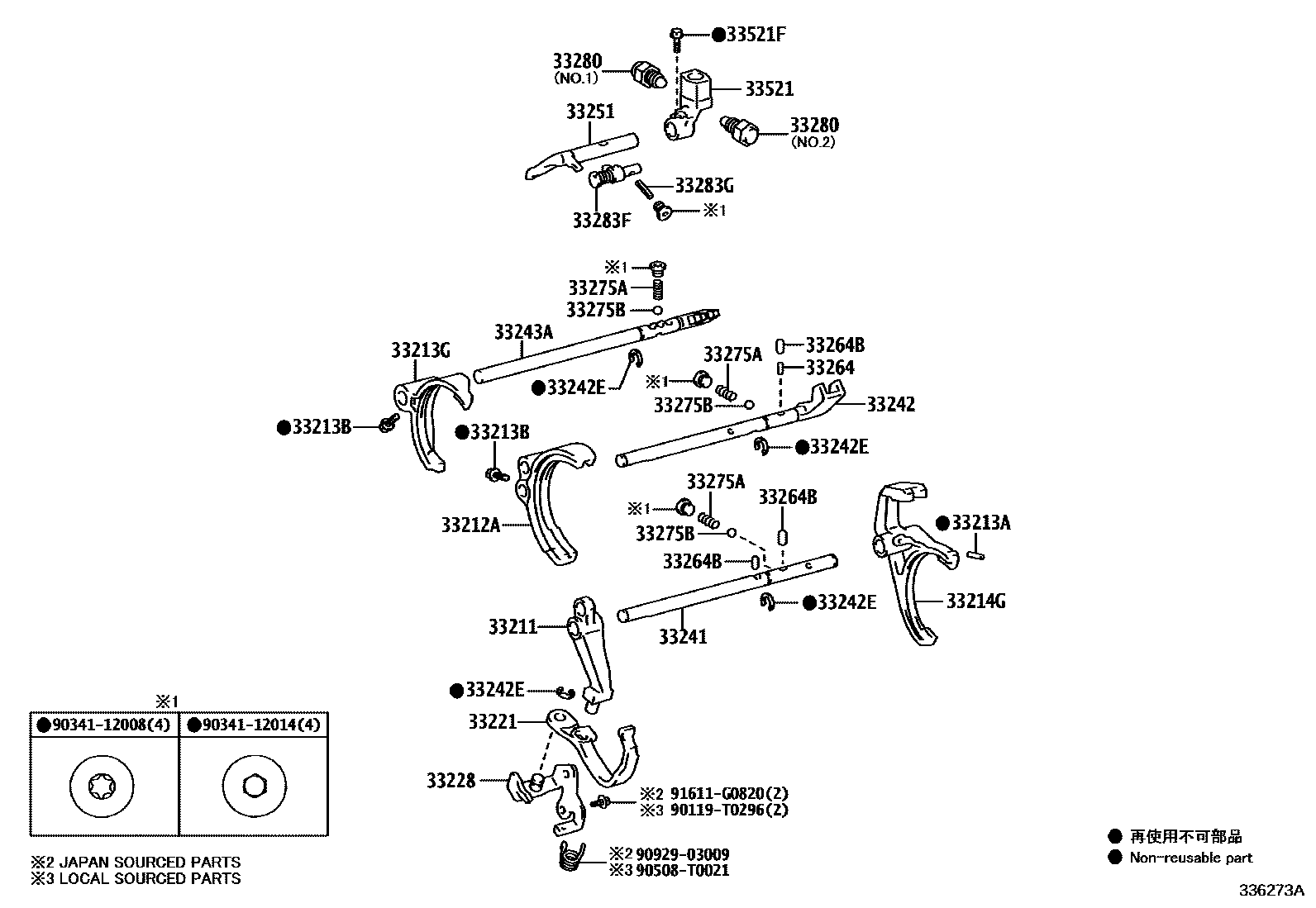

GEAR SHIFT FORK & LEVER SHAFT (MTM)

33211FORK, REVERSE SHIFT

main33211-0K050iTGN156..L202006-202009

TYPE B:REFER 33-01

main33211-0K061iTGN156..L202006-202108

TYPE A:REFER 33-01

main33211-0K070iTGN156..L202006-202012

TYPE C:REFER 33-01

main33211-0K071iTGN156..L202012-202108

TYPE C:REFER 33-01

33212AFORK, GEAR SHIFT, NO.1

main33212-0K020iTGN156..L202006-202009

TYPE B:REFER 33-01

main33212-0K030iTGN156..L202006-202108

TYPE C:REFER 33-01

main33212-0K050iTGN156..L202006-202108

TYPE A:REFER 33-01

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05016iTGN156..L202006-202108

TYPE A:REFER 33-01,TYPE C:REFER 33-01

main90254-T0004iTGN156..L202006-202009

TYPE B:SEE 33-01,(L)

33213BBOLT(FOR SHIFT FORK SET)

main90105-06077×2iTGN156..L202006-202009

TYPE B:REFER 33-01

main90105-T0157×2iTGN156..L202105-202108

TYPE C:REFER 33-01

33213GFORK, GEAR SHIFT, NO.2

main33213-0K030iTGN156..L202006-202009

TYPE B:REFER 33-01

main33213-0K040iTGN156..L202006-202108

TYPE A:REFER 33-01,TYPE C:REFER 33-01

33214GFORK, GEAR SHIFT, NO.3

main33230-35012iTGN156..L202006-202009

TYPE B:REFER 33-01

33221ARM, REVERSE SHIFT

main33221-0K050iTGN156..L202006-202009

TYPE B:REFER 33-01

main33221-0K070iTGN156..L202006-202108

TYPE C:REFER 33-01

main33221-0K080iTGN156..L202006-202108

TYPE A:REFER 33-01

33228BRACKET, REVERSE SHIFT ARM

main33228-0K050iTGN156..L202006-202108

TYPE A:REFER 33-01

main33228-0K060iTGN156..L202006-202009

TYPE B:REFER 33-01

33241SHAFT, REVERSE SHIFT FORK

main33244-0K050iTGN156..L202006-202009

TYPE B:SEE 33-01,(L)

main33244-0K061iTGN156..L202006-202108

TYPE A:REFER 33-01

main33244-0K070iTGN156..L202006-202012

TYPE C:REFER 33-01

main33244-0K071iTGN156..L202012-202108

TYPE C:REFER 33-01

main33244-35110iTGN156..L202006-202009

TYPE B:SEE 33-01,(J)

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-0K050iTGN156..L202006-202009

TYPE B:SEE 33-01,(L)

main33242-0K070iTGN156..L202006-202012

TYPE C:REFER 33-01

main33242-0K071iTGN156..L202012-202108

TYPE C:REFER 33-01

main33242-0K111iTGN156..L202006-202108

TYPE A:REFER 33-01

main33242-35090iTGN156..L202006-202009

TYPE B:SEE 33-01,(J)

33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12003×4iTGN156..L202006-202108

TYPE A:REFER 33-01,TYPE C:REFER 33-01

main90520-T0135×4iTGN156..L202006-202009

TYPE B:REFER 33-01

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-0K030iTGN156..L202006-202009

TYPE B:SEE 33-01,(L)

main33243-0K040iTGN156..L202006-202108

TYPE C:REFER 33-01

main33243-0K070iTGN156..L202006-202108

TYPE A:REFER 33-01

main33243-35100iTGN156..L202006-202009

TYPE B:SEE 33-01,(J)

33251LEVER, SHIFT & SELECT

main33251-0K080iTGN156..L202006-202108

TYPE C:REFER 33-01

main33251-0K100iTGN156..L202006-202009

TYPE B:REFER 33-01

main33251-0K140iTGN156..L202006-202108

TYPE A:REFER 33-01

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-05029iTGN156..L202006-202108

L=11.5,OD=4.8,TYPE A:REFER 33-01,TYPE C:REFER 33-01

main90250-T0022iTGN156..L202006-202009

L=11.5,OD=4.8,TYPE B:REFER 33-01

33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )

main90250-06032iTGN156..L202006-202108

L=13.7,OD=6,TYPE A:REFER 33-01

main90361-10003×2iTGN156..L202012-202108

L=13.6,OD=9.5,TYPE C:REFER 33-01

main90361-T0003×3iTGN156..L202006-202009

L=13.6,PIN,TYPE B:REFER 33-01

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-16199×3iTGN156..L202006-202108

L=35.09,TYPE C:SEE 33-01,(J)

main90501-T0029×3iTGN156..L202006-202009

L=35.09,TYPE B:REFER 33-01

main90501-T0052×3iTGN156..L202006-202108

L=35.09,TYPE A:REFER 33-01

main90501-T0062×3iTGN156..L202006-202108

L=35.09,TYPE C:SEE 33-01,(L)

33275BBALL, SHAFT DETENT

main90360-10003×3iTGN156..L202006-202108

TYPE A:REFER 33-01,TYPE C:SEE 33-01,(J)

main90360-T0008×3iTGN156..L202006-202009

TYPE B:SEE 33-01,(L)

main90360-T0013×3iTGN156..L202006-202108

TYPE C:SEE 33-01,(L)

33280PIN ASSY, REVERSE RESTRICT

main33280-0K110iTGN156..L202006-202009

T/P B:SEE 33-01,NO.1

main33280-0K120iTGN156..L202006-202009

T/P B:SEE 33-01,NO.2

main33280-71050iTGN156..L202006-202108

T/P A:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1

main33280-71060iTGN156..L202006-202108

T/P C:SEE 33-01,NO.2,T/P A:SEE 33-01,NO.2

33283FPIN, REVERSE RESTRICT

main33280-0K090iTGN156..L202006-202009

main33280-35100iTGN156..L202006-202108

TYPE A:REFER 33-01,TYPE C:REFER 33-01

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-05001iTGN156..L202006-202009

TYPE B:SEE 33-01,(J)

main90254-T0003iTGN156..L202006-202009

TYPE B:SEE 33-01,(L)

33521HOUSING, SHIFT LEVER

main33521-0K200iTGN156..L202006-202108

TYPE A:REFER 33-01

main33521-0K210iTGN156..L202006-202009

TYPE B:REFER 33-01

main33521-0K220iTGN156..L202006-202108

TYPE C:REFER 33-01

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90109-08305iTGN156..L202006-202009

TYPE B:REFER 33-01

main90109-T0039iTGN156..L202006-202108

TYPE A:SEE 33-01,(L),TYPE C:SEE 33-01,(L)

90119T0296

main90119-T0296

9034112008

main90341-12008

9034112014

main90341-12014

90508T0021

main90508-T0021

9092903009

main90929-03009

91611G0820

main91611-G0820

28 parts on this diagram · 1 diagram in section
