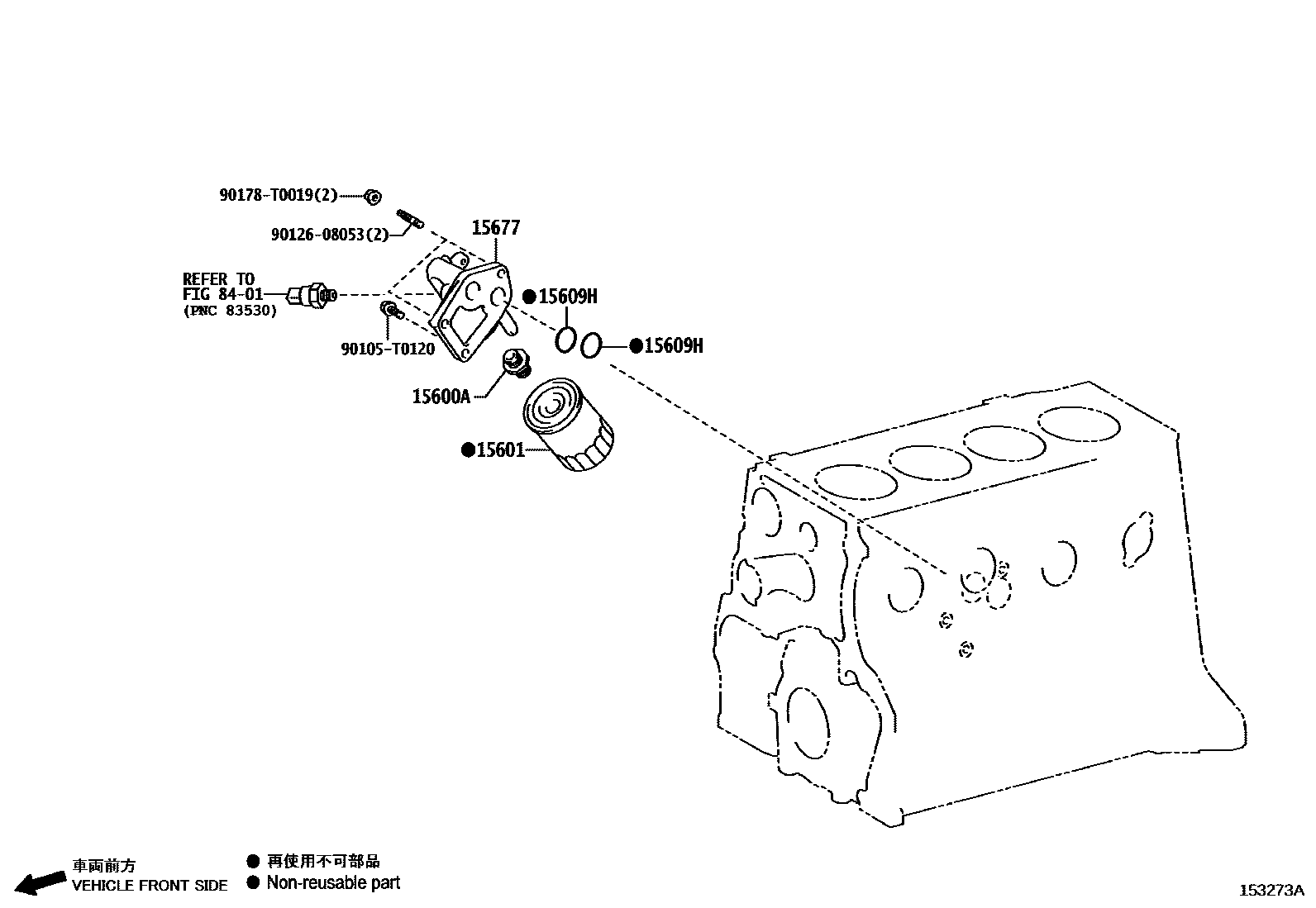

OIL FILTER
15600AUNION(FOR OIL FILTER)
(L)
15601FILTER SUB-ASSY, OIL
MARK 90915-TB001
15609BRACKET SUB-ASSY, OIL FILTER
NO MARK
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK = 15609-0C020
15609HRING, O(FOR OIL FILTER BRACKET)
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(J); JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(L); THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
IDN SOURCED PARTS
15677BRACKET, OIL FILTER
THA SOURCED PARTS
IND SOURCED PARTS
8401SWITCH & RELAY & COMPUTER
90105T0120
main90105-T0120
9012608053
main90126-08053
90178T0019
main90178-T0019
9 parts on this diagram · 2 diagrams in section
