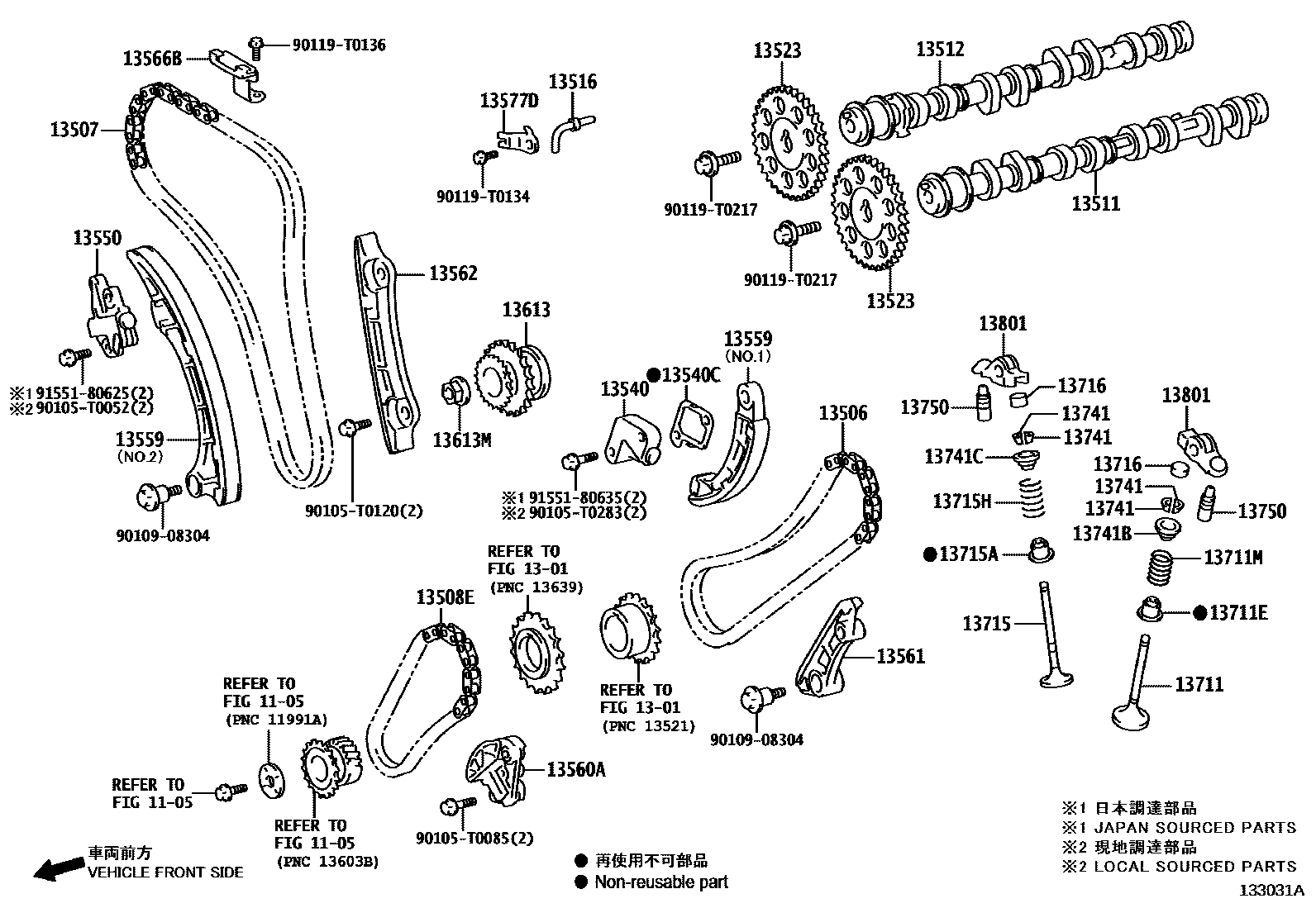

CAMSHAFT & VALVE
1105
1301
13506CHAIN SUB-ASSY
(L)
(L)
(J)
13507CHAIN SUB-ASSY, NO.2
(L)
(J)
13508ECHAIN SUB-ASSY, NO.3
13511CAMSHAFT
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(L)
THA SOURCED PARTS
IND SOURCED PARTS
13512CAMSHAFT, NO.2
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(L)
THA SOURCED PARTS
IND SOURCED PARTS
13516JET, OIL
(L)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
THA SOURCED PARTS
IND SOURCED PARTS
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(L)
(J)
13540CGASKET(FOR CHAIN TENSIONER)
(L),MADE IN IDN
THA SOURCED PARTS
IND SOURCED PARTS
(J)
13550TENSIONER ASSY, CHAIN, NO.2
(L)
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(L)
(L),NO.2
(L),NO.1
(J)
13560ATENSIONER ASSY, CHAIN, NO.3
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(L)
(J)
13562DAMPER, CHAIN VIBRATION, NO.2
(L)
(L)
(J)
13566BGUIDE, TIMING CHAIN
(L)
(L)
(J)
13577DPLATE, LOCK
THA SOURCED PARTS
IND SOURCED PARTS
13613GEAR, INJECTION PUMP DRIVE
TYPE B,*652
TYPE B,*650
13613MNUT(FOR INJECTION PUMP DRIVE GEAR)
(L)
13711VALVE, INTAKE
(L)
THA SOURCED PARTS
IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK=2T
(J)
13711ESEAL, INTAKE VALVE STEM OIL
(L)
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
(L)
13715VALVE, EXHAUST
(L)
THA SOURCED PARTS
IND SOURCED PARTS
(J)
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK=8
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
(L)
13716CAP, VALVE STEM
(L)
(J)
13741RETAINER, VALVE SPRING
(L),MADE IN IDN
(L),MADE IN THAILAND
(J)
13741BRETAINER, INTAKE VALVE SPRING
(L)
(J)
13741CRETAINER, EXHAUST VALVE SPRING
(L)
(J)
13750ADJUSTER ASSY, VALVE LASH
*555,(L)
(L)
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
*555,(L)
(L)
(J)
90105T0052
main90105-T0052
90105T0085
main90105-T0085
90105T0120
main90105-T0120
90105T0283
main90105-T0283
9010908304
main90109-08304
90119T0134
main90119-T0134
90119T0136
main90119-T0136
90119T0217
main90119-T0217
9155180625
main91551-80625
9155180635
main91551-80635
42 parts on this diagram · 2 diagrams in section
