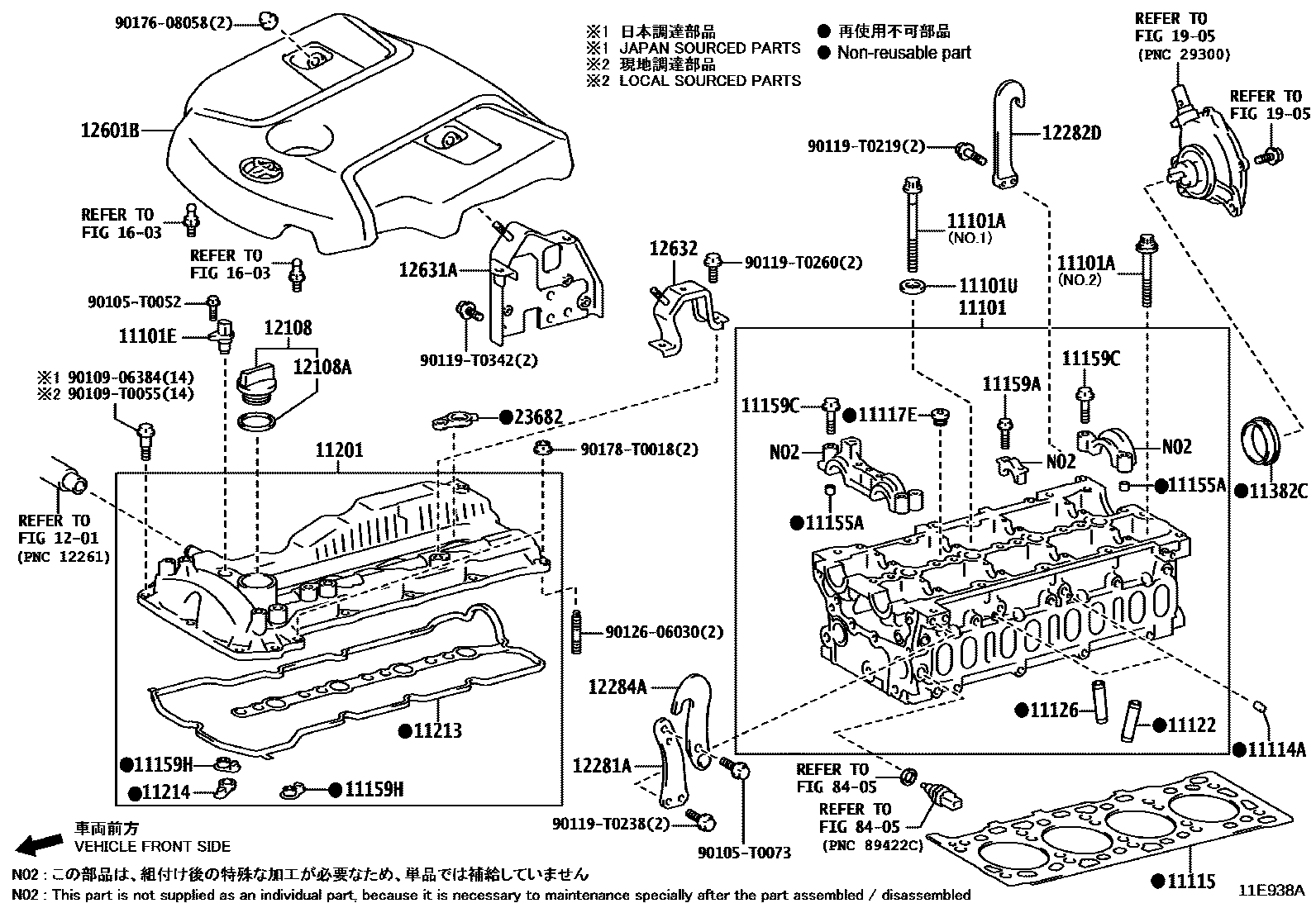

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
THA SOURCED PARTS
IND SOURCED PARTS
11101ABOLT(FOR CYLINDER HEAD SET)
(L),NO.1
(L),NO.2
11101ESENSOR, CAM POSITION
11101USPACER(FOR CYLINDER HEAD SET BOLT)
(L)
11114APIN, STRAIGHT
L=8,OD=5,(L)
11115GASKET, CYLINDER HEAD
(L)
MARK A,(L),REFER R/M
MARK B,(L),REFER R/M
MARK C,(L),REFER R/M
MARK D,(L),REFER R/M
MARK E,(L),REFER R/M
MARK A,(J),REFER R/M
MARK B,(J),REFER R/M
MARK C,(J),REFER R/M
MARK D,(J),REFER R/M
MARK E,(J),REFER R/M
(J)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(L)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
STD
STD,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS)
STD
O/S 0.05
O/S 0.05,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS)
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
STD
STD,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS)
STD
O/S 0.05
O/S 0.05,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS)
11155APIN, RING W/HEAD
(J)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.2
(J)
(L)
(L)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1,*651
(L)
NO.1,*657
NO.2,*651
NO.2,*657
NO.3,*651
NO.3,*657
11201COVER SUB-ASSY, CYLINDER HEAD
IDN SOURCED PARTS
11213GASKET, CYLINDER HEAD COVER
IDN SOURCED PARTS
(L)
JAPAN SOURCED PARTS
11214GASKET, CYLINDER HEAD COVER, NO.2
(L)
11382CRETAINER, CAMSHAFT OIL SEAL
(L)
1201
12108CAP SUB-ASSY, OIL FILLER
(L)
(J)
12108AGASKET(FOR OIL FILLER CAP)
(L)
(J)
12281AHANGER, ENGINE, NO.1
IDN SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
12282DHANGER, ENGINE, NO.2
IDN SOURCED PARTS
(L)
12284AHANGER, ENGINE, NO.1 UPPER
(L)
12601BCOVER SUB-ASSY, ENGINE, NO.1
12631ABRACKET, ENGINE COVER
THA SOURCED PARTS
IND SOURCED PARTS
12632BRACKET, ENGINE COVER, NO.2
MARK=1
1603
1905
23682GASKET, NOZZLE HOLDER
(L)
8405
90105T0052
main90105-T0052
90105T0073
main90105-T0073
9010906384
main90109-06384
90109T0055
main90109-T0055
90119T0219
main90119-T0219
90119T0238
main90119-T0238
90119T0260
main90119-T0260
90119T0342
main90119-T0342
9012606030
main90126-06030
9017608058
main90176-08058
90178T0018
main90178-T0018
41 parts on this diagram · 2 diagrams in section
