SWITCH & RELAY & COMPUTER

0001 1ENGINE,TRANSMISSION & TRANSFE0002 1ENGINE ROOM 0003 1ENGINE & ENGINE ROOM 0004 1ENGINE & ENGINE ROOM 0005 1ENGINE & TRANSFER 0006 1ENGINE ROOM 0007 1ENGINE & ENGINE ROOM 0008 1AIR CONDITIONER RELAY BLOCK 0009 1INSTRUMENT PANEL & COMBINATIO0010 1INSTRUMENT PANEL & COWL RELAY0011 1DOOR & FLOOR 0012 1ROOF,FLOOR & DOOR 0013 1REAR BODY

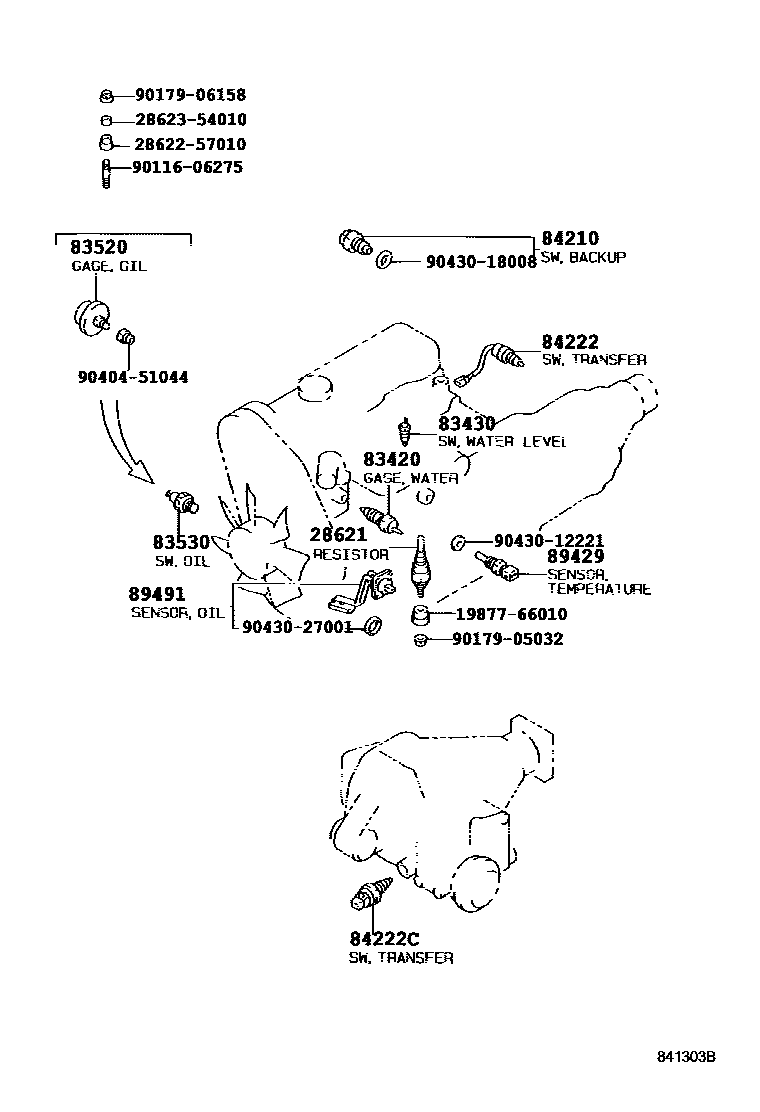

28621RESISTOR, GLOW PLUG

main28621-54080i2L#..LN10#,110,130,85,90..JPP198808

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVZN130..JPP199108-199511

main83420-16040iLN10#,110,130,85,90,RN106,110,YN106,110,85,90..JPP199208-199308

main83420-20020iLN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808-199208

83430SWITCH ASSY, WATER LEVEL SENDER

main83430-96440iLN130..JPP199001-199511

sub89428-60040

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14023iLN130..JPP198808-199511

DENSO

sub83520-35030

main83520-34010iKZN130,RN106,110,VZN130,YN110,90..JPP..(DLX,SR5)199208-199507

main83520-35020iKZN130..JPP199508-199511

sub83520-60050

main83520-35030iLN130..JPP199508-199511

sub83520-35031

main83520-55011iLN130..JPP198808-199511

YAZAKI

main83520-55011iLN108,110,90..JPP198808-199508

main83520-55011iLN108..JPP199508

W(TACHOMETER)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iRN106,110,YN106,110,85,90..JPP..(DLX,STD)198808-199208

sub83530-28030

main83530-14070iRN106,110,YN106,110,85,90..JPP..(DLX,STD)199208

sub83530-28010

main83530-30060iLN105,110,85,90..JPP198808

sub83530-60030

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F198808

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iLN10#..JPP..LHD199008

W(LSD)

main84222-35050iLN10#,110,RN106,110,YN106,110..JPP198808

main84222-35060iKZN130,LN130,VZN130..JPP..5F198908-199511

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35070iKZN130,LN130,VZN130..JPP198908-199511

89429SENSOR, OIL TEMPERATURE

main89422-20010iKZN130..JPP199308-199408

main89422-20010iLN10#,110,130,85,90..JPP198808-199408

ENGINE BLOCK

89491SENSOR, ENGINE OIL LEVEL

main89491-26110iLN85,90..JPP199208

sub89491-26111

main89491-35010iLN130..JPP199208-199511

sub89491-35011

main89491-35020iLN10#,110..JPP199208

main89491-35030iKZN130..JPP199308-199511

sub89491-35040

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

9011606275

main90116-06275

9017905032

main90179-05032

9017906158

main90179-06158

9040451044

main90404-51044

9043012221

main90430-12221

9043018008

main90430-18008

9043027001

main90430-27001

20 parts on this diagram · 13 diagrams in section
