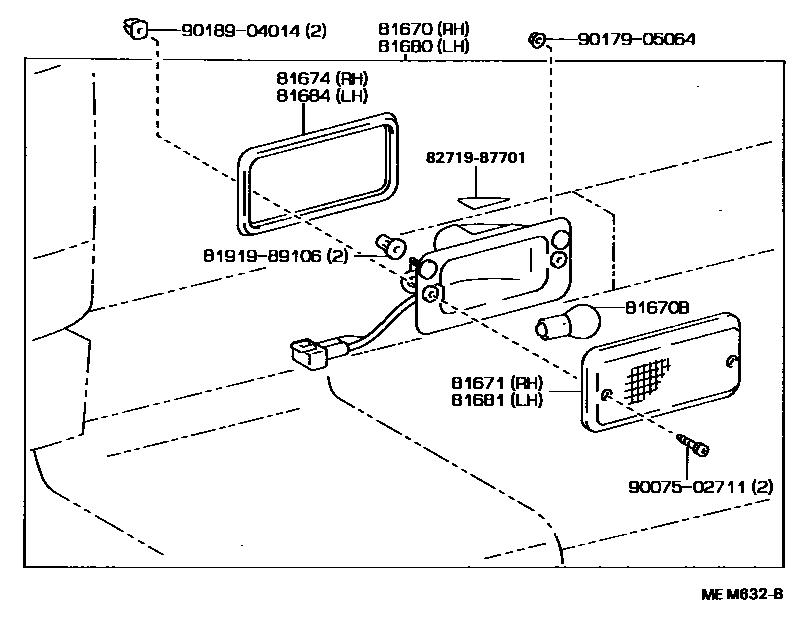

BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-89102iLN130,VZN130..JPP198908-199108

81670BBULB(FOR BACK-UP LAMP)

main99132-11210×2iLN130,VZN130..JPP198908-199108

12V 21W

81671LENS, BACK-UP LAMP, RH

main81671-89102iLN130,VZN130..JPP198908-199108

81674GASKET, BACK-UP LAMP BODY, RH

main81674-89102iLN130,VZN130..JPP198908-199108

81680LAMP ASSY, BACK UP, LH

main81680-89103iLN130,VZN130..JPP198908-199108

81681LENS, BACK-UP LAMP, LH

main81671-89102iLN130,VZN130..JPP198908-199108

81684GASKET, BACK UP LAMP BODY, LH

main81674-89102iLN130,VZN130..JPP198908-199108

8191989106

main81919-89106

8271987701COVER, WIRE HANRESS SERVICE HOLE(FOR CENTER PILLAR)

main82719-87701

9007502711

main90075-02711

9017905064

main90179-05064

9018904014

main90189-04014

12 parts on this diagram · 1 diagram in section
