TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

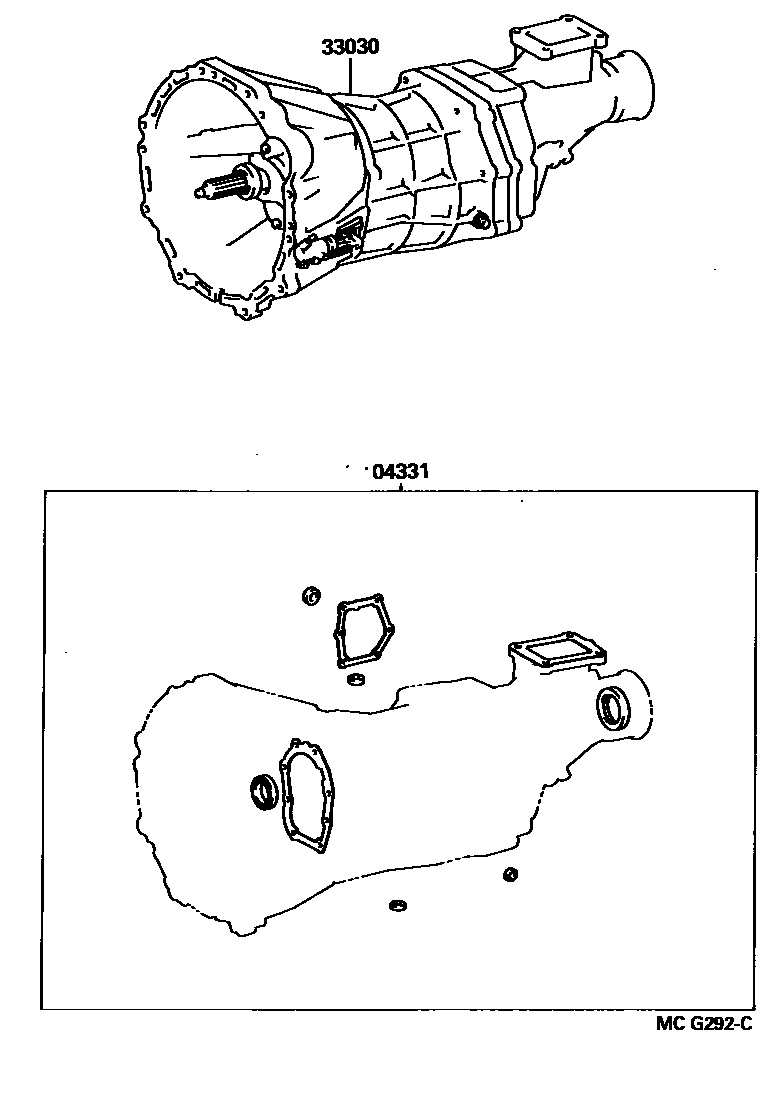

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-22040i198808-199110

main04331-34021i198908-199405

main04331-35160i198808-199708

main04331-35170i198808-199708

main04331-35200i199110-199708

main04331-35230i199405-199511

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-35730i198808-199008

main33030-35731i199008-199408

main33030-35780i198808-198907

main33030-35820i198808-198907

main33030-35860i198808-199110

main33030-35870i198808-199008

main33030-35871i199008-199201

main33030-35872i199201-199604

main33030-35873i199604-199708

main33030-3D080i198908-199008

main33030-3D081i199008-199108

main33030-3D083i199108-199405

main33030-3D090i198907-199408

main33030-3D100i198907-199708

main33030-3D200i199001-199008

main33030-3D201i199008-199108

main33030-3D203i199108-199405

main33030-3D330i199110-199208

main33030-3D331i199208-199708

main33030-3D380i199308-199405

main33030-3D470i199405-199511

main33030-3D480i199405-199511

main33030-3D490i199405-199511

2 parts on this diagram · 4 diagrams in section
