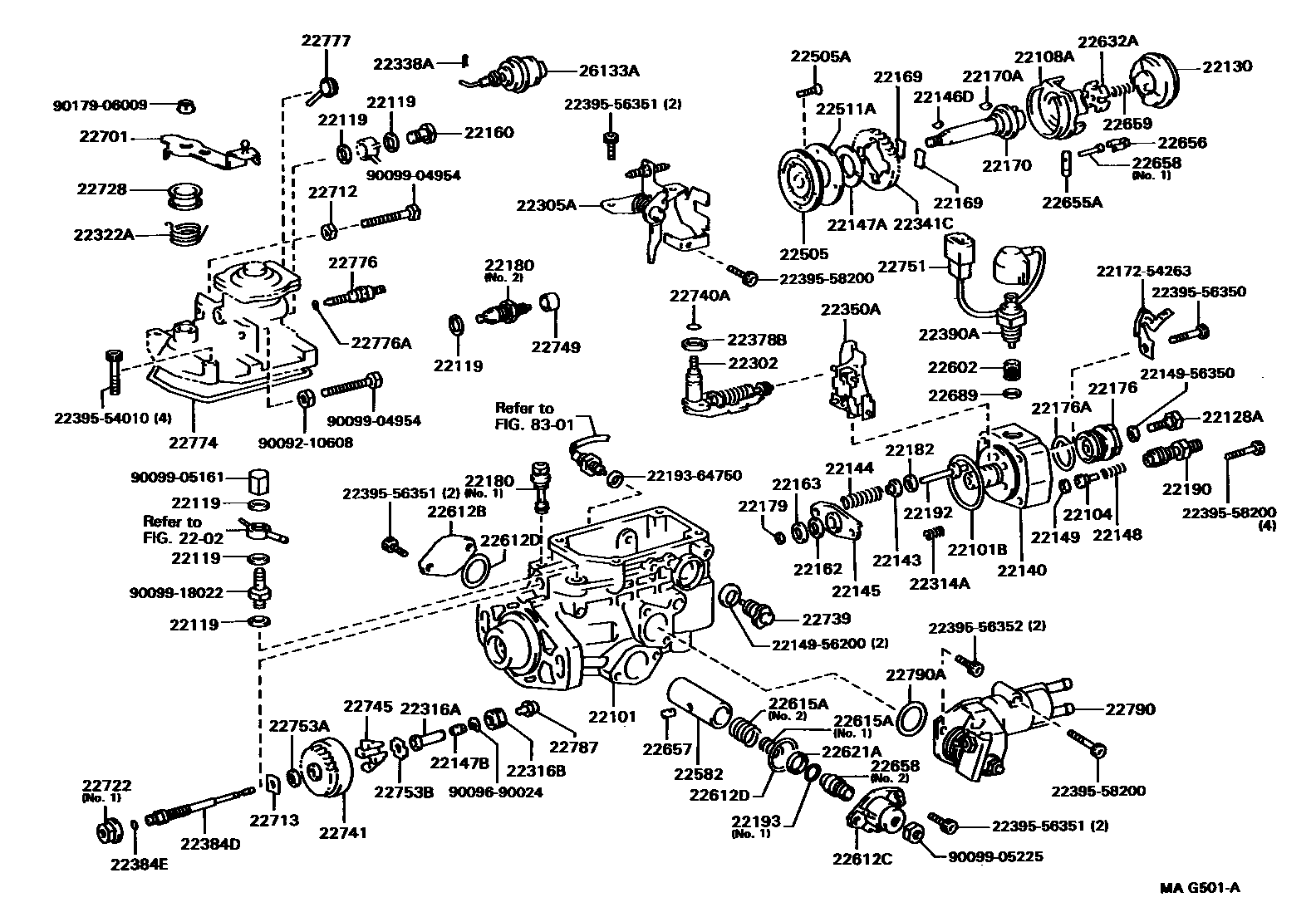

INJECTION PUMP BODY
2202INJECTION PUMP ASSEMBLY
22101HOUSING SUB-ASSY, INJECTION PUMP
main22101-5B320i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
FINLAND OR NORWAY SPEC; FINLAND SPEC; NORWAY SPEC
W(POWER STEERING); W(TACHO METER)
W(TACHO METER)
ISURAERU SPEC & W(POWER STEERING)
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
AUSTRIA SPEC
AUSTRIA SPEC
main22104-5B320×4i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
FINLAND OR NORWAY SPEC; FINLAND SPEC; NORWAY SPEC
ISURAERU SPEC & W(POWER STEERING)
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
AUSTRIA SPEC
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
AUSTRIA SPEC
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
AUSTRIA SPEC
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
22179SHIM, PLUNGER ADJUSTING
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
NO.1
NO.1
NO.2
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22190VALVE SUB-ASSY, SNUBBER
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
NO.1
NO.2
22302SHAFT SUB-ASSY, SPEED CONTROL
AUSTRIA SPEC
AUSTRIA SPEC
22305AIDLE-UP SUB-ASSY
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=1.00
ID=0.80
MARK 28
ID=0.75
ID=0.70
main22316-54730i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
ID=0.95,FINLAND OR NORWAY SPEC; ID=0.95,FINLAND SPEC; ID=0.95,NORWAY SPEC
ID=0.60
ID=0.75
ID=0.85
main22316-5B060i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
ID=0.65,FINLAND OR NORWAY SPEC; ID=0.65,FINLAND SPEC; ID=0.65,NORWAY SPEC
main22316-5B320i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
ID=0.85,FINLAND OR NORWAY SPEC; ID=0.85,FINLAND SPEC; ID=0.85,NORWAY SPEC
main22316-5B321i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
ID=1.15,FINLAND OR NORWAY SPEC; ID=1.15,FINLAND SPEC; ID=1.15,NORWAY SPEC
ID=0.80
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22322ASPRING, RETURN
AUSTRIA SPEC
22338APIN, LEVER CONNECTING
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
AUSTRIA SPEC
22378BWASHER, DRAIN SCREW
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
main22390-5B320i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
FINLAND OR NORWAY SPEC; FINLAND SPEC; NORWAY SPEC
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22582PISTON ASSY, TIMER
main22582-5B320i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
FINLAND OR NORWAY SPEC; FINLAND SPEC; NORWAY SPEC
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22612BCOVER, TIMER
NORWAY SPEC
22612CCOVER, TIMER
main22612-17010i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
FINLAND OR NORWAY SPEC; FINLAND SPEC; NORWAY SPEC
ISURAERU SPEC & W(POWER STEERING)
22612DRING, O(FOR TIMER COVER)
22615ASPRING, TIMER OUTER
K=1.7,L=27.9,NO.2
K=3.00,L=37.3
K=2.50,L=38.2
K=2.70,L=39.2,ISURAERU SPEC & W(POWER STEERING)
K=2.30,L=39.4
K=2.10
K=2.80,L=38.1,AUSTRIA SPEC
main22615-5B320i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
K=0.115,L=37.8,FINLAND OR NORWAY SPEC; K=0.115,L=37.8,FINLAND SPEC; K=0.115,L=37.8,NORWAY SPEC
main22615-5B321i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
K=0.095,L=39.2,FINLAND OR NORWAY SPEC; K=0.095,L=39.2,FINLAND SPEC; K=0.095,L=39.2,NORWAY SPEC
main22615-5B323i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
K=0.105,L=38.4,FINLAND OR NORWAY SPEC; K=0.105,L=38.4,FINLAND SPEC; K=0.105,L=38.4,NORWAY SPEC
K=0.10,L=40.4,NO.1
K=0.11,L=39.5,NO.1
K=0.12,L=38.8,NO.1
K=0.13,L=38.2,NO.1
22621AWASHER, TIMER ADJUSTING
T=0.5
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22656CLIP, TIMER
NO.1
NO.1
NO.2
22657CLIP, TIMER
22658STOPPER, TIMER
FINLAND SPEC & W(POWER STEERING) OR NORWAY SPEC & W(POWER STEERING),NO.2; NORWAY SPEC & W(POWER STEERING),NO.2
NO.2
NO.1
NO.1
W(TACHO METER PICK UP),NO.2
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
MARK 130
MARK 131
MARK 269, TYPE 1
MARK 270, TYPE 2
MARK 486
MARK 487
MARK 488
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22722NUT, GOVERNOR SHAFT ROCK
NO.2
NO.1
22728GUIDE, RETURN SPRING
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
AUSTRIA SPEC
main22740-64820i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
FINLAND OR NORWAY SPEC; FINLAND SPEC; NORWAY SPEC
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22749COLLAR, SMOKE SET ADJUSTING
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
main22751-5B320i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
FINLAND OR NORWAY SPEC; FINLAND SPEC; NORWAY SPEC
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
22777CAP, RUBBER(FOR BELLOWS)
22787PLUG, GOVERNOR SLEEVE
L=3.4
L=3.6
L=3.8
L=4.0
L=4.1
L=3.0
L=3.2
L=4.2
22790COVER SUB-ASSY, TIMER
W(TACHO METER PICK UP)
main22790-5B320i2L..LN105,110..JPP..LHD..T1..CBU; 2L..LN85,90..JPP..LHD..T1..CBU; 2L..LN85..JPP..TW1199208-199401
FINLAND OR NORWAY SPEC; FINLAND SPEC; NORWAY SPEC
22790ARING, O(FOR TIMER COVER)
26133AACTUATOR SET, IDLE-UP
8301METER
2214956200GASKET, DELIVERY VALVE
main22149-56200
2214956350GASKET, DELIVERY VALVE
main22149-56350
2217254263CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54263
2219364750RING, O(FOR LEVER CONNECTING PIN)
main22193-64750
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56350
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56352
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
9009210608
main90092-10608
9009690024
main90096-90024
9009904954
main90099-04954
9009905161
main90099-05161
9009905225
main90099-05225
9009918022
main90099-18022
9017906009
main90179-06009
