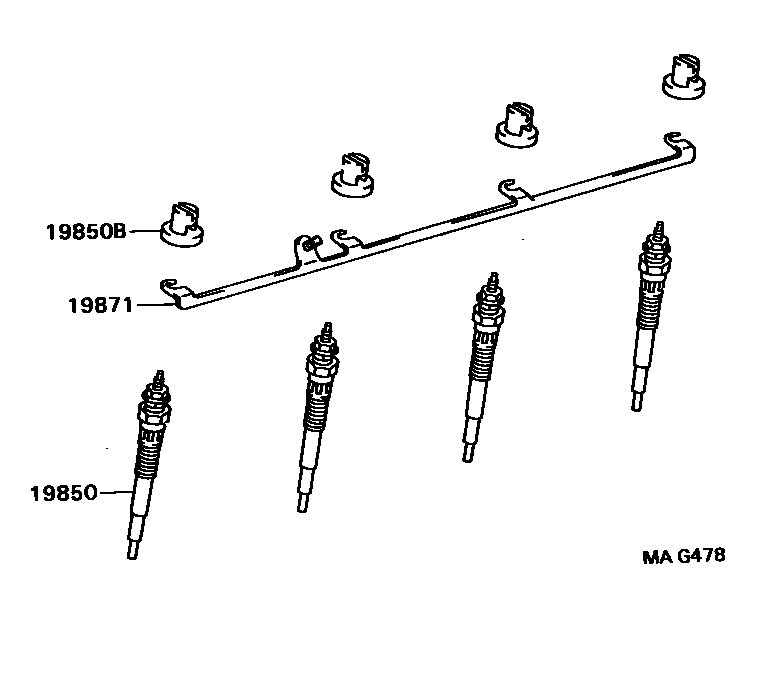

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

19850PLUG ASSY, GLOW

main19850-54090i2L#..LN10#,110,130,85,90..JPP198808

*BV-GV=12V-11V

main19850-67020i1KZT..KZN130..JPP199308-199511

*BV-GV=12V-11V

sub19850-67030

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i1KZT..KZN130..JPP199308-199511

19871CONNECTOR, GLOW PLUG NO.1

main19871-54020i2L#..LN10#,110,130,85,90..JPP198808

main19871-67020i1KZT..KZN130..JPP199308-199511

3 parts on this diagram · 8 diagrams in section
