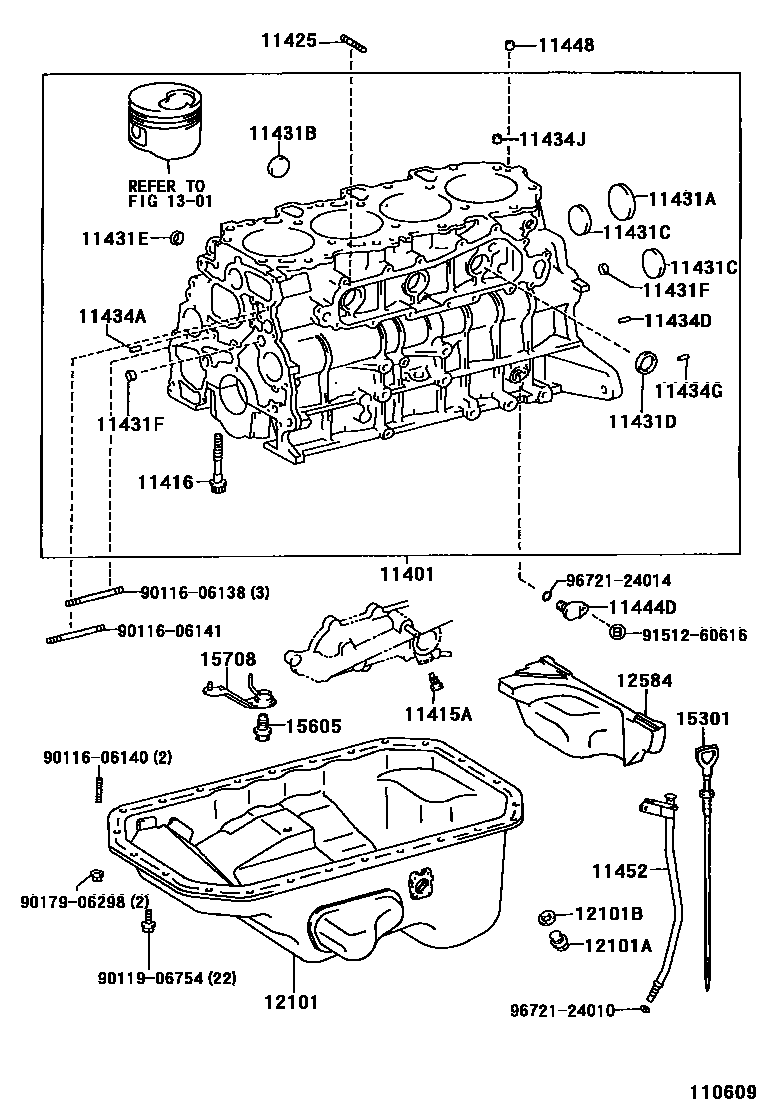

CYLINDER BLOCK

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-39495i22RE..RN106,110..JPP198808

main11401-59345i2L..LN105,110,85,90..JPP198808-199108

sub11401-59347

main11401-59347i2L..LN10#,110,85,90..JPP199108

main11401-59355i2LT..LN130..JPP199001-199108

sub11401-59357

main11401-59357i2LT..LN130..JPP199108-199511

main11401-69336i3VZE..VZN130..JPP198908-199108

sub11401-69525

main11401-69525i3VZE..VZN130..JPP199108-199511

main11401-69545i1KZT..KZN130..JPP199308-199503

sub11401-69546

sub13572-67041

sub13581-67041

sub90105-10398

main11401-69546i1KZT..KZN130..JPP199503-199511

sub11401-69547

main11401-79066i2Y..YN85,90..JPP198808-199408

main11401-79206i4Y..YN106,110..JPP198808-199408

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-53030i2L#..LN10#,110,130,85,90..JPP199402

main96431-53828i2L#..LN10#,110,130,85,90..JPP198808-199408

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-53007i22RE..RN106,110..JPP198808-199704

main90345-53030i2L#..LN105,110,130,85,90..JPP198907-199008

main90910-09087i1KZT..KZN130..JPP199308-199511

main96431-23814i3VZE..VZN130..JPP198908-199511

main96432-23814i2L..LN105,110,85,90..JPP198808-199408

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02032i2Y,4Y..YN106,110,85,90..JPP198808-199408

main90910-02042i22RE..RN106,110..JPP198808

main90910-02061i2L#..LN10#,110,130,85,90..JPP198808

main90910-02072i3VZE..VZN130..JPP198908-199511

sub90910-02176

main90910-02113i1KZT..KZN130..JPP199308-199511

11425BOLT, STUD(FOR OIL FILTER)

main90116-06141i1KZT..KZN130..JPP199308-199511

sub90116-06171

main90116-08157i2L#..LN10#,110,130,85,90..JPP198808-199511

main92112-60825i2L..LN10#,110,85,90..JPP199511-199705

main92112-80825i2L..LN10#,110,85,90..JPP199705-199708

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-35005i3VZE..VZN130..JPP199406-199511

main96411-01800i2Y,4Y..YN106,110,85,90..JPP198808-199408

main96411-42500i2L#..LN10#,110,130,85,90..JPP198808

main96411-43500i3VZE..VZN130..JPP198908-199406

main96411-64500i1KZT..KZN130..JPP199308-199511

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500i2Y..YN85,90..JPP198808-199408

main96411-44000i22RE..RN106,110..JPP198808

main96411-63500i1KZT..KZN130..JPP199308-199511

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-44000i1KZT..KZN130..JPP199308-199511

main96411-45000i2Y,4Y..YN106,110,85,90..JPP198808-199408

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90331-35002i1KZT..KZN130..JPP199308-199310

main90331-35004i1KZT..KZN130..JPP199310-199511

main96411-45000i2Y,4Y..YN106,110,85,90..JPP198808-199408

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-62000i1KZT..KZN130..JPP199308-199511

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main96411-41800i1KZT..KZN130..JPP199308-199411

main96411-61800i1KZT..KZN130..JPP199411-199511

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i2Y,4Y..YN106,110,85,90..JPP198808-199511

L=18,OD=8

main90253-11001i2L#..LN105,110,130,85,90..JPP198808-199012

L=11,OD=11

main90253-11021i22RE..RN106,110..JPP198808

L=8,OD=11

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i3VZE..VZN130..JPP198908-199208

L=14,OD=6

main90250-06015i3VZE..VZN130..JPP199208-199511

L=11,OD=6

main90250-06068i1KZT..KZN130..JPP199308-199511

L=11,OD=6

main90253-11001i2L#..LN105,110,130,85,90..JPP198808-199012

L=11,OD=11

main90253-11021i2L#..LN10#,110,130,85,90..JPP199012

L=8,OD=11

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i2L#..LN10#,110,130,85,90..JPP199502

main90250-10192i2L#..LN10#,110,130,85,90..JPP198808-199511

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15016i2Y,4Y..YN106,110,85,90..JPP198808-199511

main90253-16001i3VZE..VZN130..JPP198908-199511

11444DPLUG, HOLE

main11444-67020i1KZT..KZN130..JPP199308-199511

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54020i2L#..LN10#,110,130,85,90..JPP198808

main11448-67010i1KZT..KZN130..JPP199308-199511

11452GUIDE, OIL LEVEL GAGE

main11452-35010i22RE..RN106,110..JPP198808

main11452-40010i2Y,4Y..YN106,110,85,90..JPP198808-199408

main11452-54080i2L..LN105,110,85,90..JPP198808-199004

main11452-54110i2LT..LN130..JPP199001-199004

main11452-54110i2LT..LN130..JPP199004-199511

AUSTRIA SPEC

main11452-65011i3VZE..VZN130..JPP198908-199511

main11452-67020i1KZT..KZN130..JPP199308-199511

12101PAN SUB-ASSY, OIL

main12101-35040i22RE..RN106,110..JPP198808

main12101-54110i2L..LN85,90..JPP198808-199005

sub12101-54112

sub90341-12012

sub90430-12027

main12101-54112i2L..LN85,90..JPP199005-199208

sub12101-54113

main12101-54130i2L..LN105,110..JPP198808-199005

sub12101-54132

sub90341-12012

sub90430-12027

main12101-54132i2L..LN10#,110..JPP199005-199208

sub12101-54133

sub12129-54010

sub91651-60614

main12101-54133i2L..LN10#,110..JPP199208

main12101-54182i2L..LN85,90..JPP199208

sub12101-54183

main12101-54200i2LT..LN130..JPP199001-199004

sub12101-54201

main12101-54201i2LT..LN130..JPP199004-199005

sub12101-54202

sub90341-12012

sub90430-12027

main12101-54202i2LT..LN130..JPP199005-199208

sub12101-54310

main12101-54203i2LT..LN130..JPP199208-199511

sub12101-54320

main12101-65010i3VZE..VZN130..JPP198908-199105

sub12101-65011

main12101-65011i3VZE..VZN130..JPP199105-199511

sub12101-65012

main12101-67080i1KZT..KZN130..JPP199308-199511

main12101-71021i2Y..YN85,90..JPP198808-199408

main12101-73012i4Y..YN106,110..JPP198808-199408

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1KZT..KZN130..JPP198808-199511

main90341-12026i22RE..RN106,110..JPP199203

sub90341-12012

main90341-18089i2L#..LN105,110,130,85,90..JPP198808-199005

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12019i2Y,4Y..YN106,110,85,90..JPP198808-199010

sub90430-12028

main90430-12020i3VZE..VZN130..JPP198908-199106

sub90430-12028

main90430-12021i22RE..RN106,110..JPP198808-199004

sub90430-12028

main90430-12027i1KZT..KZN130..JPP199004-199312

sub90430-12031

main90430-12031i22RE..RN106,110..JPP199108-199511

main90430-18013i2L..LN105,110,85,90..JPP198808-198909

sub90430-18023

main90430-18026i2L#..LN105,110,130,85,90..JPP198909-199005

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-54011i2L..LN85,90..JPP199508-199510

main12584-54060i2L..LN85,90..JPP199510

sub12584-54080

main12584-67020i1KZT..KZN130..JPP199308-199511

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-35020i22RE..RN106,110..JPP198808

main15301-54070i2L#..LN10#,110,130,85,90..JPP198808

main15301-65010i3VZE..VZN130..JPP198908-199511

main15301-67020i1KZT..KZN130..JPP199308-199511

main15301-72010i2Y,4Y..YN106,110,85,90..JPP198808-199408

15605VALVE SUB-ASSY, OIL CHECK

main15605-54010i2L#..LN10#,110,130,85,90..JPP198808-199511

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-54030i2L..LN105,110,85,90..JPP198808-198908

sub15708-54060

main15708-54060i2L#..LN10#,110,130,85,90..JPP198908

main15708-67010i1KZT..KZN130..JPP199308-199511

sub15708-30010

9011606138

main90116-06138

9011606140

main90116-06140

9011606141

main90116-06141

9011906754

main90119-06754

9017906298

main90179-06298

9151260616

main91512-60616

9672124010

main96721-24010

9672124014

main96721-24014

34 parts on this diagram · 7 diagrams in section
