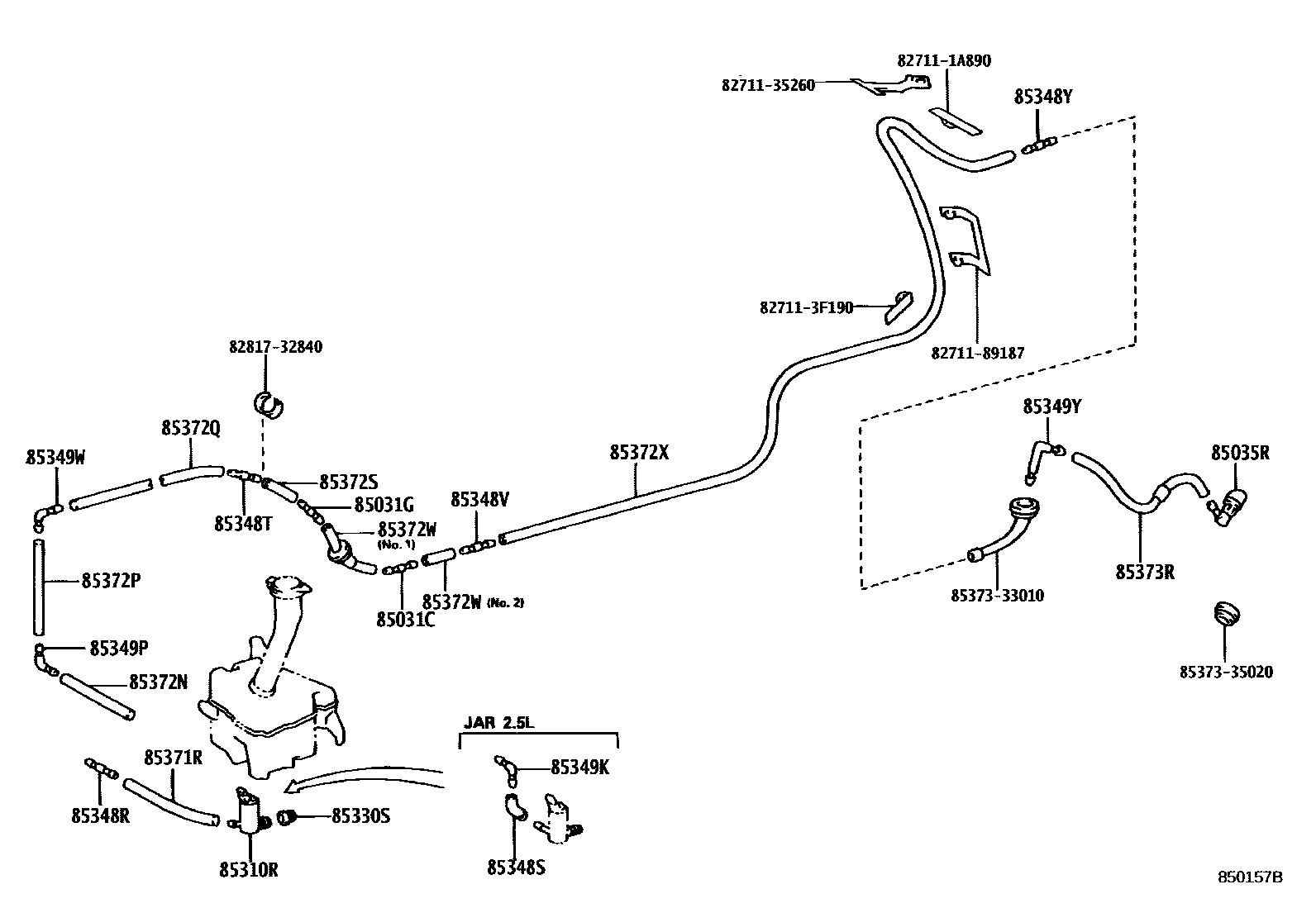

REAR WASHER
85031CVALVE SUB-ASSY, WASHER
sub85375-12520
85031GVALVE, REAR WASHER, NO.3
85035RNOZZLE SUB-ASSY, REAR WASHER
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85349WJOINT, REAR WASHER ELBOW, NO.4
85349YJOINT, REAR WASHER ELBOW, NO.5
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=150),CANADA SPEC & W(REAR WIPER) OR W(REAR WIPER)
L=1450(*H,L=150),W(REAR WIPER)
L=1000(*H,L=320)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1800(*H,L=140)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1800(*H,L=150)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
*H,L=450
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=40)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=40),NO.2
L=1800(*H,L=740),NO.1
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=3300(*H,L=2950),NO.2
L=4985(*H,L=3980),NO.1
L=1800(*H,L=1130),NO.1
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=200)
L=1450(*H,L=175)
827111A890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A890
8271135260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35260
827113F190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F190
8271189187WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-89187
8281732840PROTECTOR, WIRING HARNESS, NO.1
main82817-32840
8537333010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-33010
8537335020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-35020
29 parts on this diagram · 2 diagrams in section
