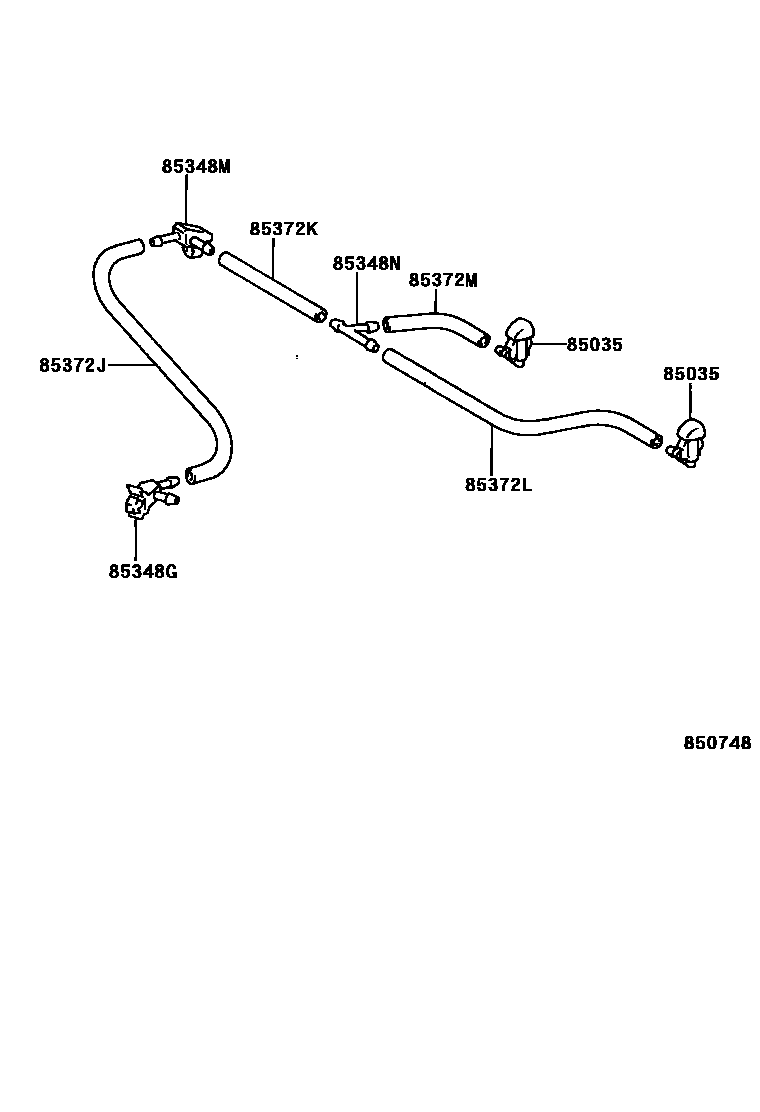

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
sub85381-12050
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=120)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=320)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=250)
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=720)
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
L=1450(*H,L=170)
10 parts on this diagram · 3 diagrams in section
