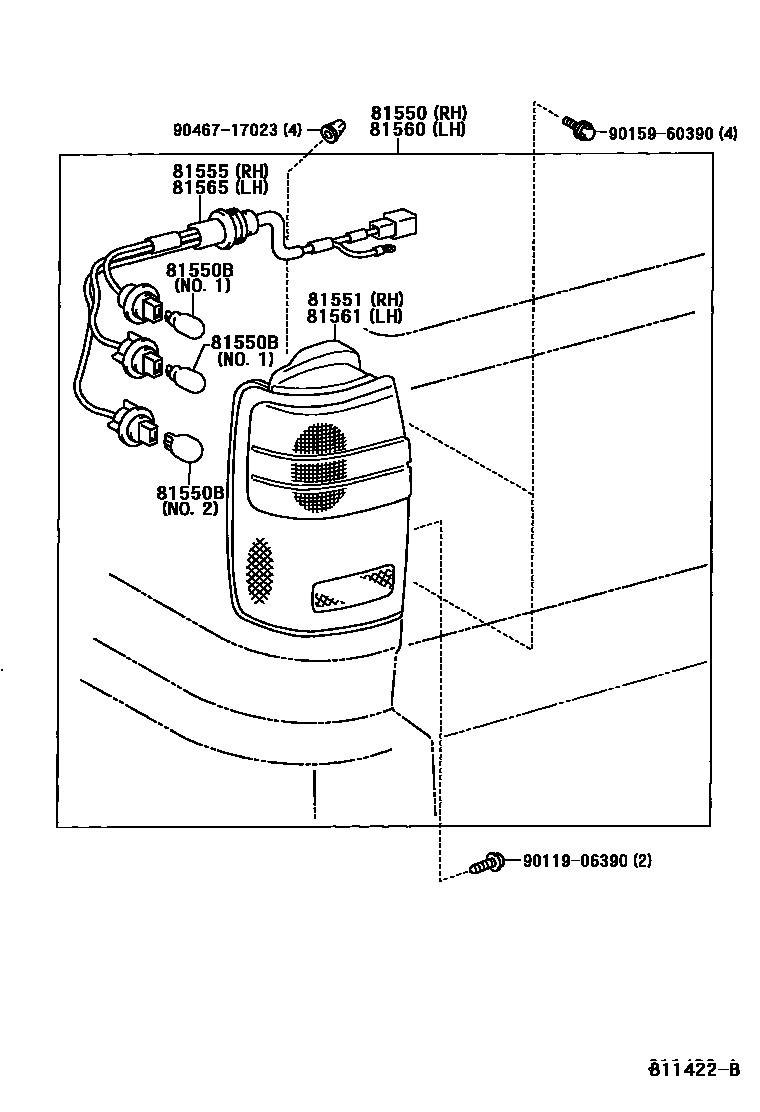

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-35120iRZN18#,VZN18#199511-199701

main81550-35121iRZN18#,VZN18#199701-199708

sub81550-35120

main81550-35170iRZN18#,VZN18#199708-199807

sub81550-35120

main81550-35210iRZN18#,VZN18#199807-200008

sub81550-35120

main81550-35240iVZN18#200008

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11059iVZN18#200008

12V 16W,NO.1

main90981-13043iRZN18#,VZN18#199511-200008

12V 21W,NO.1

main90981-13044iRZN18#,VZN18#199511-200008

12V 21/5W,NO.2

main90981-13044iVZN18#200008

12V 21/5W,NO.3

main90981-15011iVZN18#200008

12V 21W,AMBER,NO.2

81551LENS, REAR COMBINATION LAMP, RH

main81551-35120iRZN18#,VZN18#199511-199701

main81551-35121iRZN18#,VZN18#199701-200008

sub81551-35120

main81551-35240iVZN18#200008

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-35120iRZN18#,VZN18#199511-199708

sub81555-35070

main81555-35170iRZN18#,VZN18#199708-199807

sub81555-35160

main81555-35210iRZN18#,VZN18#199807-200008

sub81555-35160

main81555-35240iVZN18#200008

81560LAMP ASSY, REAR COMBINATION, LH

main81560-35120iRZN18#,VZN18#199511-199701

main81560-35121iRZN18#,VZN18#199701-200008

sub81560-35120

main81560-35200iVZN18#200008

81561LENS, REAR COMBINATION LAMP, LH

main81561-35120iRZN18#,VZN18#199511-199701

main81561-35121iRZN18#,VZN18#199701-200008

sub81561-35120

main81561-35200iVZN18#200008

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-35120iRZN18#,VZN18#199511-200008

sub81555-35070

main81565-35200iVZN18#200008

9011906390

main90119-06390

9015960390

main90159-60390

9046717023

main90467-17023

10 parts on this diagram · 2 diagrams in section
