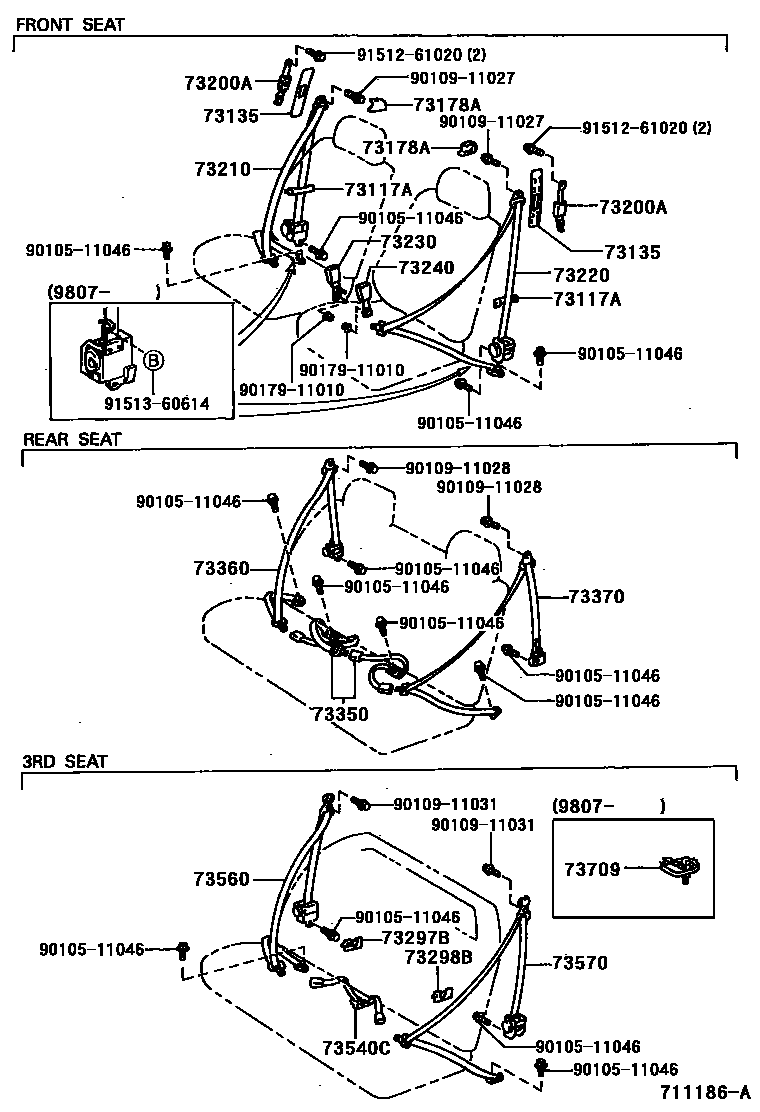

SEAT BELT
73135COVER, SHOULDER BELT ANCHORAGE PLATE
73178ACAP, SEAT BELT ANCHOR COVER
73210BELT ASSY, FRONT SEAT OUTER, RH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
GRAY,TRIM1#
OAK,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
GRAY,TRIM1#
OAK,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
MD.OAK,TRIM4#
MD.MOON MIST,TRIM1#
MD.CHARCOAL,TRIM1#
MD.OAK,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
W(SPORT SEAT(FA**/FB**)),MD.MOON MIST,TRIM1#
MD.MOON MIST,TRIM1#
LEATHER SPORT SEAT(LK**) OR SPORT SEAT(YH**),MD.MOON MIST,TRIM1#
W(LEATHER SPORT SEAT(LG**)),MD.MOON MIST,TRIM1#
SEAT = TYPE C-*104,MD.CHARCOAL,TRIM1#
LEATHER SPORT SEAT(LK**) OR SPORT SEAT(YH**),OAK,TRIM4#
OAK,TRIM4#
W(SPORT SEAT(FA**/FB**)),MD.OAK,TRIM4#
OAK,TRIM4#
MD.OAK,TRIM4#
MD.MOON MIST,TRIM1#
SEAT = TYPE D OR TYPE E-*104,MD.CHARCOAL,TRIM1#
OAK,TRIM4#
SEAT = TYPE D OR TYPE E-*104,MD.OAK,TRIM4#
73297BCOVER, QUARTER TRIM BELT HOLE, RH
73298BCOVER, QUARTER TRIM BELT HOLE, LH
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73540CBELT ASSY, REAR NO.2 SEAT LAP TYPE
73560BELT ASSY, REAR NO.2 SEAT, OUTER RH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
73570BELT ASSY, REAR NO.2 SEAT, OUTER LH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
73709BRACKET SUB-ASSY, TETHER ANCHOR
9010511046
main90105-11046
9010911027
main90109-11027
9010911028
main90109-11028
9010911031
main90109-11031
9017911010
main90179-11010
9151261020
main91512-61020
9151360614
main91513-60614
24 parts on this diagram · 1 diagram in section
