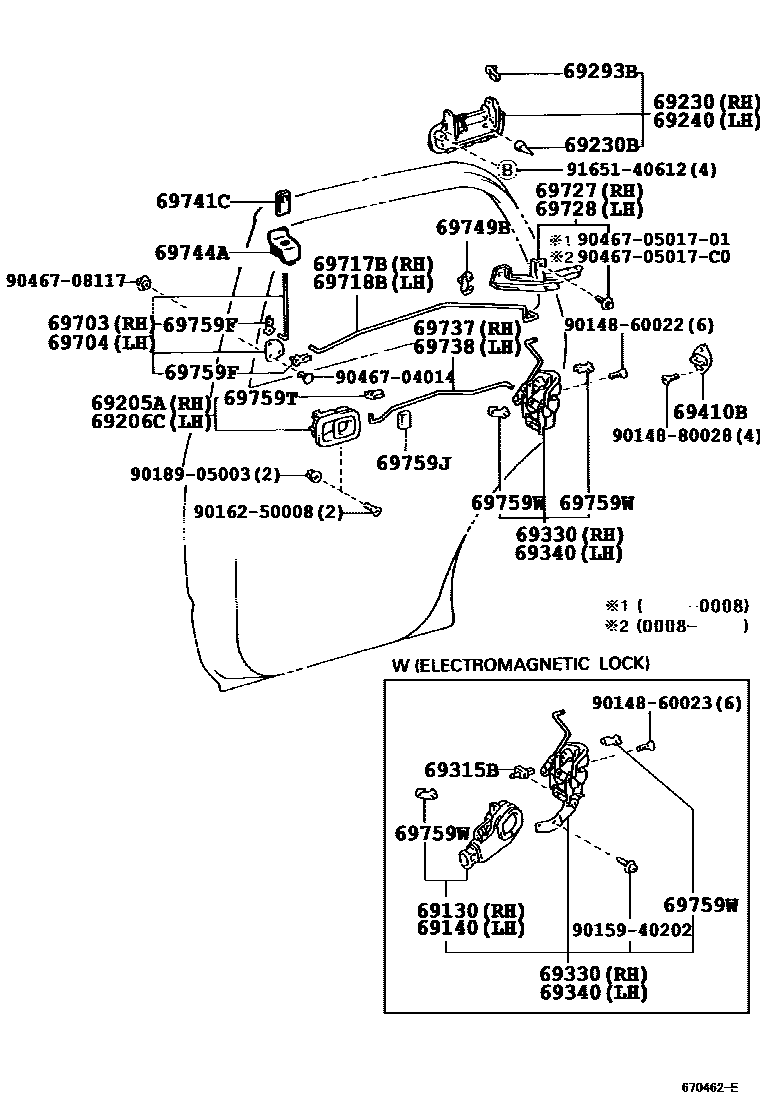

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
W(SECURITY SYSTEM)
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
W(SECURITY SYSTEM)
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
WHITE,056
DK BROWNISH GRAY MM,1A1
WARM GRAY PEARL ME,1A5
BLACK,202
RED,3H7
RED MM,3K4
RED,3L5
DK.TEAL GREEN MC.,751
LT.BLUE M.M.,8L6
DK.BLUE M.M.,8L7
GRAYISH PURPLE M.M.,926
NO PAINT REQ.
WHITE,056
DK BROWNISH GRAY MM,1A1
WARM GRAY PEARL ME.,1A5
BLACK,202
RED MM,3K4
RED,3L5
DK.TEAL GREEN MC.,751
LT.BLUE M.M.,8L6
DK.BLUE M.M.,8L7
GRAYISH PURPLE ME.,926
NO PAINT REQ.
WHITE,K72 ,056
WHITE,K72
WHITE,K82
WHITE,056
LIMITED PEARL PAINT(USA),WHITE PM,KF7
WARM GRAY PEARL ME.,K84
WARM GRAY PEARL ME.,1A5
SILVER ME.,K73 ,K85
SILVER ME.,1C0
SILVER ME.,KF8 ,K73
SILVER ME.,K73 ,1C0
GRAY ME.,KF9 ,1D2
GRAY ME.,KF9 ,KG0
BADLANDS(CANADA),GRAY ME.,KF9
BLACK,KG1
BLACK,KA3 ,202
BLACK,202
BADLANDS(CANADA),BLACK,KA3
BLACK,K87
RED MM,K89
RED MM,3K4
RED MM,KG2
RED MM,KG2 ,KH6 ,3K4
RED MM,KG2 ,3K4
BADLANDS(CANADA),RED MM,KH6
RED,3L5
COPPER ME.,K90
COPPER ME.,4P5
CHAMPAGNE M.M.,KG4 ,587
CHAMPAGNE M.M.,KG4 ,KG5
DK. GREEN MC.,6Q7
DK. GREEN MC.,K79 ,K92
DK. GREEN MC.,K79 ,6Q7
DK. GREEN MC.,KG6
DK. GREEN MC.,KG6 ,6Q7
AQUA ME.,KG7
AQUA ME.,KG7 ,768
DK.BLUE M.M.,KG9 ,8L7
DK.BLUE M.M.,KG9
DK.BLUE M.M.,8L7
DK.BLUE M.M.,KG9 ,KH7 ,8L7
BADLANDS(CANADA),DK.BLUE M.M.,KH7
BLUE ME.,8N1
PLATED,CHROME PACKAGE(USA),GRAY ME.,1D2
PLATED,CHROME PACKAGE(USA),BLACK,202
PLATED,CHROME PACKAGE(USA),RED MM,3K4
PLATED,CHROME PACKAGE(USA),DK.BLUE M.M.,8L7
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
NO PAINT REQ.
WHITE,056
DK BROWNISH GRAY MM,1A1
WARM GRAY PEARL ME,1A5
BLACK,202
RED,3H7
RED MM,3K4
RED,3L5
DK.TEAL GREEN MC.,751
LT.BLUE M.M.,8L6
DK.BLUE M.M.,8L7
GRAYISH PURPLE M.M.,926
NO PAINT REQ.
WHITE,056
DK BROWNISH GRAY MM,1A1
WARM GRAY PEARL ME.,1A5
BLACK,202
RED MM,3K4
RED,3L5
DK.TEAL GREEN MC.,751
LT.BLUE M.M.,8L6
DK.BLUE M.M.,8L7
GRAYISH PURPLE ME.,926
NO PAINT REQ.
WHITE,K72
WHITE,K72 ,056
WHITE,K82
WHITE,056
LIMITED PEARL PAINT(USA),WHITE PM,KF7
WARM GRAY PEARL ME.,K84
WARM GRAY PEARL ME.,1A5
SILVER ME.,KF8 ,K73
SILVER ME.,K73 ,K85
SILVER ME.,1C0
SILVER ME.,K73 ,1C0
GRAY ME.,KF9 ,KG0
GRAY ME.,KF9 ,1D2
BADLANDS(CANADA),GRAY ME.,KF9
BLACK,KA3 ,202
BLACK,202
BLACK,K87
BLACK,KG1
BADLANDS(CANADA),BLACK,KA3
RED MM,3K4
RED MM,K89
RED MM,KG2
RED MM,KG2 ,3K4
RED MM,KG2 ,KH6 ,3K4
BADLANDS(CANADA),RED MM,KH6
RED,3L5
COPPER ME.,K90
COPPER ME.,4P5
CHAMPAGNE M.M.,KG4 ,KG5
CHAMPAGNE M.M.,KG4 ,587
DK. GREEN MC.,6Q7
DK. GREEN MC.,K79 ,K92
DK. GREEN MC.,KG6
DK. GREEN MC.,K79 ,6Q7
DK. GREEN MC.,KG6 ,6Q7
AQUA ME.,KG7 ,768
AQUA ME.,KG7
DK.BLUE M.M.,KG9 ,8L7
BADLANDS(CANADA),DK.BLUE M.M.,KH7
DK.BLUE M.M.,8L7
DK.BLUE M.M.,KG9
DK.BLUE M.M.,KG9 ,KH7 ,8L7
BLUE ME.,8N1
*CR,CHROME PACKAGE(USA),GRAY ME.,1D2
*CR,CHROME PACKAGE(USA),BLACK,202
*CR,CHROME PACKAGE(USA),RED MM,3K4
*CR,CHROME PACKAGE(USA),DK.BLUE M.M.,8L7
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
NATURAL
LH
YELLOW
69315BRETAINER, REAR DOOR LOCK SOLENOID
W(ELECTROMAGNETIC LOCK)
69330LOCK ASSY, REAR DOOR, RH
W(ELECTROMAGNETIC LOCK)
W(ELECTROMAGNETIC LOCK)
69340LOCK ASSY, REAR DOOR, LH
W(ELECTROMAGNETIC LOCK)
W(ELECTROMAGNETIC LOCK)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69737LINK, REAR DOOR INSIDE LOCKING, RH
69738LINK, REAR DOOR INSIDE LOCKING, LH
69741CKNOB, REAR DOOR LOCK CONTROL
69744ACOVER, DOOR LOCK CONTROL KNOB
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
NATURAL
LIGHT BLUE
RED
PINK
69759JSILENCER, DOOR LOCK LINK
69759TSNAP, REAR DOOR INSIDE HANDLE
LH
GRAY
RH
GREEN
69759WSNAP, REAR DOOR LOCK CONTROL LINK
YELLOW
BROWN
9014860022
main90148-60022
9014860023
main90148-60023
9014880028
main90148-80028
9015940202
main90159-40202
9016250008
main90162-50008
9018905003
main90189-05003
9046704014
main90467-04014
904670501701
main90467-0501701
9046705017C0
main90467-05017C0
9046708117
main90467-08117
9165140612
main91651-40612
38 parts on this diagram · 1 diagram in section
