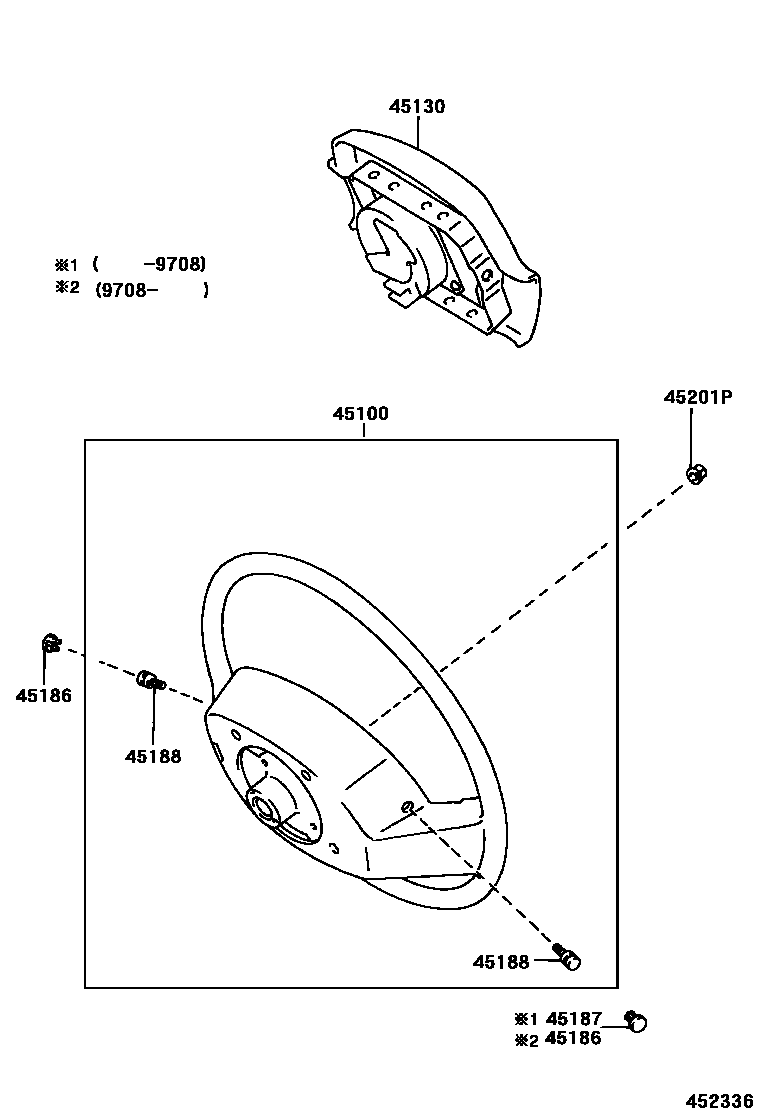

STEERING WHEEL
45100WHEEL ASSY, STEERING
2-SPOKE,LEATHER,LEATHER,W(AIR BAG & CRUISE CONTROL),BLACK,TRIM1#,4#
2-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM4#
4-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM1#,4#
4-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#
4-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM1#,4#
4-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#
2-SPOKE,URETHANE,BLACK,TRIM1#,4#
sub45100-26210
2-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#,4#
2-SPOKE,URETHANE,URETHANE,W(AIR BAG & CRUISE CONTROL),BLACK,TRIM1#,4#
4-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#,4#
4-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#,4#
4-SPOKE,LEATHER,BLACK,TRIM1#,4#
4-SPOKE,LEATHER,OAK,TRIM4#
45130BUTTON ASSY, HORN
BLACK,TRIM4#
BLACK,TRIM1#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
W(CRUISE CONTROL),BLACK,TRIM4#
W(CRUISE CONTROL),BLACK,TRIM1#,4#
45187COVER, STEERING WHEEL, LOWER NO.3
45188SCREW, STEERING WHEEL PAD ATTACHING
L=16.3,W(CRUISE CONTROL)
L=16.3
L=15.5
L=15.5,W(CRUISE CONTROL)
45201PNUT, STEERING WHEEL SET
6 parts on this diagram · 2 diagrams in section
