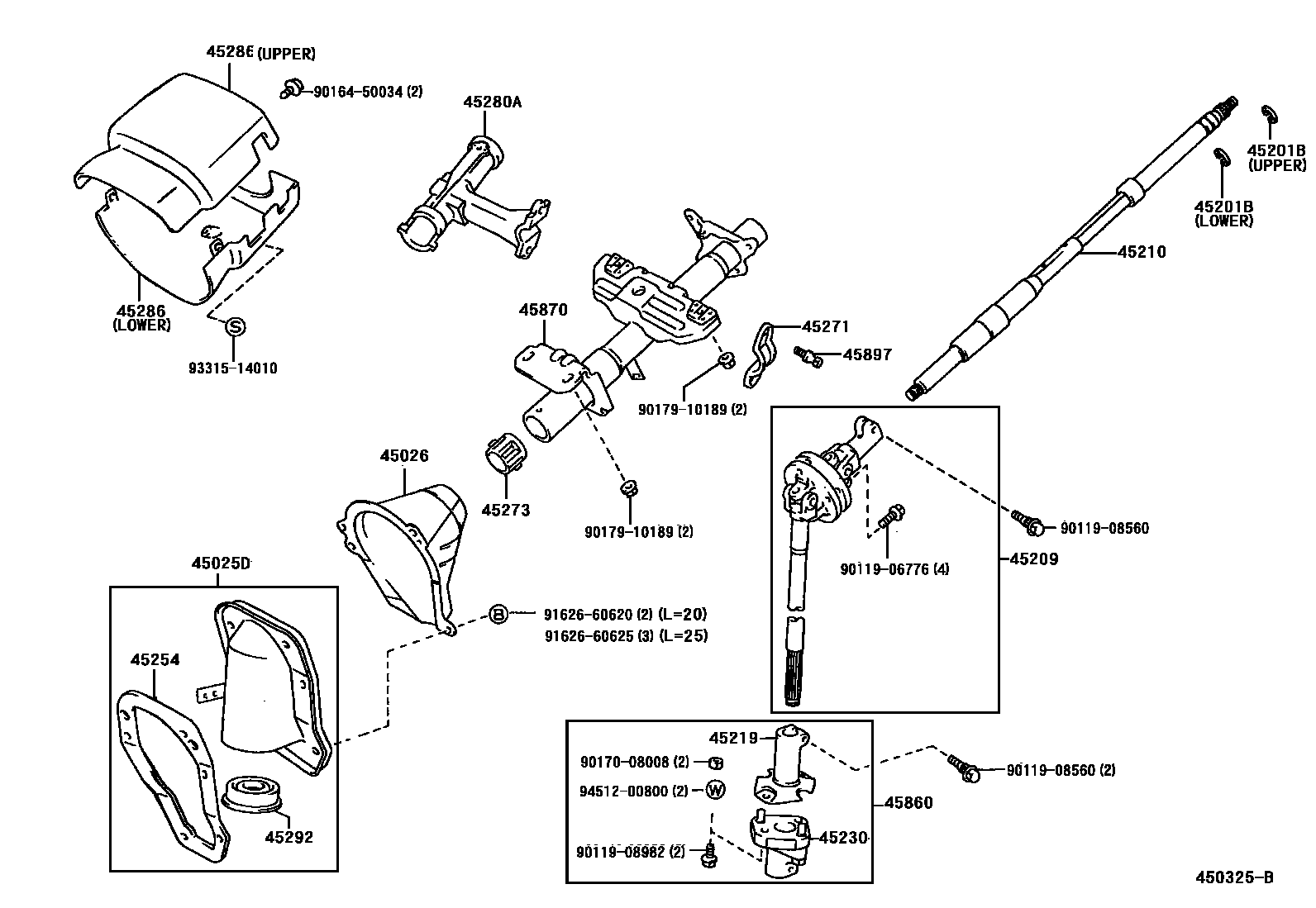

STEERING COLUMN & SHAFT

0001 1 0002 1W(TILT STEERING)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-35290iRZN18#,VZN18#199511-199708

main45025-35350iRZN18#,VZN18#199708-200008

main45025-35360iVZN18#200008

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-35040iRZN18#,VZN18#199511

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iRZN18#;VZN18#..LULI,SR5V199511

T=1.20,W(TILT STEERING)

main90520-17042iRZN18#,VZN18#..SR5B,SR5V199511-200008

T=1.20,LOWER

main90520-17269iRZN18#,VZN18#..SR5B,SR5V199511-200008

T=1.20,UPPER

45209YOKE SUB-ASSY, STEERING SLIDING

main45290-35020iRZN18#,VZN18#..SR5B,SR5V199511-199706

main45290-35021iRZN18#,VZN18#..SR5B,SR5V199706-199708

main45290-35030iRZN18#,VZN18#199511-199706

W(TILT STEERING)

main45290-35031iRZN18#,VZN18#199706-199708

W(TILT STEERING)

main45290-35040iRZN18#,VZN18#199708

45210SHAFT ASSY, STEERING MAIN

main45210-35200iRZN18#,VZN18#..SR5B,SR5V199511-199906

main45210-35210iVZN18#..LULI199511-199708

W(TILT STEERING)

main45210-35220iRZN18#,VZN18#199708-199712

W(TILT STEERING)

main45210-35221iRZN18#,VZN18#199712

W(TILT STEERING)

45219YOKE, STEERING SLIDING

main45209-35100iRZN18#,VZN18#199511-199706

main45209-35101iRZN18#,VZN18#199706

W(TILT STEERING)

45230COUPLING ASSY, FLEXIBLE

main45230-35090iVZN18#..LULI199511-199807

45254SHIELD, STEERING COLUMN HOLE

main45254-35130iRZN18#,VZN18#199511

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iRZN18#,VZN18#..SR5B,SR5V199511-199906

main45271-12060iRZN18#,VZN18#199511

W(TILT STEERING)

45273BUSH, STEERING MAIN SHAFT

main45273-16010iRZN18#,VZN18#199511-199711

main45273-16020iRZN18#,VZN18#199711

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-35290iRZN18#..5F199511-200008

main45280-35300iRZN18#,VZN18#..4FC..SR5B199511-199906

main45280-35310iRZN18#,VZN185..5F199511-200008

W(TILT STEERING)

main45280-35320iRZN18#,VZN18#..4FC..(SR5B,SR5V)199511

W(TILT STEERING)

main45280-35320iVZN18#..LULI199511-199807

main45280-35340iVZN185..5F199807-199906

W(THEFT-DETERRENT SYSTEM)

main45280-35350iVZN18#..4FC..SR5V199807-199906

W(THEFT-DETERRENT SYSTEM)

main45280-35360iVZN185..5F199807-200008

W(THEFT-DETERRENT SYSTEM & TILT STEERING)

main45280-35370iVZN18#..4FC..(LULI,SR5V)199807

W(THEFT-DETERRENT SYSTEM & TILT STEERING)

45286COVER, STEERING COLUMN

main45286-35410-C0iRZN18#,VZN18#..SR5B199511-199906

BLACK,TRIM1#,4#,UPPER

main45286-35420-C0iRZN18#,VZN18#..SR5B,SR5V199511-200008

W(TILT STEERING),BLACK,TRIM1#,4#,UPPER

main45286-35420-C0iVZN18#..LULI199511-199708

BLACK,TRIM4#,UPPER

main45286-35420-C0iVZN18#..SR5B,SR5V200008

W(TILT STEERING),BLACK,TRIM1#,4#

main45286-35420-E0iVZN18#..LULI199708-200008

OAK,TRIM4#,UPPER

main45286-35420-E0iVZN18#..LULI200008

OAK,TRIM4#

main45287-35290-C0iRZN18#,VZN18#..SR5B,SR5V199511-199906

BLACK,TRIM1#,4#,LOWER

main45287-35300-C0iRZN18#,VZN18#..SR5B,SR5V199511

W(TILT STEERING),BLACK,TRIM1#,4#,LOWER

main45287-35300-C0iVZN18#..LULI199511-199708

BLACK,TRIM4#,LOWER

main45287-35300-E0iVZN18#..LULI199708

OAK,TRIM4#,LOWER

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35080iRZN18#,VZN18#199511-199708

main45292-35090iRZN18#,VZN18#199708

45860SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45860-35170iRZN18#,VZN18#199511-199706

main45860-35171iRZN18#,VZN18#199706

W(TILT STEERING)

45870TUBE ASSY, STEERING COLUMN

main45870-35320iRZN18#,VZN18#..SR5B,SR5V199608-199906

main45870-35330iRZN18#,VZN18#..SR5B,SR5V199511-199608

main45870-35340iVZN18#..LULI199608-199708

W(TILT STEERING)

main45870-35350iRZN18#,VZN18#..SR5B,SR5V199511-199608

W(TILT STEERING)

main45870-35360iRZN18#,VZN18#199708

W(TILT STEERING)

45897BOLT, STEERING LOCK SET

main45897-12020iRZN18#,VZN18#199511

9011906776

main90119-06776

9011908560

main90119-08560

9011908982

main90119-08982

9016450034

main90164-50034

9017008008

main90170-08008

9017910189

main90179-10189

9162660620

main91626-60620

9162660625

main91626-60625

9331514010

main93315-14010

9451200800

main94512-00800

26 parts on this diagram · 2 diagrams in section
