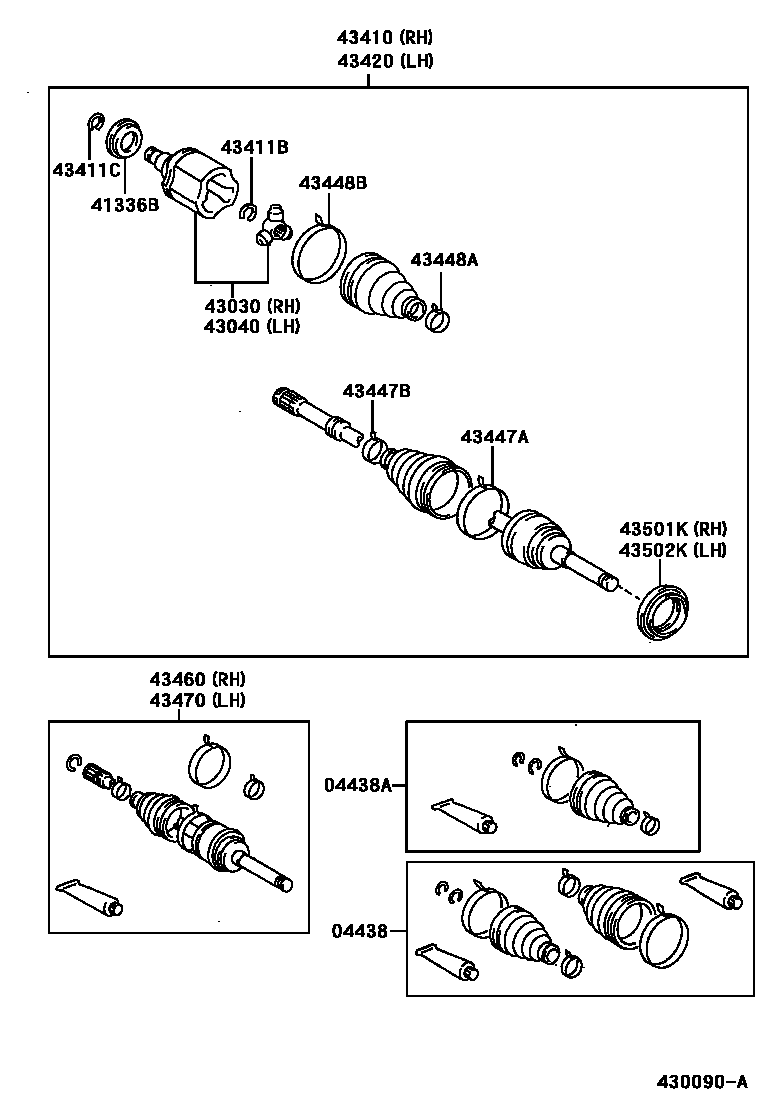

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-35030×2iRZN185,VZN185199511-200009

main04438-35060×2iVZN185200009

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-35040×2iRZN185,VZN185199511

41336BCOVER, DUST(FOR FRONT DRIVE SHAFT)

main41336-35020×2iRZN185,VZN185199511

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-35030iRZN185,VZN185199511

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43403-35030iRZN185,VZN185199511

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-35030iRZN185,VZN185199511

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-29028×2iRZN185,VZN185199511

43411CRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)

main90521-29002×2iRZN185,VZN185199511

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-35030iRZN185,VZN185199511

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01A50×2iRZN185,VZN185199511

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01A51×2iRZN185,VZN185199511

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01221×2iRZN185,VZN185199511

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01222×2iRZN185,VZN185199511

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39065iRZN185,VZN185199511

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-39065iRZN185,VZN185199511

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-80002iRZN185,VZN185199511-200208

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-80002iRZN185,VZN185199511-200208

17 parts on this diagram · 1 diagram in section
