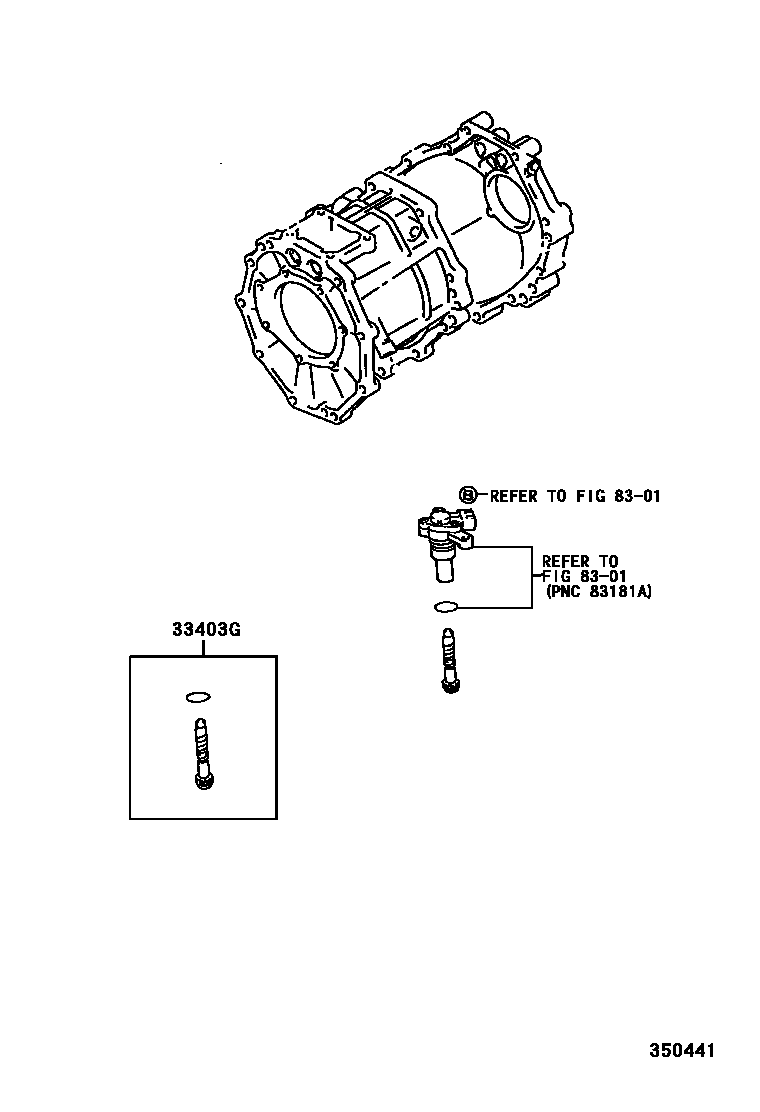

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A340E 0002 1A340F

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39415iRZN185..4FC199511-200008

N=33,MARK 33:11,W(265/70R16 TIRE)

main33403-39425iRZN185..4FC199511-200008

N=32,MARK 32:11

main33482-59015iRZN180..4FC199511-200008

N=17,MARK 17:6

8301

2 parts on this diagram · 2 diagrams in section
