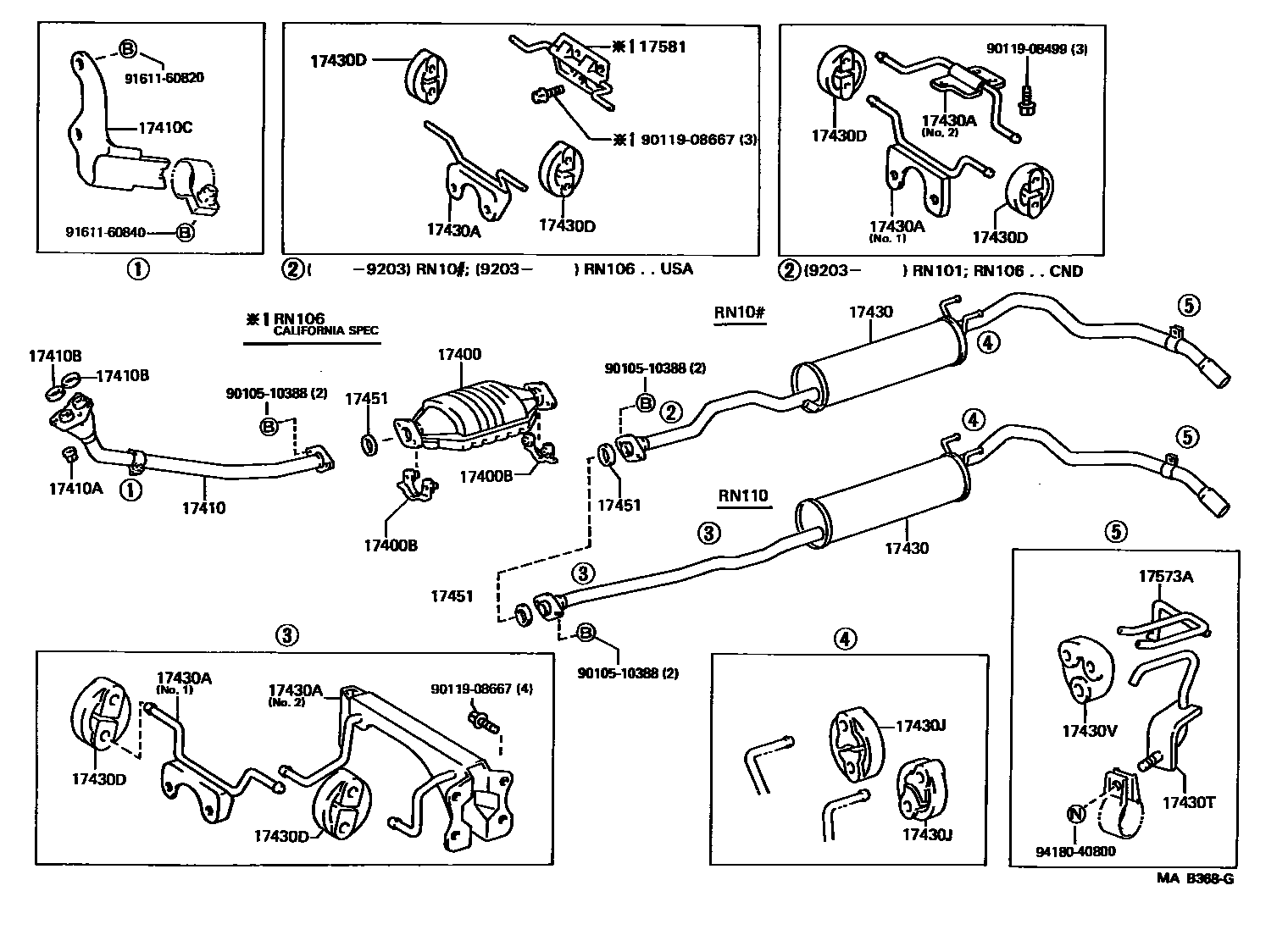

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17400CONVERTER ASSY, W/CATALYST

main18450-08010i22RE..RN10#,110,13#199108-199208

(L)

main18450-08040i22RE..RN10#,110,13#199208-199511

(L)

main18450-35130i22RE..RN10#,110,13#199108-199208

main18450-35150i22RE..RN10#,110,13#199208-199511

(J)

main18450-35160i22RE..RN101,110,130..USA199208-199511

CALIFORNIA SPEC

main18450-65020i22RE..RN10#,110..USA198808-199208

CALIFORNIA SPEC

main18450-65030i3VZE..VZN10#,110,13#199008-199511

main18450-65080i3VZE..VZN100,110,130..USA199308-199511

CALIFORNIA SPEC

17400BRETAINER, EXHAUST PIPE

main18495-35060i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#; 22RE,3VZE..RN106,VZN10#,110; 22RE..RN101,110199108-199502

FR; RR

main18495-35061i22RE,3VZE..RN13#,VZN13#199502-199511

main18495-38020i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#; 22RE,3VZE..RN10#,110,VZN10#,110198808-199108

FR; RR

17410PIPE ASSY, EXHAUST, FRONT

main17410-08020i22RE..RN10#,110,13#..5F199301-199511

(L)

main17410-35310i22RE..RN10#,110,13#..5F198808-199511

(J)

main17410-35320i22RE..RN10#,110,13#..4FC198808-199511

main17410-35470i22RE..RN10#,110..5F..USA198808-198903

CALIFORNIA SPEC

main17410-35471i22RE..RN10#,110..5F..USA198903-199208

CALIFORNIA SPEC

main17410-35480i22RE..RN106,110..4FC..USA198808-198903

CALIFORNIA SPEC

main17410-35481i22RE..RN10#,110..4FC..USA198903-199208

CALIFORNIA SPEC

main17410-35530i22RE..RN101,110,130..5F..USA199208-199511

CALIFORNIA SPEC

main17410-35540i22RE..RN101,110,130..4FC199208-199501

CALIFORNIA SPEC

main17410-65050i3VZE..VZN10#,110..R198808-198903

main17410-65051i3VZE..VZN10#,110,13#..R198903-199511

main17410-65060i3VZE..VZN105,110..4FC198808-198903

main17410-65061i3VZE..VZN105,110,13#..4FC198903-199511

main17410-65080i3VZE..VZN100,110,130..R..USA199308-199511

CALIFORNIA SPEC

main17410-65090i3VZE..VZN110,130..4FC..USA199308-199511

CALIFORNIA SPEC

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

17410BGASKET, EXHAUST PIPE

main90917-06038×2i22RE..RN10#,110,13#198808-199505

main90917-06041i3VZE..VZN10#,110,13#198808-199505

main90917-06064×2i22RE..RN13#199505-199511

main90917-06066i3VZE..VZN13#199505-199511

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-08020i22RE..RN10#,110,13#199301-199511

(L)

main17571-35040i22RE..RN10#,110,13#198808-199412

(J)

main17571-35041i22RE..RN101,110,13#199412-199511

main17571-65030i3VZE..VZN10#,110,13#198808-199511

17430PIPE ASSY, EXHAUST, TAIL

main17430-35800i22RE..RN106..USA198808-199001

CALIFORNIA SPEC

main17430-35801i22RE..RN106..USA199001-199208

CALIFORNIA SPEC

main17430-35810i22RE..RN101..USA198808-199001

CALIFORNIA SPEC

main17430-35811i22RE..RN101..USA199001-199208

CALIFORNIA SPEC

main17430-35830i22RE..RN110198808-199001

main17430-35831i22RE..RN110199001-199501

main17430-35840i22RE..RN110..USA198808-199001

CALIFORNIA SPEC

main17430-35841i22RE..RN110..USA199001-199208

CALIFORNIA SPEC

main17430-35870i22RE..RN106198808-199001

main17430-35871i22RE..RN106199001-199410

main17430-35890i22RE..RN101198808-199001

main17430-35891i22RE..RN101199001-199501

main17430-3D050i22RE..RN13#198904-199001

main17430-3D051i22RE..RN13#199001-199501

main17430-3D052i22RE..RN13#199501-199511

main17430-3D060i3VZE..VZN13#198904-199001

main17430-3D061i3VZE..VZN13#199001-199108

main17430-3D330i3VZE..VZN13#199108-199111

main17430-3D331i3VZE..VZN13#199111-199211

main17430-3D332i3VZE..VZN13#199211-199501

main17430-3D333i3VZE..VZN13#199501-199511

main17430-3D400i22RE..RN101..USA199208-199501

CALIFORNIA SPEC

main17430-3D410i22RE..RN110..USA199208-199501

CALIFORNIA SPEC

main17430-3D420i22RE..RN130199208-199501

CALIFORNIA SPEC

main17430-3D421i22RE..RN130199501-199511

CALIFORNIA SPEC

main17430-65080i3VZE..VZN105198808-199001

main17430-65081i3VZE..VZN105199001-199108

main17430-65090i3VZE..VZN100198808-199001

main17430-65091i3VZE..VZN100199001-199108

main17430-65100i3VZE..VZN110198808-199001

main17430-65101i3VZE..VZN110199001-199108

main17430-65110i3VZE..VZN100199108-199111

main17430-65111i3VZE..VZN100199111-199211

main17430-65112i3VZE..VZN100199211-199501

main17430-65130i3VZE..VZN105199108-199111

main17430-65131i3VZE..VZN105199111-199208

main17430-65140i3VZE..VZN110199108-199111

main17430-65141i3VZE..VZN110199111-199211

main17430-65142i3VZE..VZN110199211-199501

main17430-65220i3VZE..VZN130199308-199501

CALIFORNIA SPEC

main17430-65221i3VZE..VZN130199501-199511

CALIFORNIA SPEC

main17430-65230i3VZE..VZN100..USA199308-199501

CALIFORNIA SPEC

main17430-65240i3VZE..VZN110..USA199308-199501

CALIFORNIA SPEC

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17503-35130i22RE..RN101,110; 22RE..RN106199203-199501

NO.1

main17503-35170i22RE..RN101,110..USA199208-199501

CALIFORNIA SPEC,NO.1

main17503-35180i22RE..RN130199208-199502

CALIFORNIA SPEC

main17503-35181i22RE..RN130199502-199511

CALIFORNIA SPEC

main17503-65010i22RE..RN10#..USA; 22RE..RN110..USA; 3VZE..VZN10#; 3VZE..VZN110198808-199203

CALIFORNIA SPEC; CALIFORNIA SPEC,NO.1; NO.1

main17504-35090i22RE,3VZE..RN110,VZN110198808-199501

NO.2

main17564-35140i3VZE..VZN13#198904-199502

main17564-35141i3VZE..VZN13#199502-199511

main17564-35150i22RE..RN13#198904-199502

main17564-35151i22RE..RN13#199502-199511

main17564-35190i22RE,3VZE..RN101,VZN100199203-199501

NO.2

main17564-65010i3VZE..VZN130199308-199502

CALIFORNIA SPEC

main17564-65011i3VZE..VZN130199502-199511

CALIFORNIA SPEC

main17564-65020i3VZE..VZN100,110..USA199308-199501

CALIFORNIA SPEC,NO.1

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17563-08010×2i22RE,3VZE..RN10#,110,13#,VZN100,110,13#199208-199511

(L)

main17563-35020×2i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

(J)

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main17565-08010×2i22RE,3VZE..RN10#,110,VZN100,110199208-199501

(L)

main17565-35010×2i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#199108-199511

(J)

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17585-35040i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17566-35030i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

17451GASKET, EXHAUST PIPE

main90917-06041i22RE..RN10#,110,13#; 3VZE..VZN10#,110,13#199108-199308

FR

main90917-06045i22RE,3VZE..RN106,13#,VZN10#,110,13#; 22RE..RN101,110199108-199308

RR

main90917-06047i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198809-199104

RR

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17575-35040i22RE,3VZE..RN10#,110,VZN10#,110198808-199501

17581BRACKET, EXHAUST PIPE NO.1 INSULATOR SUPPORT

main17581-35020i3VZE..VZN105;22RE..RN106..USA198808-199208

9010510388

main90105-10388

9011908499

main90119-08499

9011908667

main90119-08667

9161160820

main91611-60820

9161160840

main91611-60840

9418040800

main94180-40800

21 parts on this diagram · 4 diagrams in section
