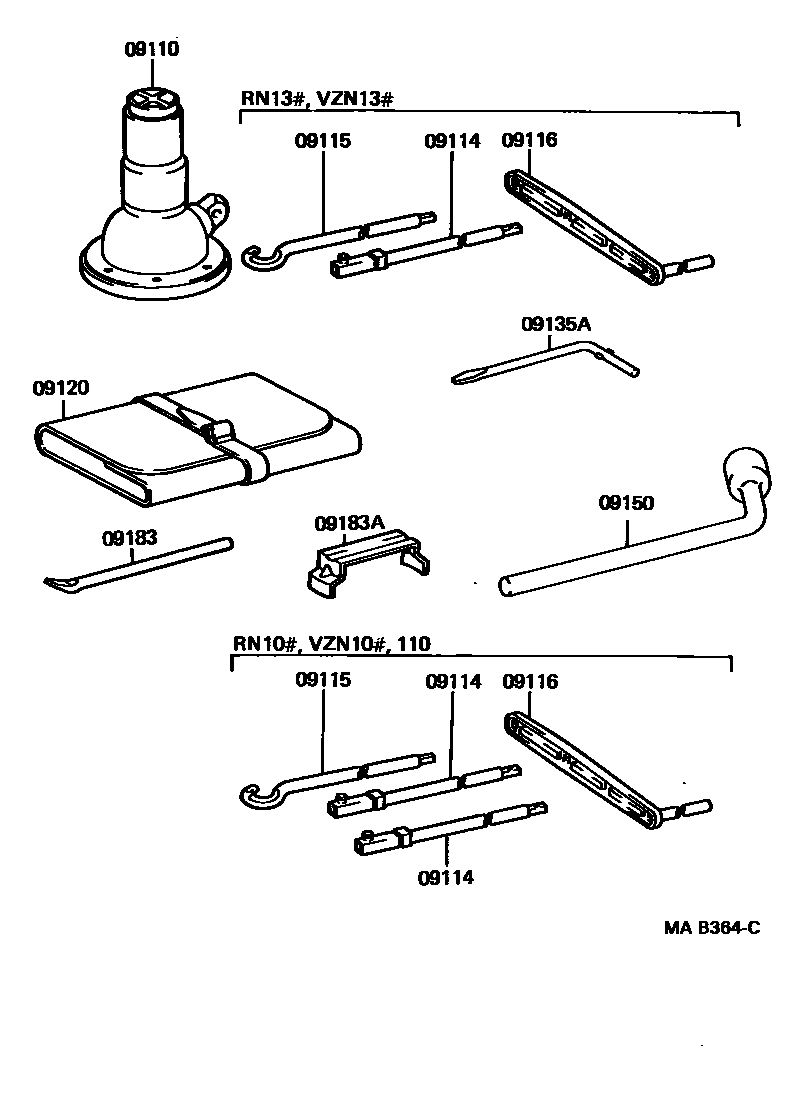

STANDARD TOOL

09110JACK ASSY

main09111-89101iRN10#,110,13#,VZN10#,110,13#198808-199312

main09111-89103iRN10#,110,13#,VZN100,110,13#199312-199511

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010×2iRN10#,110,VZN100,110199211-199501

main09114-60050×2iRN10#,110,VZN10#,110198808-199211

09115ROD SUB-ASSY, JACK HANDLE

main09115-35070iRN13#,VZN13#199108-199511

main09115-35080iRN13#,VZN13#198904-199108

main09115-60030iRN10#,110,VZN10#,110198808-199501

09116LEVER, JACK HANDLE

main09116-35041iRN10#,110,13#,VZN10#,110,13#198808-199511

09120BAG, TOOL

main09120-35070iRN10#,110,13#,VZN10#,110,13#198808-199411

main09120-35100iRN101,110,13#,VZN100,110,13#199411-199511

09135ABIT, SCREW DRIVER

main09135-00012iRN13#,VZN13#198904-199308

09150WRENCH, HUB NUT BOX

main09150-60020iRN10#,110,13#,VZN10#,110,13#198808-199511

09183WRENCH, WHEEL CAP

main09183-00030iRN10#,110,13#,VZN10#,110,13#198808-199511

09183AREPLACER, WHEEL CAP

main09183-35010iRN10#,110,13#,VZN10#,110,13#198808-199108

main09183-60010iRN10#,110,13#,VZN10#,110,13#199108-199408

9 parts on this diagram · 1 diagram in section
