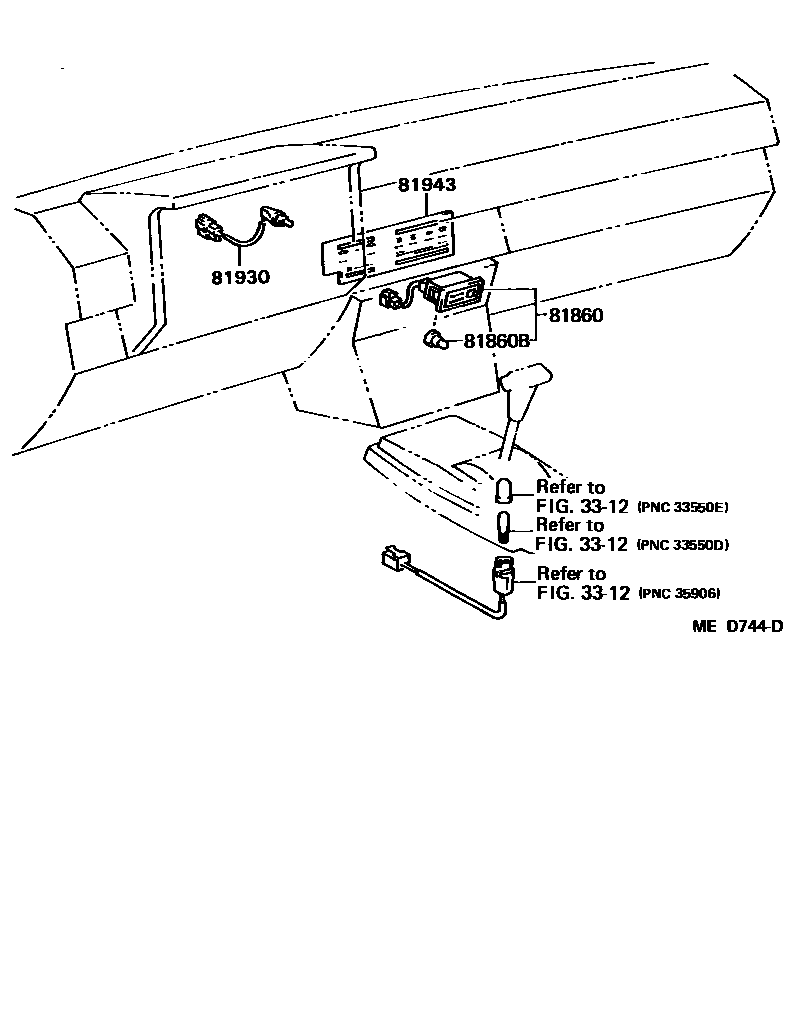

INDICATOR

3312

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-35020iRN55..4FC198308-198408

main81860-35030iRN5#,7#..ATM..(CBR,EFI)198408-198808

main81860-35040iRN55..4FC..TBO198501-198903

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110iRN5#,7#,VZN6#..ATM..(CBR,EFI)198308-198903

12V 1.12W,12V 1.12W

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-89115iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

81943LENS, HEATER CONTROL INDICATOR

main55519-89116iLN5#,6#,RN5#,6#,7#198308-198608

W/HEATER(W/O CLOCK)

sub55519-89143

main55519-89118iRN75..DLX..USA198308-198608

W/*BV ONLY

sub55519-89135

main55519-89120iLN5#,6#,RN5#,6#,7#198308-198608

W/HEATER & CLOCK

sub55519-89116

main55519-89122iRN75..DLX..USA198308-198608

W/*BV & CLOCK

sub55519-89118

main55519-89124iRN55..W..HVY..USA198501-198608

W/COOLER & CLOCK

sub55519-89116

main55519-89125iRN55,75..HVY..USA198508-198608

W/COOLER (W/O CLOCK)

sub55519-89116

main55519-89125iRN55..W..HVY..USA198501-198508

W/COOLER(W/O CLOCK)

sub55519-89116

main55519-89130iLN56,66,RN5#,6#,7#198608-198708

W/HEATER & CLOCK

sub55519-89131

main55519-89131iLN56,66,RN5#,6#,7#198608-198708

W/HEATER(W/O CLOCK)

sub55519-89143

main55519-89134iRN75..DLX..USA198608-198708

W/*BV,COOLER & CLOCK;W/*BV & CLOCK

sub55519-89135

main55519-89135iRN75..DLX..USA198608-198708

W/*BV ONLY

main55519-89138iRN55,75..HVY..USA198608-198708

W/COOLER & CLOCK

sub55519-89131

main55519-89139iRN55,75..HVY..USA198608-198708

W/COOLER (W/O CLOCK)

sub55519-89131

main55519-89143iRN5#,6#,7#,VZN6#198708-198903

main81942-89102iRN5#,6#,7#,VZN6#198708-198903

DEALER OPT,W/COOLER

5 parts on this diagram · 1 diagram in section
