SEAT & SEAT TRACK

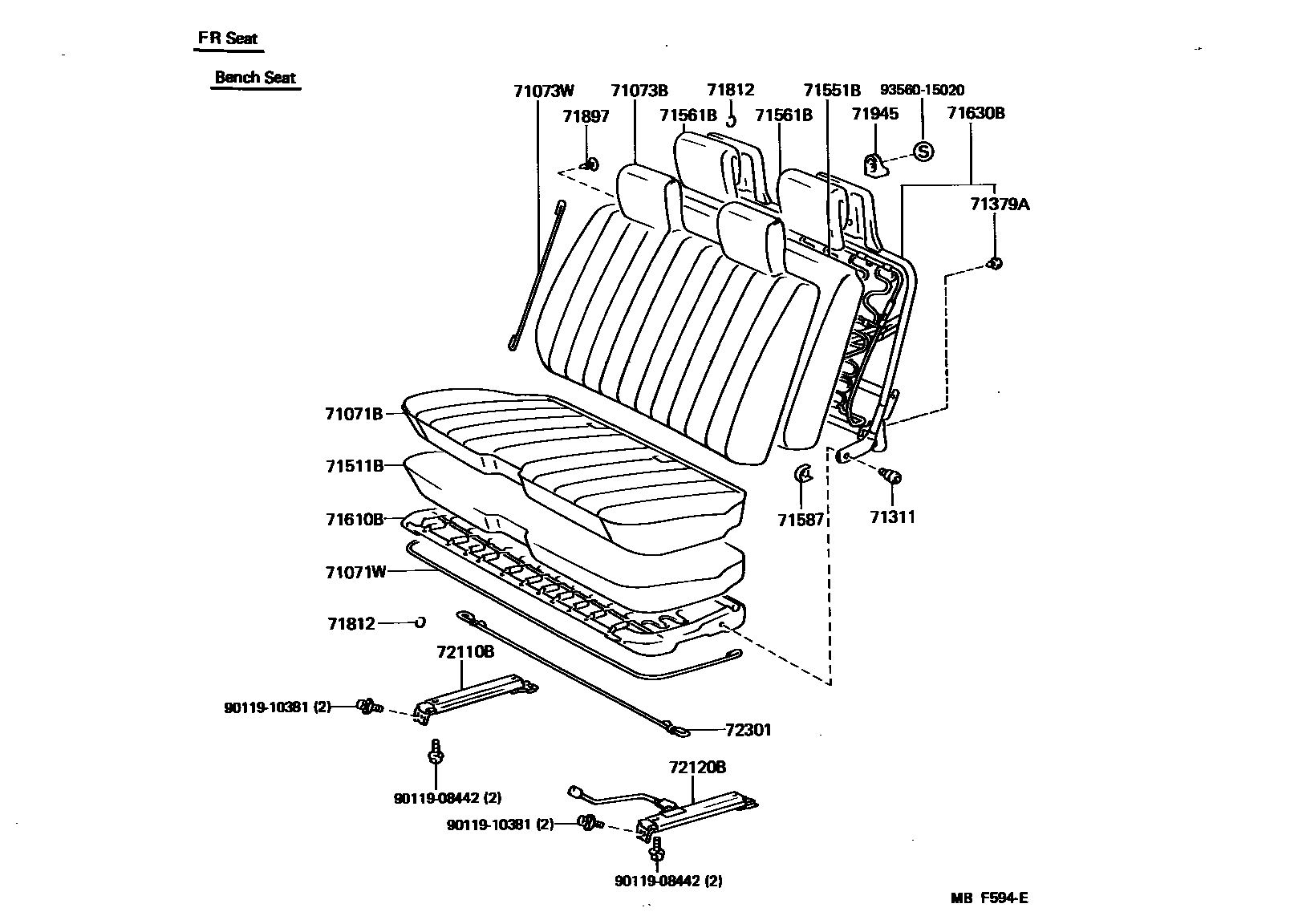

Parts diagram
71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71071-89216-03i198308-198408
F-VL,GRAY,GRAY,TRIM1#
main71071-89216-04i198308-198408
F-VL,BLUE,BLUE,TRIM8#
main71071-89216-06i198308-198408
F-VL,BROWN,BROWN,TRIM4#
main71071-89216-13i198408-198608
F-VL,GRAY,GRAY,TRIM1#
main71071-89216-14i198408-198608
F-VL,BLUE,BLUE,TRIM8#
main71071-89216-16i198408-198608
F-VL,BROWN,BROWN,TRIM4#
main71071-89222-03i198308-198408
*PRV,GRAY,GRAY,TRIM1#
main71071-89222-04i198308-198408
*PRV,BLUE,BLUE,TRIM8#
main71071-89222-06i198308-198408
*PRV,BROWN,BROWN,TRIM4#
main71071-89225-03i198308-198408
*PRV,GRAY,GRAY,TRIM1#
main71071-89225-04i198308-198408
*PRV,BLUE,BLUE,TRIM8#
main71071-89225-06i198308-198408
*PRV,BROWN,BROWN,TRIM4#
main71071-89227-03i198308-198408
F-VL,GRAY,GRAY,TRIM1#
main71071-89227-04i198308-198408
F-VL,BLUE,BLUE,TRIM8#
main71071-89227-06i198308-198408
F-VL,BROWN,BROWN,TRIM4#
main71071-89227-13i198408-198608
F-VL,GRAY,GRAY,TRIM1#
main71071-89227-14i198408-198608
F-VL,BLUE,BLUE,TRIM8#
main71071-89227-16i198408-198608
F-VL,BROWN,BROWN,TRIM4#
main71071-89236-03i198308-198408
FB,GRAY,GRAY,TRIM1#
main71071-89236-04i198308-198408
FB,BLUE,BLUE,TRIM8#
main71071-89236-06i198308-198408
FB,BROWN,BROWN,TRIM4#
main71071-89236-13i198408-198501
FB,GRAY,GRAY,TRIM1#
main71071-89236-14i198408-198501
FB,BLUE,BLUE,TRIM8#
main71071-89236-16i198501-198508
FB,BROWN,BROWN,TRIM4#
main71071-89258-03i198508-198608
*PRV,GRAY,GRAY,TRIM1#
main71071-89258-04i198508-198608
*PRV,BLUE,BLUE,TRIM8#
main71071-89258-06i198408-198508
*PRV,BROWN,BROWN,TRIM4#
main71071-89260-03i198408-198501
*PRV,GRAY,GRAY,TRIM1#
main71071-89260-04i198408-198501
*PRV,BLUE,BLUE,TRIM8#
main71071-89260-06i198408-198501
*PRV,BROWN,BROWN,TRIM4#
main71071-89269-03i198408-198608
F-VL,GRAY,GRAY,TRIM1#
main71071-89269-04i198408-198608
F-VL,BLUE,BLUE,TRIM8#
main71071-89269-05i198608-198808
F-VL,BEIGE,BEIGE,TRIM4#
main71071-89269-06i198408-198608
F-VL,BROWN,BROWN,TRIM4#
main71071-89269-13i198608-198808
F-VL,GRAY,GRAY,TRIM1#
main71071-89269-14i198608-198808
F-VL,BLUE,BLUE,TRIM8#
main71071-89275-03i198508-198608
F-VL,GRAY,GRAY,TRIM1#
main71071-89275-04i198508-198608
F-VL,BLUE,BLUE,TRIM8#
main71071-89275-06i198508-198608
F-VL,BROWN,BROWN,TRIM4#
main71071-89276-03i198508-198608
*PRV,GRAY,GRAY,TRIM1#
main71071-89276-04i198508-198608
*PRV,BLUE,BLUE,TRIM8#
main71071-89276-06i198508-198608
*PRV,BROWN,BROWN,TRIM4#
main71071-89277-03i198508-198608
F-VL,GRAY,GRAY,TRIM1#
main71071-89277-04i198508-198608
F-VL,BLUE,BLUE,TRIM8#
main71071-89277-05i198608-198903
F-VL,BEIGE,BEIGE,TRIM4#
main71071-89277-06i198508-198608
F-VL,BROWN,BROWN,TRIM4#
main71071-89277-13i198608-198903
F-VL,GRAY,GRAY,TRIM1#
main71071-89277-14i198608-198903
F-VL,BLUE,BLUE,TRIM8#
main71071-89281-03i198508-198608
FB,GRAY,GRAY,TRIM1#
main71071-89281-04i198508-198608
FB,BLUE,BLUE,TRIM8#
main71071-89281-06i198508-198608
FB,BROWN,BROWN,TRIM4#
main71071-89283-03i198608-198808
F-VL,GRAY,GRAY,TRIM1#
main71071-89283-04i198608-198808
F-VL,BLUE,BLUE,TRIM8#
main71071-89283-05i198608-198808
F-VL,BEIGE,BEIGE,TRIM4#
main71071-89284-03i198610-198708
*SIR,GRAY,GRAY,TRIM1#
main71071-89284-04i198608-198708
*SIR,BLUE,BLUE,TRIM8#
main71071-89284-05i198608-198708
*SIR,BEIGE,BEIGE,TRIM4#
main71071-89285-03i198708-198808
F-VL,GRAY,GRAY,TRIM1#
main71071-89285-04i198708-198808
F-VL,BLUE,BLUE,TRIM8#
main71071-89285-05i198708-198808
F-VL,BEIGE,BEIGE,TRIM4#
main71071-89286-03i198608-198808
F-VL,GRAY,GRAY,TRIM1#
main71071-89286-04i198608-198808
F-VL,BLUE,BLUE,TRIM8#
main71071-89286-05i198608-198808
F-VL,BEIGE,BEIGE,TRIM4#
main71071-89287-03i198608-198708
*SIR,GRAY,GRAY,TRIM1#
main71071-89287-04i198608-198708
*SIR,BLUE,BLUE,TRIM8#
main71071-89287-05i198608-198708
*SIR,BEIGE,BEIGE,TRIM4#
main71071-89312-03i198708-198808
*SIR,GRAY,GRAY,TRIM1#
main71071-89312-04i198708-198808
*SIR,BLUE,BLUE,TRIM8#
main71071-89312-05i198708-198808
*SIR,BEIGE,BEIGE,TRIM4#
main71071-89313-03i198708-198808
*SIR,GRAY,GRAY,TRIM1#
main71071-89313-04i198708-198808
*SIR,BLUE,BLUE,TRIM8#
main71071-89313-05i198708-198808
*SIR,BEIGE,BEIGE,TRIM4#
71071WWIRE, FRONT SEAT CUSHION COVER
main90580-20007×2i198408-198508
W/SEPARATE SEAT,L=1200
main90580-20133i198308-198408
L=1240
main90580-20153i198408-198508
W/BENCH SEAT,L=880
main90580-20157×2i198406-198508
L=300
main90580-29021×2i198308-198406
L=310
71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)
main71073-89259-03i198308-198408
F-VL,GRAY,GRAY,TRIM1#
main71073-89259-04i198308-198408
F-VL,BLUE,BLUE,TRIM8#
main71073-89259-06i198308-198408
F-VL,BROWN,BROWN,TRIM4#
main71073-89259-13i198408-198608
F-VL,GRAY,GRAY,TRIM1#
main71073-89259-14i198408-198608
F-VL,BLUE,BLUE,TRIM8#
main71073-89259-16i198408-198608
F-VL,BROWN,BROWN,TRIM4#
main71073-89260-03i198308-198408
*PRV,GRAY,GRAY,TRIM1#
main71073-89260-04i198308-198408
*PRV,BLUE,BLUE,TRIM8#
main71073-89260-06i198308-198408
*PRV,BROWN,BROWN,TRIM4#
main71073-89261-03i198308-198408
FB,GRAY,GRAY,TRIM1#
main71073-89261-04i198308-198408
FB,BLUE,BLUE,TRIM8#
main71073-89261-06i198308-198408
FB,BROWN,BROWN,TRIM4#
main71073-89261-13i198501-198508
FB,GRAY,GRAY,TRIM1#
main71073-89261-14i198501-198508
FB,BLUE,BLUE,TRIM8#
main71073-89261-16i198408-198501
FB,BROWN,BROWN,TRIM4#
main71073-89262-03i198308-198408
F-VL,GRAY,GRAY,TRIM1#
main71073-89262-04i198308-198408
F-VL,BLUE,BLUE,TRIM8#
main71073-89262-06i198308-198408
F-VL,BROWN,BROWN,TRIM4#
main71073-89262-13i198408-198608
F-VL,GRAY,GRAY,TRIM1#
main71073-89262-14i198408-198608
F-VL,BLUE,BLUE,TRIM8#
main71073-89262-16i198408-198608
F-VL,BROWN,BROWN,TRIM4#
main71073-89263-03i198308-198408
*PRV,GRAY,GRAY,TRIM1#
main71073-89263-04i198308-198408
*PRV,BLUE,BLUE,TRIM8#
main71073-89263-06i198308-198408
*PRV,BROWN,BROWN,TRIM4#
main71073-89284-03i198408-198508
*PRV,GRAY,GRAY,TRIM1#
main71073-89284-04i198408-198508
*PRV,BLUE,BLUE,TRIM8#
main71073-89284-06i198508-198608
*PRV,BROWN,BROWN,TRIM4#
main71073-89286-03i198501-198608
*PRV,GRAY,GRAY,TRIM1#
main71073-89286-04i198408-198501
*PRV,BLUE,BLUE,TRIM8#
main71073-89286-06i198408-198501
*PRV,BROWN,BROWN,TRIM4#
main71073-89297-03i198408-198608
F-VL,GRAY,GRAY,TRIM1#
main71073-89297-04i198408-198608
F-VL,BLUE,BLUE,TRIM8#
main71073-89297-05i198608-198808
F-VL,BEIGE,BEIGE,TRIM4#
main71073-89297-06i198408-198608
F-VL,BROWN,BROWN,TRIM4#
main71073-89297-13i198608-198808
F-VL,GRAY,GRAY,TRIM1#
main71073-89297-14i198608-198808
F-VL,BLUE,BLUE,TRIM8#
main71073-89306-03i198508-198608
FB,GRAY,GRAY,TRIM1#
main71073-89306-04i198508-198608
FB,BLUE,BLUE,TRIM8#
main71073-89306-06i198508-198608
FB,BROWN,BROWN,TRIM4#
main71073-89312-03i198708-198808
F-VL,GRAY,GRAY,TRIM1#
main71073-89312-04i198608-198808
F-VL,BLUE,BLUE,TRIM8#
main71073-89312-05i198608-198808
F-VL,BEIGE,BEIGE,TRIM4#
main71073-89313-03i198608-198708
*SIR,GRAY,GRAY,TRIM1#
main71073-89313-04i198608-198708
*SIR,BLUE,BLUE,TRIM8#
main71073-89313-05i198610-198708
*SIR,BEIGE,BEIGE,TRIM4#
main71073-89314-03i198608-198808
F-VL,GRAY,GRAY,TRIM1#
main71073-89314-04i198608-198808
F-VL,BLUE,BLUE,TRIM8#
main71073-89314-05i198608-198808
F-VL,BEIGE,BEIGE,TRIM4#
main71073-89338-03i198708-198808
*SIR,GRAY,GRAY,TRIM1#
main71073-89338-04i198708-198808
*SIR,BLUE,BLUE,TRIM8#
main71073-89338-05i198708-198808
*SIR,BEIGE,BEIGE,TRIM4#
71073WWIRE, FRONT SEATBACK COVER
main90580-20030i198408-198508
W/BENCH SEAT,L=1120
main90580-20099×4i198408-198508
W/SEPARATE SEAT,L=400
main90580-20128×2i198408-198508
W/BENCH SEAT,L=450
main90580-20160i198408-198508
W/BENCH SEAT,L=1060
71311PIN, FRONT SEAT HINGE
main71311-89105×2i198308-198808
W/BENCH SEAT
71379ASTOPPER, FRONT SEAT VERTICAL HANDLE
main71379-89101×2i198308-198808
W/BENCH SEAT
71511BPAD, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71511-89124i198308-198808
main71511-89132i198508-198808
71551BPAD, FRONT SEATBACK(FOR BENCH TYPE)
main71505-89127i198308-198903
71561BPAD, FRONT SEATBACK, UPPER
main71561-89111×2i198308-198808
W/BENCH SEAT
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-89103×2i198308-198808
W/BENCH SEAT
71610BSPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71610-89124i198308-198608
main71610-89133i198508-198808
main71610-89137i198608-198808
71630BSPRING ASSY, FRONT SEATBACK(FOR BENCH TYPE)
main71630-89124i198308-198608
main71630-89131i198608-198808
71812CLIP (FOR FRONT SEAT CUSHION COVER)
main90468-18071i198308-198903
71897HOOK, SEAT COVER SIDE
main71897-89101-03×2i198508-198608
GRAY,GRAY,TRIM1#
main71897-89101-04×2i198508-198608
BLUE,BLUE,TRIM8#
main71897-89101-05×2i198608-198808
BEIGE,BEIGE,TRIM4#
main71897-89101-06×2i198508-198608
BROWN,BROWN,TRIM4#
main71897-89101-13×2i198608-198808
GRAY,GRAY,TRIM1#
main71897-89101-14×2i198608-198808
BLUE,BLUE,TRIM8#
main71897-89102-03×6i198308-198408
W/BENCH SEAT,LIGHT GRAY,GRAY,TRIM1#
main71897-89102-04×6i198308-198408
W/BENCH SEAT,LIGHT BLUE,BLUE,TRIM8#
main71897-89102-05×6i198608-198808
BEIGE,BEIGE,TRIM4#; W/BENCH SEAT,BEIGE,BEIGE,TRIM4#
main71897-89102-06×6i198308-198408
W/BENCH SEAT,LIGHT BROWN,BROWN,TRIM4#
main71897-89102-13×6i198408-198608
W/BENCH SEAT,LIGHT GRAY,GRAY,TRIM1#
main71897-89102-14×6i198408-198608
W/BENCH SEAT,LIGHT BLUE,BLUE,TRIM8#
main71897-89102-16×6i198408-198608
W/BENCH SEAT,LIGHT BROWN,BROWN,TRIM4#
main71897-89102-23×6i198608-198808
GRAY,GRAY,TRIM1#; W/BENCH SEAT,GRAY,GRAY,TRIM1#
main71897-89102-24×6i198608-198808
BLUE,BLUE,TRIM8#; W/BENCH SEAT,BLUE,BLUE,TRIM8#
71945BUMPER, SEATBACK
main71739-89108×2i198308-198808
72110BTRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)
main72110-89142i198708-198808
W/BENCH SEAT
main72110-89143i198608-198708
W/SEMI SEPARATE SEAT
72120BTRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)
main72120-89140i198308-198708
main72120-89141i198501-198708
W/SEMI SEPARATE SEAT
72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING
main72301-89105×2i198608-198808
W/SEPARATE SEAT
main72301-89108i198502-198506
VALUE PACKAGE
9011908442
main90119-08442
9011910381
main90119-10381
9356015020
main93560-15020

21 parts on this diagram · 6 diagrams in section
