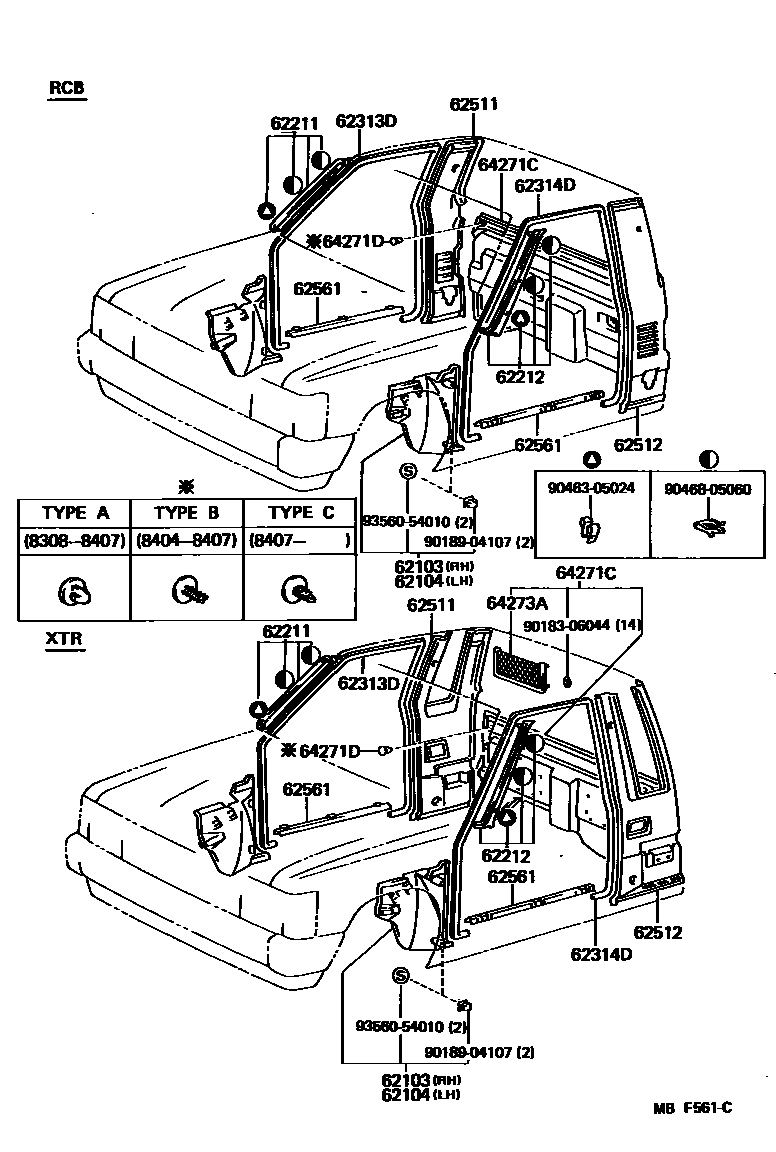

INSIDE TRIM BOARD
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
BLUE,BLUE,TRIM8#
sub62102-89104
62211GARNISH, FRONT PILLAR, RH
LIGHT GRAY,GRAY,TRIM1#,8#
sub62210-89101
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
62212GARNISH, FRONT PILLAR, LH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
RED,RED,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
sub62313-89110
BLUE,BLUE,TRIM8#
sub62313-89110
BROWN,BROWN,TRIM4#
sub62313-89110
62314DTRIM, FRONT DOOR OPENING, LH
BLUE,BLUE,TRIM8#
sub62313-89110
BROWN,BROWN,TRIM4#
sub62313-89110
RED,RED,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
62511BOARD, QUARTER INSIDE TRIM, RH
W/SPEAKER,LIGHT BROWN,BROWN,TRIM4#
sub62511-89122
RED,RED,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
RED,RED,TRIM3#
LIGHT GRAY,LIGHT GRAY,TRIM1#
LIGHT BLUE,LIGHT BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,LIGHT BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
LIGHT GRAY,LIGHT GRAY,TRIM1#
LIGHT BLUE,LIGHT BLUE,TRIM8#
LIGHT BROWN,LIGHT BROWN,TRIM4#
W/SPEAKER,LIGHT GRAY,LIGHT GRAY,TRIM1#
sub62511-89121
W/SPEAKER,LIGHT BLUE,LIGHT BLUE,TRIM8#
sub62511-89121
W/SPEAKER,LIGHT BROWN,LIGHT BROWN,TRIM4#
sub62511-89121
RED,RED,TRIM3#
LIGHT GRAY,LIGHT GRAY,TRIM1#
LIGHT BLUE,LIGHT BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,LIGHT BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
W/SPEAKER,LIGHT GRAY,LIGHT GRAY,TRIM1#
sub62511-89130
W/SPEAKER,LIGHT BLUE,LIGHT BLUE,TRIM8#
sub62511-89130
W/SPEAKER,BEIGE,BEIGE,TRIM4#
sub62511-89130
W/SPEAKER,LIGHT BROWN,LIGHT BROWN,TRIM4#
sub62511-89130
W/SPEAKER,GRAY,GRAY,TRIM1#
sub62511-89130
W/SPEAKER,BLUE,BLUE,TRIM8#
sub62511-89130
62512BOARD, QUARTER INSIDE TRIM, LH
W/SPEAKER,LIGHT BROWN,BROWN,TRIM4#
sub62512-89122
RED,RED,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
RED,RED,TRIM3#
LIGHT GRAY,LIGHT GRAY,TRIM1#
LIGHT BLUE,LIGHT BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,LIGHT BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
LIGHT GRAY,LIGHT GRAY,TRIM1#
LIGHT BLUE,LIGHT BLUE,TRIM8#
LIGHT BROWN,LIGHT BROWN,TRIM4#
W/SPEAKER,LIGHT GRAY,LIGHT GRAY,TRIM1#
sub62512-89121
W/SPEAKER,LIGHT BLUE,LIGHT BLUE,TRIM8#
sub62512-89121
W/SPEAKER,LIGHT BROWN,LIGHT BROWN,TRIM4#
sub62512-89121
RED,RED,TRIM3#
LIGHT GRAY,LIGHT GRAY,TRIM1#
LIGHT BLUE,LIGHT BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,LIGHT BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
W/SPEAKER,LIGHT GRAY,LIGHT GRAY,TRIM1#
sub62512-89130
W/SPEAKER,LIGHT BLUE,LIGHT BLUE,TRIM8#
sub62512-89130
W/SPEAKER,BEIGE,BEIGE,TRIM4#
sub62512-89130
W/SPEAKER,LIGHT BROWN,LIGHT BROWN,TRIM4#
sub62512-89130
W/SPEAKER,GRAY,GRAY,TRIM1#
sub62512-89130
W/SPEAKER,BLUE,BLUE,TRIM8#
sub62512-89130
62561PROTECTOR, ROCKER PANEL, INNER FRONT
RH
64271CTRIM, BACK PANEL
W/POCKET,LIGHT GRAY,GRAY,TRIM1#
W/POCKET,LIGHT BLUE,BLUE,TRIM8#
W/POCKET,LIGHT BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
RED,RED,TRIM3#
W/POCKET,LIGHT GRAY,GRAY,TRIM1#
W/POCKET,LIGHT BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
W/POCKET,LIGHT BROWN,BROWN,TRIM4#
W/POCKET,LIGHT GRAY,GRAY,TRIM1#
W/POCKET,LIGHT BLUE,BLUE,TRIM8#
W/POCKET,LIGHT BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
LIGHT GRAY,GRAY,TRIM1#
LIGHT BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
W/SEPARATE SEAT,LIGHT GRAY,GRAY,TRIM1#
W/SM-SP,LIGHT GRAY,GRAY,TRIM1#
LIGHT GRAY,GRAY,TRIM1#
VALUE PACKAGE,GRAY,GRAY,TRIM1#
W/SEPARATE SEAT,LIGHT BLUE,BLUE,TRIM8#
LIGHT BLUE,BLUE,TRIM8#
VALUE PACKAGE,BLUE,BLUE,TRIM8#
W/SM-SP,LIGHT BLUE,BLUE,TRIM8#
W/SEPARATE SEAT,LIGHT BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
W/SM-SP,LIGHT BROWN,BROWN,TRIM4#
VALUE PACKAGE,BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
sub64271-89111
LIGHT GRAY,GRAY,TRIM1#
LIGHT BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
64271DCLIP(FOR BACK PANEL TRIM)
W/POCKET,LIGHT GRAY,GRAY,TRIM1#
sub90467-08015
W/SM-SP,LIGHT GRAY,GRAY,TRIM1#
sub90467-08015
W/POCKET,LIGHT GRAY,GRAY,TRIM1#
sub90467-08015
W/SEPARATE SEAT,LIGHT BLUE,BLUE,TRIM8#
sub90467-08015
W/SM-SP,LIGHT BLUE,BLUE,TRIM8#
sub90467-08015
W/SM-SP,LIGHT BROWN,BROWN,TRIM4#
sub90467-08015
GRAY,GRAY,TRIM1#
sub90467-08015
W/POCKET,TYPE B,LIGHT GRAY,LIGHT GRAY,TRIM1#
sub90467-08056
TYPE B,LIGHT BLUE,LIGHT BLUE,TRIM8#
sub90467-08056
W/POCKET,TYPE B,LIGHT BLUE,LIGHT BLUE,TRIM8#
sub90467-08056
W/POCKET,TYPE B,LIGHT BROWN,LIGHT BROWN,TRIM4#
sub90467-08056
W/POCKET,TYPE A,LIGHT BLUE,BLUE,TRIM8#
sub90467-10044
W/POCKET,TYPE A,LIGHT BROWN,BROWN,TRIM4#
sub90467-10044
W/POCKET,TYPE A,LIGHT GRAY,GRAY,TRIM1#
sub90467-10044
64273APOCKET, BACK PANEL TRIM
RED,RED,TRIM3#
LIGHT GRAY,GRAY,TRIM1#
LIGHT BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
9018306044
main90183-06044
9018904107
main90189-04107
9046305024
main90463-05024
9046805060
main90468-05060
9356054010
main93560-54010
17 parts on this diagram · 2 diagrams in section
