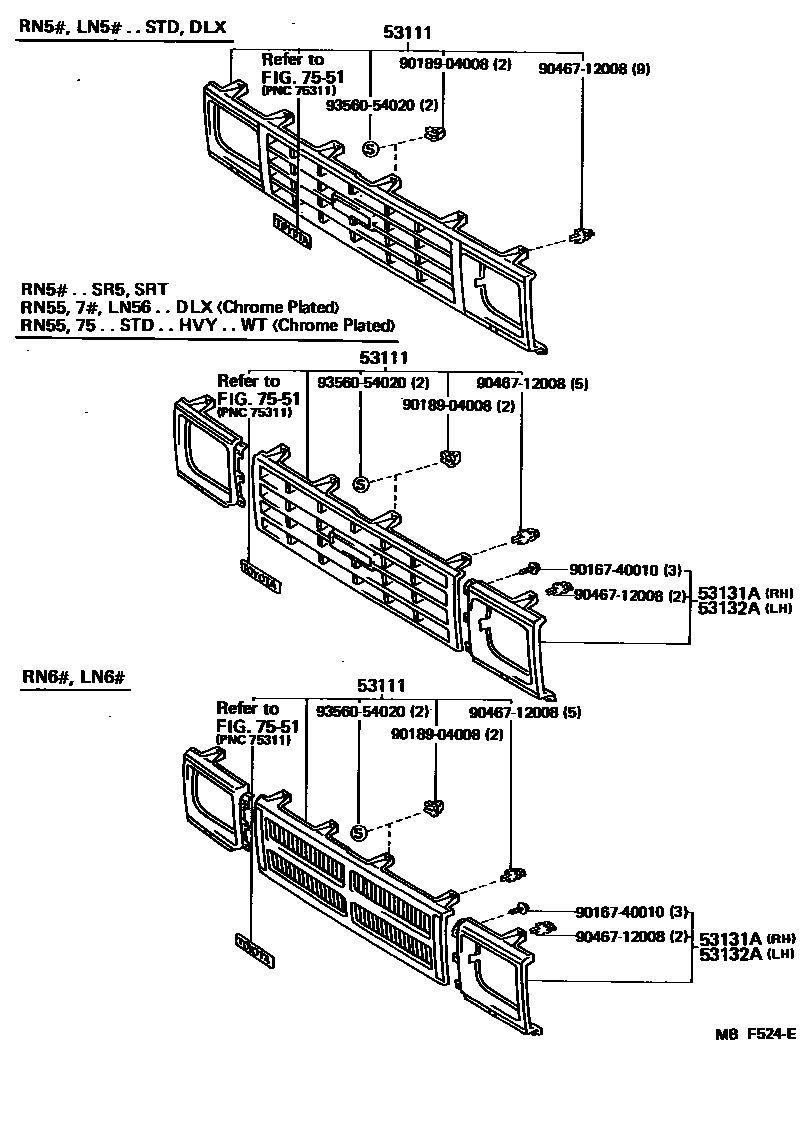

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53100-89109iRN70..USA..CBU198601-198608

ECONOMY PACKAGE

main53100-89110iLN56,RN55,7#..DLX198308-198608

main53100-89118iLN56,RN5#,7#..STD198608-198808

main53100-89119iRN55,7#..DLX198608-198808

main53111-39045iRN5#..HLF..(EFI,TBO)198308-198608

main53111-39055iRN55..10T..USA198502-198511

VALUE PACKAGE

main53111-39065iRN60,61..SDT,STD198308-198608

main53111-39075iLN6#,RN6#..DLX198308-198608

main53111-39085iRN6#..SR5,SRT198308-198608

main53111-39095iLN6#,RN6#..DLX,SR5,SRT198308-198608

CHROME PLATED

main53111-89125iRN55..XTR198608-198808

main53111-89126iRN55,7#..DLX,SR5,SRT; RN55,75..STD..WT198608-198808

CHROME PLATED

main53111-89127iLN66,RN6#,VZN6#198608-198903

main53111-89128iLN66,RN6#,VZN6#198608-198903

CHROME PLATED

53131ADOOR, HEADLAMP, RH

main53131-39165iRN55..10T..USA198502-198511

VALUE PACKAGE

main53131-39175iRN60,61..SDT,STD198308-198608

main53131-39185iLN6#,RN6#..DLX198308-198608

main53131-39195iRN5#,6#..SR5,SRT198308-198608

main53131-89111iRN55,7#..DLX,SR5,SRT; RN55,75..STD..WT198608-198808

CHROME PLATED

main53131-89112iLN66,RN6#,VZN6#..DLX,SDT,STD198608-198903

main53131-89113iRN6#,VZN6#..SR5,SRT198608-198903

main53131-89114iLN66,RN6#,VZN6#198608-198903

CHROME PLATED

main53131-89115iRN55..XTR198608-198808

53132ADOOR, HEADLAMP, LH

main53132-39165iRN55..10T..USA198502-198511

VALUE PACKAGE

main53132-39175iRN60,61..SDT,STD198308-198608

main53132-39185iLN6#,RN6#..DLX198308-198608

main53132-39195iRN5#,6#..SR5,SRT198308-198608

main53132-89110iRN55,7#..DLX,SR5,SRT; RN55,75..STD..WT198608-198808

CHROME PLATED

main53132-89111iLN66,RN6#,VZN6#..DLX,SDT,STD198608-198903

main53132-89112iRN6#,VZN6#..SR5,SRT198608-198903

main53132-89113iLN66,RN6#,VZN6#198608-198903

CHROME PLATED

main53132-89114iRN55..XTR198608-198808

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

9016740010

main90167-40010

9018904008

main90189-04008

9046712008

main90467-12008

9356054020

main93560-54020

8 parts on this diagram · 2 diagrams in section
