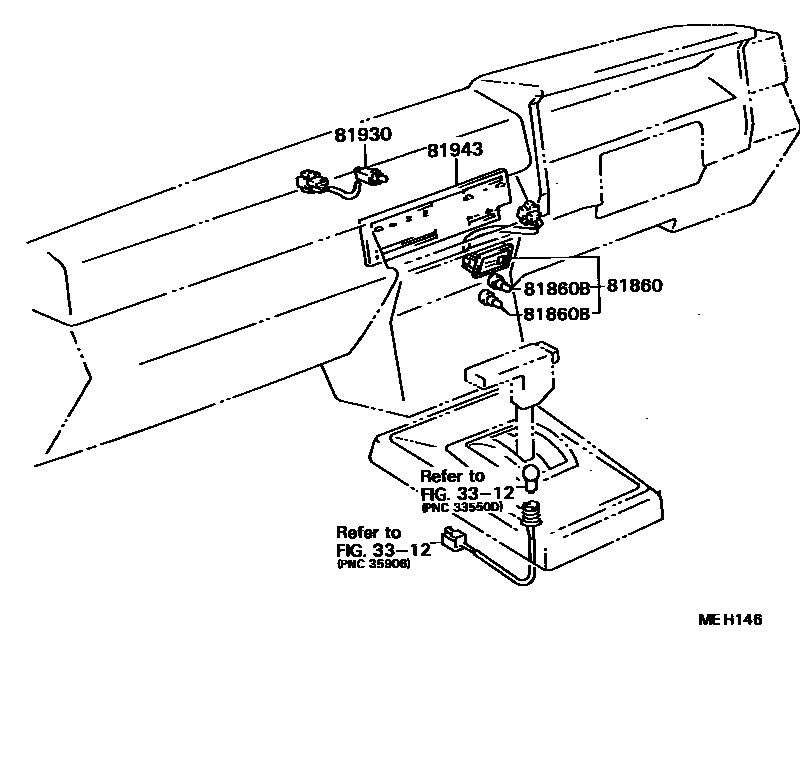

INDICATOR

3312

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-35020iLN56,YN57..4FC198308-198408

OVER DRIVE

main81860-35030iLN56,YN57..4FC198408-198808

OVER DRIVE

main81860-35040iYN63..EFI198608-198903

ECT

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110iLN56,YN57..4FC198308-198808

12V 1.12W,12V 1.12W

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-89115iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

81943LENS, HEATER CONTROL INDICATOR

main55519-89115iLN5#,6#,YN50,55,56,57,63,65,67..RHD198308-198608

W/*HEA

sub55519-89141

main55519-89116iLN5#,65,RN5#,YN5#,6#..LHD198308-198608

W/*HEA

sub55519-89143

main55519-89117iLN5#,65,YN50,55,57,67..RHD..GEN198308-198608

W/BOOST VENTILATOR ONLY

main55519-89118iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

W/BOOST VENTILATOR ONLY

sub55519-89135

main55519-89119iLN5#,6#,YN50,55,57,60,63,65,67..RHD..(ARL,GEN,SA)198308-198608

W/*HEA & CLOCK

sub55519-89115

main55519-89120iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

W/*HEA & CLOCK

sub55519-89116

main55519-89121iLN5#,60,65,YN50,55,57,65,67..RHD..GEN198308-198608

W/BOOST VENTILATOR & CLOCK

main55519-89122iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

W/BOOST VENTILATOR & CLOCK

sub55519-89118

main55519-89124iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198403-198608

W/*HEA,COOLER & CLOCK

sub55519-89116

main55519-89125iYN60..SR5..ME198403-198608

W/*HEA & COOLER,W/O CLOCK

sub55519-89116

main55519-89126iYN57..RHD..GEN;LN5#,6#,YN50,55,65..RHD..STD..GEN198408-198608

W/*HEA,COOLER & CLOCK

sub55519-89115

main55519-89127iLN5#,60,65,YN50,55,57,65,67..RHD..GEN198408-198608

W/*HEA & COOLER,W/O CLOCK

sub55519-89115

main55519-89128iLN5#,6#,YN50,51,55,56,57,58,6#..RHD..(ARL,GEN,SA)198608-198708

W/*HEA & CLOCK

sub55519-89129

main55519-89129iLN56..RHD..STD;LN51,6#,YN50,51,55,56,57,58,6#..RHD198608-198708

W/*HEA

sub55519-89141

main55519-89130iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-198708

W/*HEA & CLOCK

sub55519-89131

main55519-89131iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198608-198708

W/*HEA

sub55519-89143

main55519-89132iLN51,56,65,YN50,55,57,67..RHD..GEN198608-199807

W/BOOST VENTILATOR & CLOCK

main55519-89133iYN57..RHD..GEN;LN51,56,65,YN50,55,67..RHD..STD..GEN198608-199807

W/BOOST VENTILATOR ONLY

main55519-89134iLN51,56,65,RN50,55,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199807

W/BOOST VENTILATOR & CLOCK

sub55519-89135

main55519-89135iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

W/BOOST VENTILATOR ONLY

main55519-89136iLN5#,65,YN50,55,57,67..RHD..GEN198608-198708

W/*HEA,COOLER & CLOCK

main55519-89137iYN57..RHD..GEN;LN5#,65,YN50,55,67..RHD..STD..GEN198608-198708

W/*HEA & COOLER,W/O CLOCK

main55519-89138iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-198708

W/*HEA,COOLER & CLOCK

sub55519-89131

main55519-89139iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-198708

W/*HEA & COOLER,W/O CLOCK

sub55519-89131

main55519-89140iLN5#,6#,YN50,51,55,56,57,58,6#..RHD198708-198710

W/*HEA & CLOCK

sub55519-89141

main55519-89141iRN58..SR5;LN56..RHD..STD;LN51,61,65,RN67,YN50,51,55,56,57,58,6#..RHD198708-199807

W/*HEA

main55519-89142iLN56..DLX;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN;LN51,65,RN5#,YN50,52,55,56,57,6#..LHD198708-198710

W/*HEA & CLOCK

sub55519-89143

main55519-89143iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198708-199201

W/*HEA

main55519-89144iLN5#,65,YN50,55,57,67..RHD..GEN198708-198710

W/*HEA,COOLER & CLOCK

main55519-89145iLN56..RHD..STD..GEN;LN51,65,YN50,55,57,67..RHD..GEN198708-198710

W/*HEA & COOLER,W/O CLOCK

main55519-89146iLN56..DLX;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN;LN51,65,RN5#,YN50,52,55,56,57,6#..LHD198708-198710

W/*HEA,COOLER & CLOCK

sub55519-89143

main55519-89147iLN56..DLX;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN;LN51,65,RN5#,YN50,52,55,56,57,6#..LHD198708-198710

W/*HEA & COOLER,W/O CLOCK

sub55519-89143

5 parts on this diagram · 1 diagram in section
