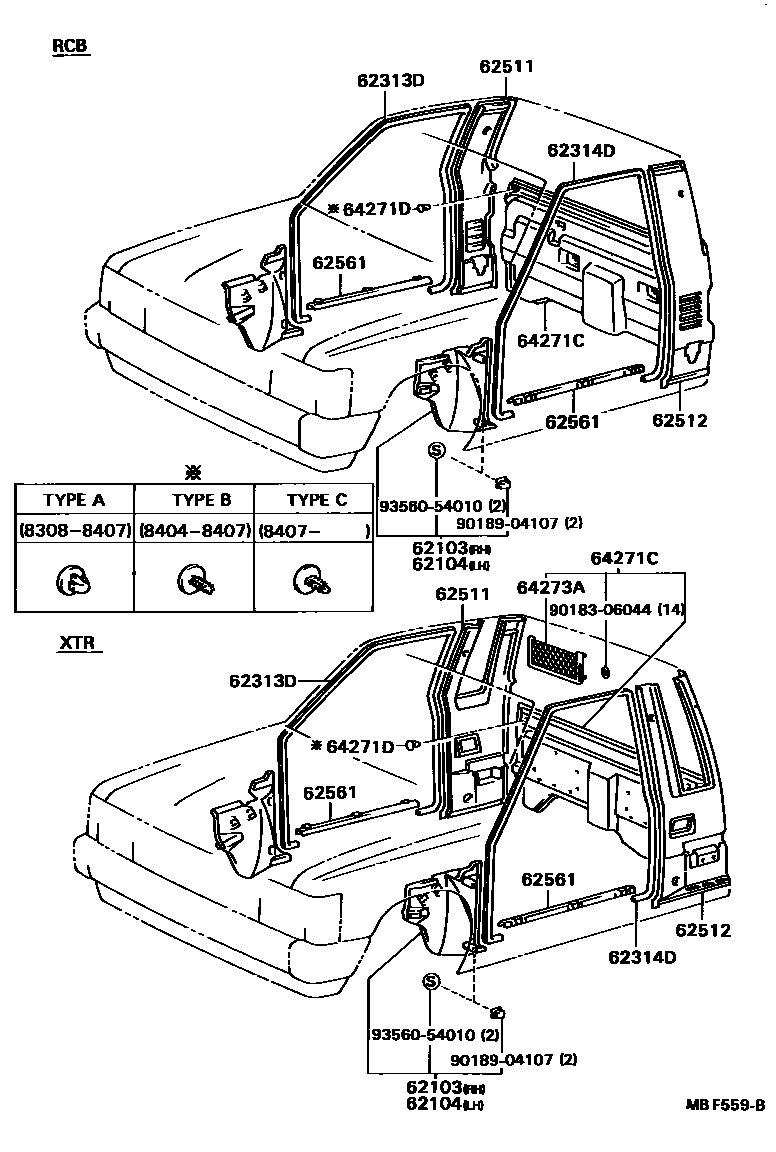

INSIDE TRIM BOARD
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
BEIGE,BEIGE,TRIM4#
sub62101-89104
GRAY,GRAY,TRIM1#
sub62101-89104
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-89104-05iYN58..4F;YN58..SR5,STD;LN51,56,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198608-199807
BEIGE,BEIGE,TRIM4#
sub62102-89104
GRAY,GRAY,TRIM1#
sub62102-89104
BLUE,BLUE,TRIM8#
sub62102-89104
62313DTRIM, FRONT DOOR OPENING, RH
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
62511BOARD, QUARTER INSIDE TRIM, RH
W/*NLR,L-GRAY,GRAY,TRIM1#
W/*NLR,L-BLUE,BLUE,TRIM8#
W/*NLR,L-BROWN,BROWN,TRIM4#
W/*NLR,GRAY,GRAY,TRIM1#
W/*NLR,BLUE,BLUE,TRIM8#
W/*NLR,BROWN,BROWN,TRIM4#
L-GRAY,GRAY,TRIM1#
L-BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
L-BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
W/*ELR,L-GRAY,GRAY,TRIM1#
L-GRAY,GRAY,TRIM1#
W/*ELR,L-BLUE,BLUE,TRIM8#
L-BLUE,BLUE,TRIM8#
W/*ELR,L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
L-GRAY,GRAY,TRIM1#
L-BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
W/*ELR & SPEAKER,L-BROWN,BROWN,TRIM4#
sub62511-89107
W/SPEAKER,L-GRAY,GRAY,TRIM1#
W/SPEAKER,L-BLUE,BLUE,TRIM8#
W/SPEAKER,L-BROWN,BROWN,TRIM4#
L-GRAY,LIGHT GRAY,TRIM1#
W/*ELR,L-GRAY,LIGHT GRAY,TRIM1#
W/*ELR,L-BLUE,LIGHT BLUE,TRIM8#
L-BLUE,LIGHT BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
W/*ELR,BEIGE,BEIGE,TRIM4#
L-BROWN,LIGHT BROWN,TRIM4#
W/*ELR,L-BROWN,LIGHT BROWN,TRIM4#
W/*ELR,GRAY,GRAY,TRIM1#
GRAY,GRAY,TRIM1#
W/*ELR,BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
W/*ELR,BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
W/*ELR,GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
W/*ELR,BLUE,BLUE,TRIM8#
L-GRAY,LIGHT GRAY,TRIM1#
L-BLUE,LIGHT BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
L-BROWN,LIGHT BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
W/*ELR & SPEAKER,L-GRAY,LIGHT GRAY,TRIM1#
sub62511-89124
W/*ELR & SPEAKER,L-BLUE,LIGHT BLUE,TRIM8#
sub62511-89124
W/*ELR & SPEAKER,L-BROWN,LIGHT BROWN,TRIM4#
sub62511-89124
W/SPEAKER,L-GRAY,LIGHT GRAY,TRIM1#
W/SPEAKER,L-BLUE,LIGHT BLUE,TRIM8#
W/SPEAKER,L-BROWN,LIGHT BROWN,TRIM4#
W/SPEAKER,GRAY,GRAY,TRIM1#
W/SPEAKER,BLUE,BLUE,TRIM8#
W/SPEAKER,BROWN,BROWN,TRIM4#
W/*NLR,GRAY,GRAY,TRIM1#
W/*NLR,BLUE,BLUE,TRIM8#
W/*NLR,BEIGE,BEIGE,TRIM4#
62512BOARD, QUARTER INSIDE TRIM, LH
W/*NLR,L-GRAY,GRAY,TRIM1#
W/*NLR,L-BLUE,BLUE,TRIM8#
W/*NLR,L-BROWN,BROWN,TRIM4#
W/*NLR,GRAY,GRAY,TRIM1#
W/*NLR,BLUE,BLUE,TRIM8#
W/*NLR,BROWN,BROWN,TRIM4#
L-GRAY,GRAY,TRIM1#
L-BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
L-BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
L-GRAY,GRAY,TRIM1#
W/*ELR,L-GRAY,GRAY,TRIM1#
L-BLUE,BLUE,TRIM8#
W/*ELR,L-BLUE,BLUE,TRIM8#
W/*ELR,L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
L-GRAY,GRAY,TRIM1#
L-BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
W/*ELR & SPEAKER,L-BROWN,BROWN,TRIM4#
sub62512-89107
W/SPEAKER,L-GRAY,GRAY,TRIM1#
W/SPEAKER,L-BLUE,BLUE,TRIM8#
W/SPEAKER,L-BROWN,BROWN,TRIM4#
L-GRAY,LIGHT GRAY,TRIM1#
W/*ELR,L-GRAY,LIGHT GRAY,TRIM1#
L-BLUE,LIGHT BLUE,TRIM8#
W/*ELR,L-BLUE,LIGHT BLUE,TRIM8#
W/*ELR,BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
L-BROWN,LIGHT BROWN,TRIM4#
W/*ELR,L-BROWN,LIGHT BROWN,TRIM4#
W/*ELR,GRAY,GRAY,TRIM1#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
W/*ELR,BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
W/*ELR,BROWN,BROWN,TRIM4#
W/*ELR,GRAY,GRAY,TRIM1#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
W/*ELR,BLUE,BLUE,TRIM8#
L-GRAY,LIGHT GRAY,TRIM1#
L-BLUE,LIGHT BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
L-BROWN,LIGHT BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
W/*ELR & SPEAKER,L-GRAY,LIGHT GRAY,TRIM1#
sub62512-89124
W/*ELR & SPEAKER,L-BLUE,LIGHT BLUE,TRIM8#
sub62512-89124
W/*ELR & SPEAKER,L-BROWN,LIGHT BROWN,TRIM4#
sub62512-89124
W/SPEAKER,L-GRAY,LIGHT GRAY,TRIM1#
W/SPEAKER,L-BLUE,LIGHT BLUE,TRIM8#
W/SPEAKER,L-BROWN,LIGHT BROWN,TRIM4#
W/SPEAKER,GRAY,GRAY,TRIM1#
W/SPEAKER,BLUE,BLUE,TRIM8#
W/SPEAKER,BROWN,BROWN,TRIM4#
W/*NLR,GRAY,GRAY,TRIM1#
W/*NLR,BLUE,BLUE,TRIM8#
W/*NLR,BEIGE,BEIGE,TRIM4#
62561PROTECTOR, ROCKER PANEL, INNER FRONT
64271CTRIM, BACK PANEL
W/POCKET,LIGHT GRAY,GRAY,TRIM1#,8#
W/POCKET,LIGHT BLUE,BLUE,TRIM8#
W/POCKET,LIGHT BROWN,BROWN,TRIM4#
W/POCKET,LIGHT GRAY,GRAY,TRIM1#,8#
W/POCKET,LIGHT BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
W/POCKET,LIGHT BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
LIGHT GRAY,GRAY,TRIM1#,8#
LIGHT BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LIGHT GRAY,GRAY,TRIM1#,8#
LIGHT GRAY,BLUE,TRIM1#,8#
LIGHT BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
GRAY,BLUE,TRIM1#
GRAY,BROWN,TRIM1#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
64271DCLIP(FOR BACK PANEL TRIM)
W/POCKET,LIGHT GRAY,GRAY,TRIM1#,8#
sub90467-08015
W/POCKET,TYPE B,LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
sub90467-08056
TYPE B,LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
sub90467-08056
W/POCKET,TYPE B,LIGHT BLUE,LIGHT BLUE,TRIM8#
sub90467-08056
TYPE B,LIGHT BROWN,LIGHT BROWN,TRIM4#
sub90467-08056
W/POCKET,TYPE B,LIGHT BROWN,LIGHT BROWN,TRIM4#
sub90467-08056
W/POCKET,TYPE A,LIGHT BLUE,BLUE,TRIM8#
sub90467-10044
W/POCKET,TYPE A,LIGHT BROWN,BROWN,TRIM4#
sub90467-10044
TYPE A,LIGHT GRAY,GRAY,TRIM1#,8#
sub90467-10044
W/POCKET,TYPE A,LIGHT GRAY,GRAY,TRIM1#,8#
sub90467-10044
64273APOCKET, BACK PANEL TRIM
LIGHT GRAY,GRAY,TRIM1#,8#
LIGHT BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
9018306044
main90183-06044
9018904107
main90189-04107
9356054010
main93560-54010
13 parts on this diagram · 3 diagrams in section
