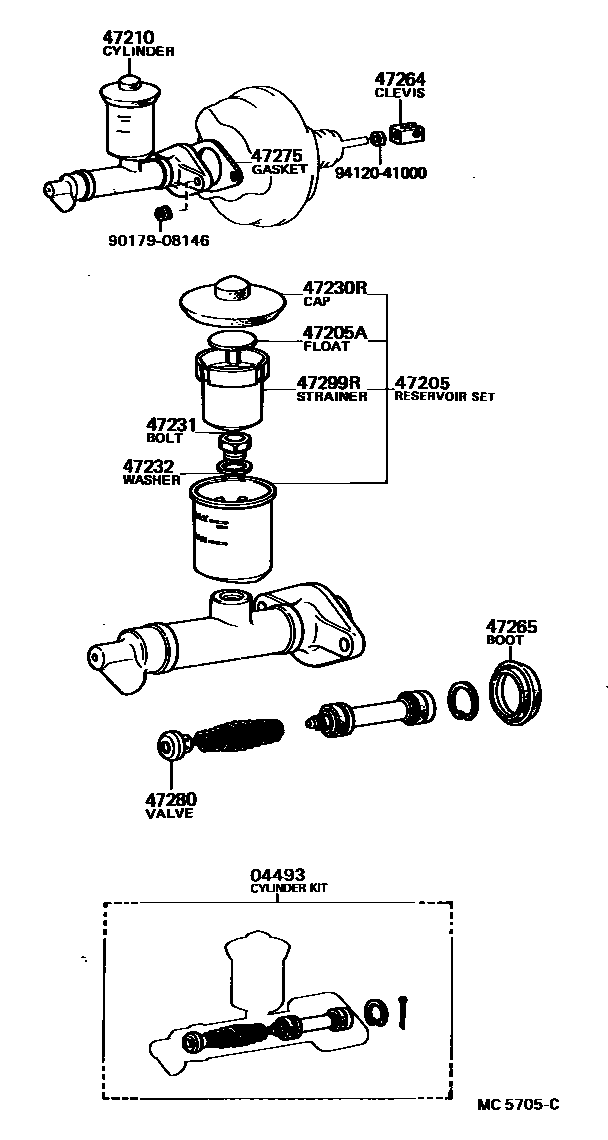

BRAKE MASTER CYLINDER

0001 1 0003 1 0005 1

04493CYLINDER KIT, BRAKE MASTER

main04471-26020iLN50,55,YN50,55,57..GEN198308-198608

SINGLE MASTER

main04493-35100iLN50,55,YN50,52,55,57..GEN,ME198308-199201

FR DRUM,TANDEM MASTER

main04493-35110iYN57..SR5..ARL198308-198708

main04493-35130iLN6#,YN6#198308-198408

FR DISC

main04493-35150iLN5#,YN50,51,52,55,56,58198308-198808

FR DISC

main04493-35150iLN5#,YN5#198808-199807

main04493-35170iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-199201

FR DRUM

main04493-35190iLN6#,YN6#198408-199807

FR DISC

sub04493-35200

main04493-35200iLN61,RN61198608-198903

main04493-35240iRN5#198601-198808

main04493-35310iRN67199407-199807

main04493-35320iRN58..SR5199407-199807

sub04493-25060

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-14270iYN57..SR5..GEN198308-198808

W/LEVEL WARNING

main47202-14270iLN5#,YN5#198808-199807

main47202-20121iLN50,55,YN50,55,57..GEN198308-198608

SINGLE M/C

main47202-35050iLN5#,YN50,52,55,57..GEN,ME198308-199201

W/O LEVEL WARNING,TANDEM M/C

main47202-35060iYN57..SR5..ARL198308-199807

W/LEVEL WARNING

main47202-35060iYN65..5F..GEN198407-198508

*SA,W/LEVEL WARNING

main47202-35070iLN60,65,YN6#..GEN,ME198308-199201

W/O LEVEL WARNING

main47202-35180iRN5#198601-198605

sub47202-35181

main47202-35181iRN5#198605-198808

main47202-35190iRN61198712-198903

main47202-35220iRN67;RN58..SR5199407-199807

47205AFLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE)

main31426-20010iLN50,55,60,65,YN50,52,55,57,6#..GEN,ME198308-199201

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-35110iLN5#,YN50,55,57..GEN198308-198608

SINGLE M/C

main47201-35300iYN50,52,55,57..ME198308-198508

FR DRUM,W/LEVEL WARNING

main47201-35310iLN5#,YN50,55,57..GEN198308-199201

FR DRUM,TANDEM,W/O WARNING

main47201-35320iYN57..SR5..ARL198308-198508

main47201-35340iLN6#,YN6#..ARL,EUR,ME,SA198308-198408

FR DISC,W/LEVEL WARNING

sub47201-35450

main47201-35340iYN65..5F..GEN198407-198408

*SA,FR DISC,W/LEVEL WARNING

sub47201-35450

main47201-35350iLN6#,YN6#..GEN,ME198308-198408

FR DISC,W/O LEVEL WARNING

sub47201-35460

main47201-35370iYN57..SR5..GEN198308-198808

FR DISC,W/LEVEL WARNING

main47201-35370iLN5#,YN5#198808-199807

main47201-35380iLN5#,YN50,52,55,57..GEN,ME198308-198608

FR DISC,W/O LEVEL WARNING

main47201-35400iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-199201

FR DRUM,W/O LEVEL WARNING

main47201-35420iYN6#..DLX198308-198508

FR DRUM,W/LEVEL WARNING

main47201-35440iLN61198608-198903

main47201-35450iLN6#,YN6#198408-199807

FR DISC,W/LEVEL WARNING

main47201-35450iYN65..5F..GEN198408-198508

*SA,FR DISC,W/LEVEL WARNING

main47201-35460iLN60,65,YN6#..GEN,ME198408-198608

FR DISC,W/O LEVEL WARNING

main47201-35530iYN57..SR5..ARL198508-198708

main47201-35550iRN5#198601-198605

sub47201-35551

main47201-35551iRN5#198605-198808

main47201-35610iRN61198712-198903

main47201-3D050iRN58..SR5199407-199807

main47201-3D260iRN67199407-199807

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main47230-20030iLN50,55,6#,YN50,52,55,57,6#..GEN,ME198308-199201

W/O LEVEL WARNING,TANDEM M/C

main47230-20040iLN5#,YN50,55,57..GEN198308-198608

SINGLE M/C

main84460-12011iYN65..5F..GEN198407-198508

*SA,W/LEVEL WARNING

main84460-12011iLN5#,6#,RN5#,61,YN5#,6#198308-199407

W/LEVEL WARNING

main84460-12011iLN5#,6#,YN5#199407-199807

main84460-35040iRN67;RN58..SR5199407-199807

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iRN5#,61198601-199407

main47231-30010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLN5#,6#,RN5#,61,YN5#,6#198308-199308

main47264-28010iRN67,YN67;LN51,56,65,RN58,YN5#..RCB199308-199807

47265BOOT, MASTER CYLINDER

main47265-20050iRN58..SR5199407-199807

main47265-20050iLN50,51,55,56,60,61,65,RN6#,YN5#,6#198308-199807

TANDEM MASTER

main47265-35030iRN5#198601-198808

main47265-35030iLN50,55,YN50,55,57..GEN198308-198608

SINGLE MASTER

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iLN50,55,YN50,55,57..GEN198308-198608

SINGLE MASTER

sub47275-26010

main47275-22010iLN61198308-198903

main47275-24010iLN5#,6#,RN5#,YN50,52,55,56,6#198308-198808

TANDEM MASTER

main47275-24010iLN5#,6#,RN58,6#,YN5#,6#198808-199807

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-14010iLN61,RN61198608-198903

main47280-26020iLN50,55,YN50,55,57..RHD..GEN198308-198608

SINGLE MASTER

main47280-30030iLN5#,6#,YN5#,6#198308-199807

FR DISC BRAKE

sub47280-14010

main47281-30020iLN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)198308-199201

FR DRUM,TANDEM MASTER

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iLN5#,6#,RN5#,61,YN5#,6#198308-199407

TANDEM MASTER

main47299-14010iLN5#,6#,YN5#199407-199807

main47299-20020iLN50,55,YN50,55,57..GEN198308-198608

SINGLE MASTER

main47299-32010iRN67;RN58..SR5199407-199807

9017908146

main90179-08146

9412041000

main94120-41000
