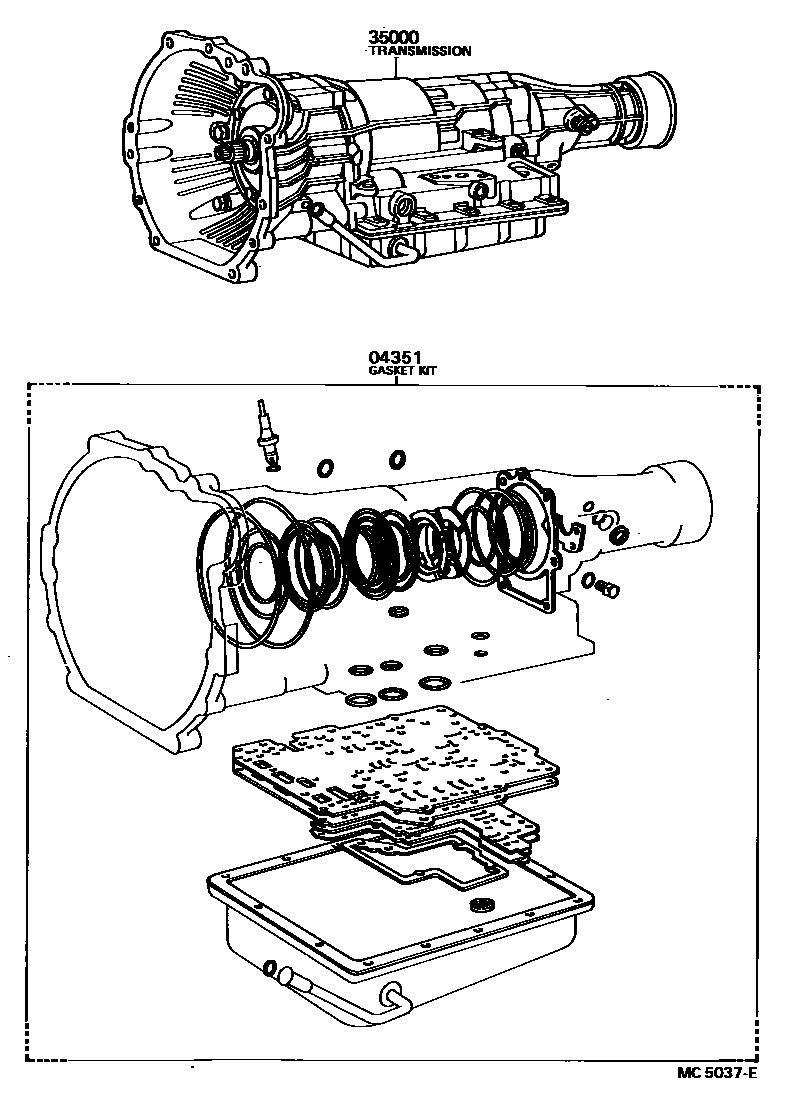

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1 0002 1

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30073iLN56,YN57..4FC198308-198408

main04351-30074iLN56,YN57..4FC198408-198409

main04351-30075iLN56,YN57..4FC198409-198608

main04351-30110iLN56,YN57,58..4FC198608-198808

main04351-35021iYN63..EFI198608-198610

main04351-35022iYN63..EFI198610-198903

35000TRANSMISSION ASSY, AUTOMATIC

main35000-35190iLN56..4FC198308-198808

main35000-35200iYN57..4FC..SR5198308-198408

main35000-35240iYN57,58..4FC..STD198308-198808

SMG R=18:5

main35000-35250iYN57,58..4FC..SR5; YN57,58..4FC..STD198408-198808

W/6.50-14 TIRE,SMG R=17:5

main35000-35320iYN63..EFI198608-198708

main35000-35321iYN63..EFI198708-198903

2 parts on this diagram · 2 diagrams in section
