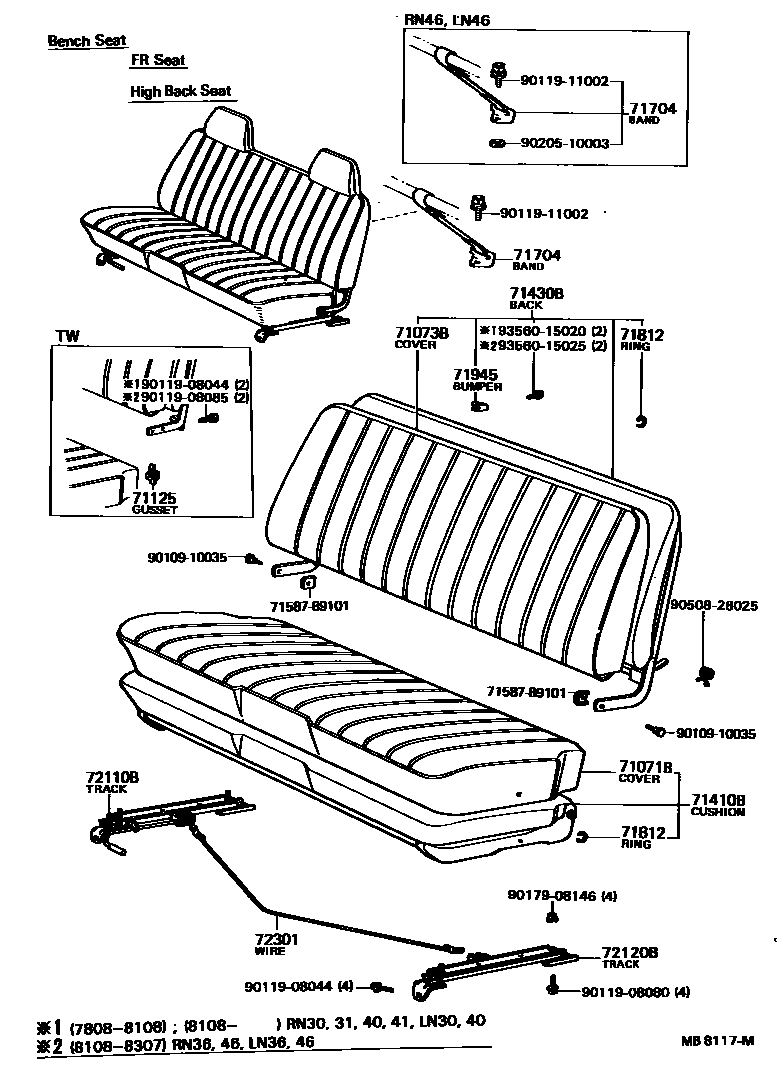

SEAT & SEAT TRACK
71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)
71125GUSSET, FRONT SEAT CUSHION FRAME
71410BCUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)
71430BBACK ASSY, FRONT SEAT(FOR BENCH TYPE)
71812CLIP (FOR FRONT SEAT CUSHION COVER)
71945BUMPER, SEATBACK
72110BTRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)
72120BTRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)
72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING
7158789101PROTECTOR, FRONT SEATBACK EDGE
main71587-89101
9010910035
main90109-10035
9011908044
main90119-08044
9011908080
main90119-08080
9011908085
main90119-08085
9011911002
main90119-11002
9017908146
main90179-08146
9020510003
main90205-10003
9050826025
main90508-26025
9356015020
main93560-15020
9356015025
main93560-15025
22 parts on this diagram · 5 diagrams in section
