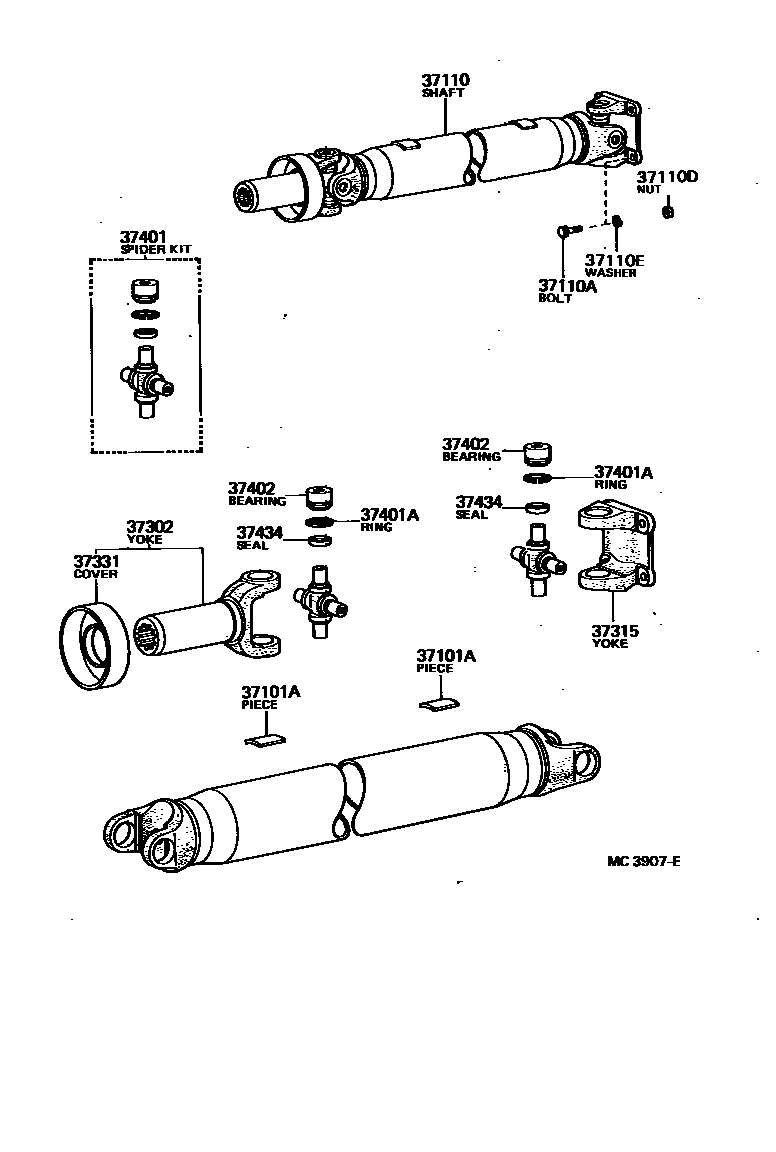

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01003iLN30,40,RN30,31,40,41197808-198403

8G,T=1.2,10G,SPOT

sub90937-01132

main90937-01004iLN30,40,RN30,31,40,41197808-198403

20G,T=1.2,20G,SPOT

main90937-01005iLN30,40,RN30,31,40,41197808-198403

30G,T=1.2,30G,SPOT

main90937-01029iLN30,40,RN30,31,40,41197808-198403

5G,SPOT

main90937-01030iLN30,40,RN30,31,40,41197808-198403

15G,SPOT

main90937-01031iLN30,40,RN30,31,40,41197808-198403

25G,SPOT

main90937-01132iLN30,40,RN30,31,40,41197808-198403

10G,L=20.7,10G,PROJECTION

main90937-01132iLN36,46,RN36,46197901-198307

10G,L=20.7,10G

main90937-01136iLN30,40,RN30,31,40,41197808-198403

20G,L=41.4,20G,PROJECTION

main90937-01136iLN36,46,RN36,46197901-198307

20G,L=41.4,20G

main90937-01140iLN30,40,RN30,31,40,41197808-198403

30G,L=62.2,30G,PROJECTION

main90937-01147iLN30,40,RN30,31,40,41197808-198403

2G,T=2.0,2G,PROJECTION

main90937-01147iLN36,46,RN36,46197901-198307

2G,T=2.0,2G

main90937-01148iLN36,46,RN36,46197901-198307

4G,T=2.0,4G

main90937-01148iLN30,40,RN30,31,40,41197808-198403

4G,T=2.0,4G,PROJECTION

main90937-01149iLN30,40,RN30,31,40,41197808-198403

6G,L=12.4,6G,PROJECTION

main90937-01149iLN36,46,RN36,46197901-198307

6G,L=12.4,6G

main90937-01150iLN36,46,RN36,46197901-198307

8G,L=16.6,8G

main90937-01150iLN30,40,RN30,31,40,41197808-198403

8G,L=16.6,8G,PROJECTION

main90937-01151iLN36,46,RN36,46197901-198307

12G,L=24.9,12G

main90937-01151iLN30,40,RN30,31,40,41197808-198403

12G,L=24.9,12G,PROJECTION

main90937-01152iLN36,46,RN36,46197901-198307

14G,L=29.0,14G

main90937-01152iLN30,40,RN30,31,40,41197808-198403

14G,L=29.0,14G,PROJECTION

main90937-01153iLN36,46,RN36,46197901-198307

16G,L=33.2,16G

main90937-01153iLN30,40,RN30,31,40,41197808-198403

16G,L=33.2,16G,PROJECTION

main90937-01154iLN30,40,RN30,31,40,41197808-198403

18G,L=37.3,18G,PROJECTION

main90937-01154iLN36,46,RN36,46197901-198307

18G,L=37.3,18G

main90937-01155iLN30,40,RN30,31,40,41197808-198403

22G,L=45.6,22G,PROJECTION

main90937-01155iLN36,46,RN36,46197901-198307

22G,L=45.6,22G

main90937-01156iLN36,46,RN36,46197901-198307

24G,L=49.7,24G

main90937-01156iLN30,40,RN30,31,40,41197808-198403

24G,L=49.7,24G,PROJECTION

main90937-01157iLN36,46,RN36,46197901-198307

26G,L=53.9,26G

main90937-01157iLN30,40,RN30,31,40,41197808-198403

26G,L=53.9,26G,PROJECTION

main90937-01158iLN36,46,RN36,46197901-198307

28G,L=58.1,28G

main90937-01158iLN30,40,RN30,31,40,41197808-198403

28G,L=58.1,28G,PROJECTION

main90937-01184iLN36,46,RN36,46197901-198307

4G,T=1.6,4G,FR PROPELLER SHAFT

main90937-01191iLN36,46,RN36,46197901-198307

8G,T=1.6,8G,FR PROPELLER SHAFT

main90937-01192iLN36,46,RN36,46197901-198307

12G,T=4.5,12G,FR PROPELLER SHAFT

main90937-01193iLN36,46,RN36,46197901-198307

16G,T=4.5,16G,FR PROPELLER SHAFT

main90937-01194iLN36,46,RN36,46197901-198307

20G,T=4.5,20G,FR PROPELLER SHAFT

main90937-01198iLN36,46,RN36,46197901-198307

24G,T=4.5,L=25.1,24G,FR PROPELLER SHAFT

main90937-01199iLN36,46,RN36,46197901-198307

28G,T=6,L=22.7,28G,FR PROPELLER SHAFT

main90937-01200iLN36,46,RN36,46197901-198307

32G,T=6,L=24.3,32G,FR PROPELLER SHAFT

main90937-01201iLN36,46,RN36,46197901-198307

30G,T=4.5,L=27.4,30G

main90937-01202iLN36,46,RN36,46197901-198307

32G,T=4.5,L=29.2,32G,FR PROPELLER SHAFT

main90937-01203iLN36,46,RN36,46197901-198307

34G,T=4.5,L=31.0,34G,FR PROPELLER SHAFT

main90937-01204iLN36,46,RN36,46197901-198307

36G,T=4.5,L=32.9,36G,FR PROPELLER SHAFT

main90937-01205iLN36,46,RN36,46197901-198307

38G,T=4.5,L=34.7,38G,FR PROPELLER SHAFT

main90937-01206iLN36,46,RN36,46197901-198307

40G,T=4.5,L=36.5,40G,FR PROPELLER SHAFT

main90937-01207iLN36,46,RN36,46197901-198307

42G,T=4.5,L=38.4,42G,FR PROPELLER SHAFT

main90937-01208iLN36,46,RN36,46197901-198307

44G,T=4.5,L=40.2,44G,FR PROPELLER SHAFT

main90937-01209iLN36,46,RN36,46197901-198307

46G,T=4.5,L=42.0,46G,FR PROPELLER SHAFT

main90937-01210iLN36,46,RN36,46197901-198307

48G,T=4.5,L=43.8,48G,FR PROPELLER SHAFT

main90937-01211iLN36,46,RN36,46197901-198307

50G,T=4.5,L=45.7,50G,FR PROPELLER SHAFT

37110SHAFT ASSY, PROPELLER

main37110-35051iRN3#197808-197808

sub37110-35052

main37110-35052iLN30,RN30,31197808-198307

main37110-35110iLN40,RN40,41197808-198307

main37110-35161iRN36197901-197908

main37110-35162iLN36,RN36197908-198307

main37110-35171iRN46..EUR,GEN;RN46..ARL..IV3197901-197908

sub37110-35190

main37110-35172iLN46,RN46197908-198108

sub37110-35173

main37110-35173iLN46,RN46198108-198307

main37110-35270iLN30198308-198403

main37110-35280iLN40,RN4#198308-198403

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08039iLN30,40,RN30,31,40,41197908-198103

main90101-08062iLN30,40,RN30,31,40,41198103-198304

main90101-08082iLN36,46,RN36,46198304-198307

*8-1.25PX25-12

main90101-08214iRN30,31,40,41197808-197908

*8-1.25PX25-12

sub90101-08262

main90101-09001iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197908

main90105-10085iLN30,40,RN30,4#198308-198403

*10-1.00PX27-13

37110DNUT (FOR PROPELLER SHAFT)

main90170-08007iRN30,31,40,41197808-198304

main90170-08015iLN3#,4#,RN3#,4#198304-198307

main90170-09190iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197908

main90179-10059iLN30,40,RN30,4#198308-198402

main94110-50800iLN30,40,RN30,31,40,41197908-198304

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iLN30,40,RN30,4#198308-198402

sub90560-10H00

main90206-09052iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197908

main94512-00800iLN30,40,RN30,31,40,41197808-198307

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-35010iLN30,40,RN30,31,40,41197808-198403

main37302-35021iLN36,46,RN36,46197901-198307

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-30010iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197908

main37315-30011iLN36,46,RN36,46197908-198307

main37315-35021iLN30,40,RN30,31,40,41197808-198307

main37315-35050iLN30,40,RN30,4#198308-198403

37331COVER, SLIDING SHAFT DUST

main37305-35020iLN36,46,RN36,46197901-198307

main37331-30010iLN30,40,RN30,31,40,41197808-198403

37401SPIDER KIT, UNIVERSAL JOINT

main04371-25010iLN30,40,RN30,31,40,41197808-198403

main04371-30011iRN3#,4#197808-197808

sub04371-25010

main04371-35020iLN36,46,RN36,46197901-198307

sub04371-35021

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-26233iLN36,46,RN36,46197901-198307

T=1.50,OD=32.4,T=1.50

main90520-26234iLN36,46,RN36,46197901-198307

T=1.55,T=1.55

main90520-26235iLN36,46,RN36,46197901-198307

T=1.60,T=1.60

main90521-27001iRN3#,4#197808-197808

T=1.20

sub90521-27002

main90521-27002iRN3#,4#197808-197808

T=1.25

main90521-27003iRN3#,4#197808-197808

T=1.30

sub90521-27004

main90521-27004iRN3#,4#197808-197808

T=1.35

main90521-29070iLN30,40,RN30,31,40,41197808-198403

T=2.375-2.425,T=2.40

main90521-29071iLN30,40,RN30,31,40,41197808-198403

T=2.425-2.475,T=2.45

main90521-29072iLN30,40,RN30,31,40,41197808-198403

T=2.475-2.525,T=2.50

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-25020iLN30,40,RN30,31,40,41197808-198403

main37402-30020iLN36,46,RN36,46197901-198307

sub37402-30021

sub90520-26044

main37402-35031iRN3#,4#197808-197808

37434SEAL, UNIVERSAL JOINT SPIDER BEARING

main37343-25010iRN3#,4#197808-197808

main37434-25010iLN30,40,RN30,31,40,41197808-198403

12 parts on this diagram · 3 diagrams in section
